rEaD aLL ThE STEPS BEFOrE STarTING ThE CONVErSION.

INSTaLLEr NOTICE: ThESE INSTruCTIONS MuST BE LEFT wITh

ThE aPPLIaNCE.
This kit contains components required to convert this appliance

from using Propane Gas to using Natural Gas as the only fuel.

all of these components must be replaced in order for the unit to

operate safely on Natural Gas.
when installing gas components use pipe joint compound or

Teflon tape on all pipe fittings before installing (ensure propane

resistant compounds are used, do not use pipe joint compounds

on flare fittings).

INSTaLLaTION INSTruCTIONS

TurN OFF ThE GaS SuPPLy TO ThE aPPLIaNCE.

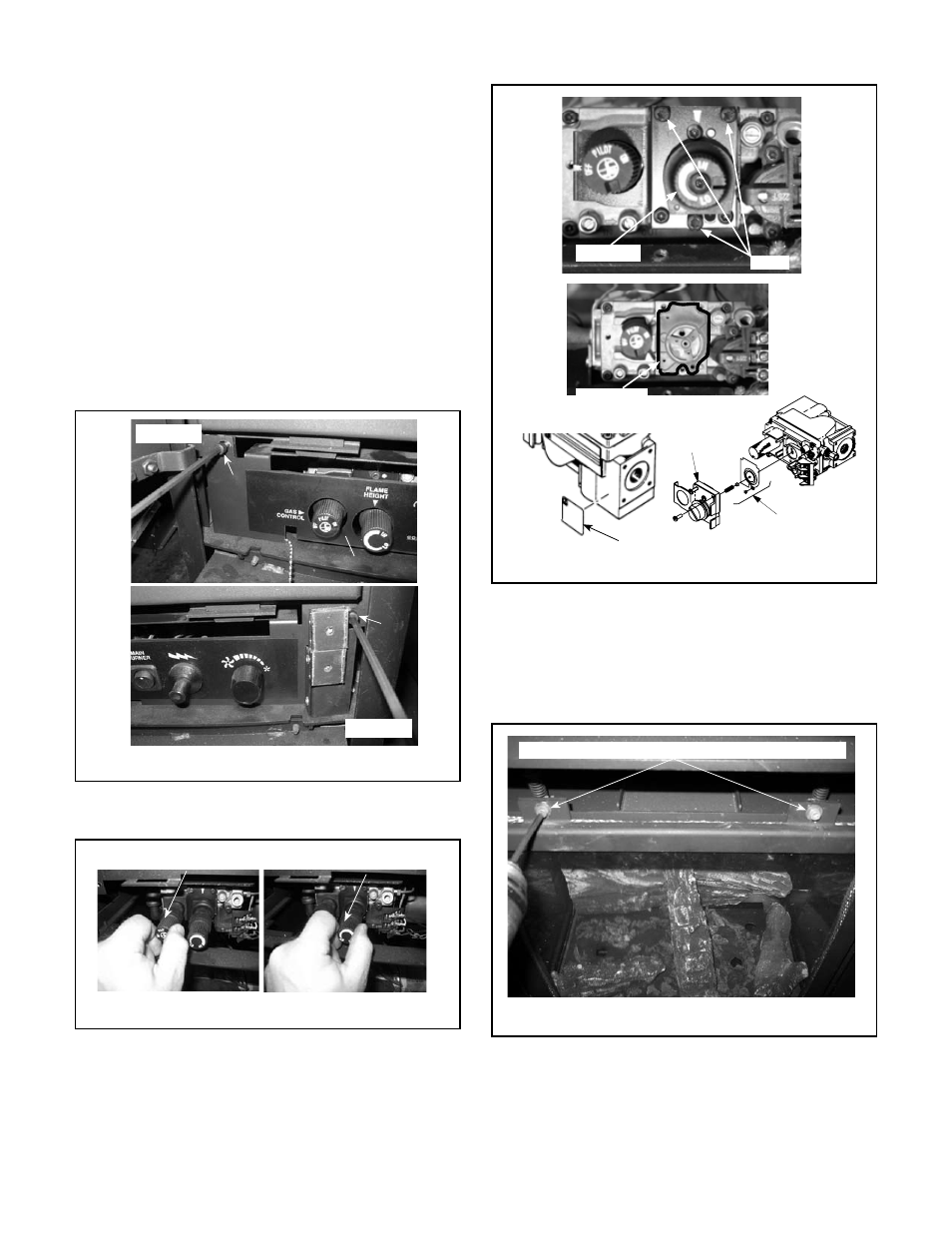

Step 1. Using a 5/32” allen wrench, remove the control panel cover by

removing the 10-24 screws on the left and right side of the control

panel (indicated by arrows in Figure 3). Do not disconnect any

wires during this step.

Figure 6 - Glass Door Removal

Step 3. Using a T20 Torx Bit or flat screwdriver, install the Nova SIT NG

Regulator (included in this kit) using the 3 new screws provided

as shown in Figure 5.

Diaphragm

Screws

regulator

Pressure

regulator

remove

These

Components

Figure 5

Fill out & affix label from

regulator kit to valve

Step 4. Replace the knob extensions on the gas control valve (see Figure

4). Reinstall the control board panel using the two 10-24 screws

removed during Step 1 (see Figure 3).

Step 5. Using a 5/32” allen wrench, remove the two screws at the top of

the glass door. Lift glass door up and off (see Figure 6). (Note:

Screws are straight thread not self-tapping).

Step 2. Pull off the knob extensions on the valve (see Figure 4).

remove 2 screws at top of glass door, then lift door up and off

allen head

Screw

Control Panel

Figure 3 - Remove Control Panel

Left Side

Right Side

allen head

Screw

Pilot/On/Off Extension Knob

hi / Lo Extension Knob

Figure 4 - Pull off Extension Knobs

NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE.

Step 6. Remove logs.

Step 7. Using a 5/32” allen wrench, remove the two 10-24 screws at the

back corners of burner (see Figure 7).

Glass Door
