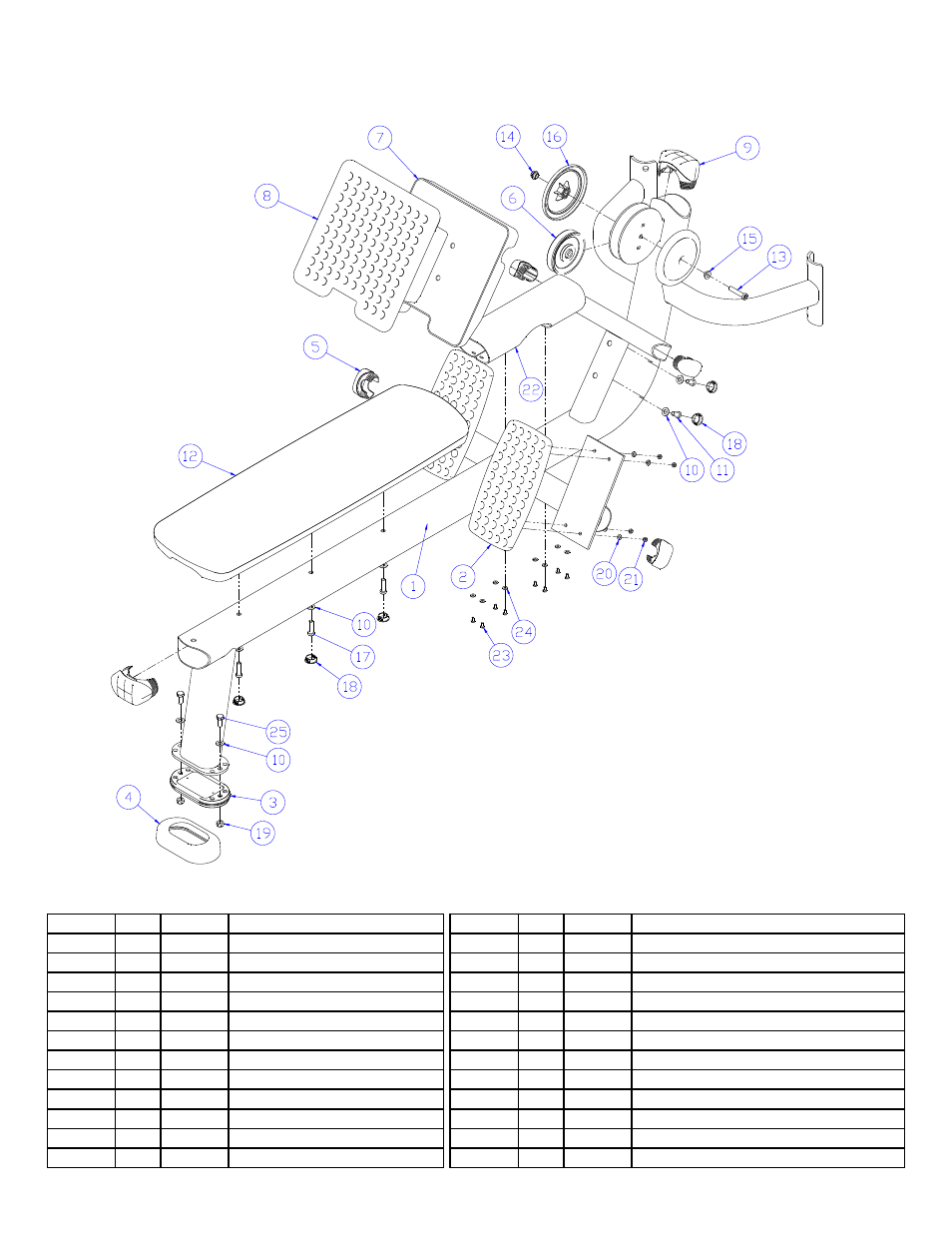

MJRW BENCH ASSEMBLY - 7639901

________________________________________

MJRW LOW ROW

ITEM NO

QTY

PART NO DESCRIPTION

13

1

3236207 SCREW, M10 X1.5 50MM

1

1

7629701 WLDMT, MJRW BENCH

14

1

7335401 NUT, M10 X 1.5 SOCKET HEAD

2

2

7640301 FOOT PAD, CM/MJ, OVERMOLD

15

1

7630101 RETAINER, CM/MJ, PULLEY

3

1

7334001 FOOT, 2.50 X 4.49 FLOV

16

2

7629901 COVER, PULLEY- BOLTED FULL

4

1

7419701 COVER, FOOT 10 DEG

17

3

3236204 SCREW, M10 X1.5 35MM

5

4

7333801 CAP, SMALL FLOV- END

18

5

3237403 PLUG, 1" HOLE

6

1

3237801 PULLEY, 4.5" OD

19

2

3236801 NUT, M10 HEX NYLOCK SS

7

1

7438201 COVER,FZSLP-STEP

20

8

3241801 WASHER, FLAT 6MM SS

8

1

7438301 STEP PLATE,FZSLP- OVERMOLDED

21

8

3236802 NUT, M6 HEX NYLOCK SS

9

2

7333901 CAP, LARGE FLOV- END

22

1

7713601 COVER, PROTECTIVE

10

7

3236601 WASHER, 3/8 SAE SS

23

8

3239101 SCREW, M5X10 PHL PAN TT ST

11

2

3236201 SCREW, M10 X1.5 20MM

24

8

3248101 WSH 10 FL-D ST ZN

12

1

7627101 PAD 36.0 X 11 CONVEX

25

2

3251202

SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN
