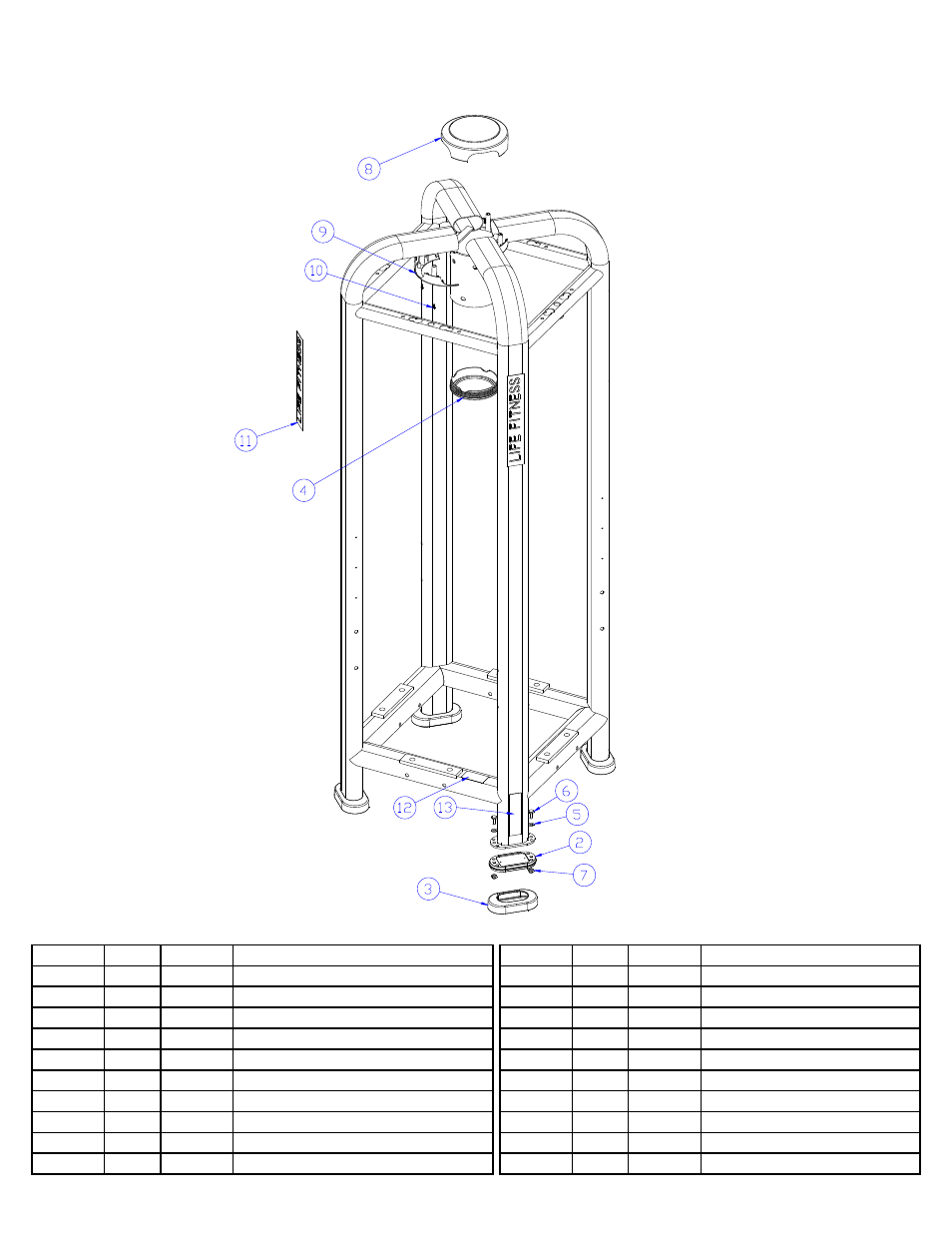

MJCORE ASSEMBLY

________________________________________

Page 3

ITEM NO

QTY

PART NO DESCRIPTION

ITEM NO

QTY

PART NO DESCRIPTION

1

1

7628601 WLDMT, MJCORE

11

4

7348001 LABEL, LIFE FITNESS LOGO

2

4

7334001 FOOT, 2.50 X 4.49 FLOV

12

1

7571301 LABEL, SERIAL NUMBER

3

4

7340201 COVER, FOOT - STRAIGHT

13

1

7422004 LABEL, 2" ASTM WARN

4

1

7640401 COVER, BOTTOM CAP

14

8

3237403 PLUG, 1" HOLE

5

28

3236601 WASHER, 3/8 SAE SS

15

4

7642301 BUMPER, CM/MJ, PLUG

6

8

3251202

SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN

16

20

3236201 SCREW, M10 X1.5 20MM

7

28

3236801 NUT, M10 HEX NYLOCK SS

17

16

3236220 SCREW, M10 X1.5 130MM

8

1

7629201 COVER, CENTER TOP

18

16

7630101 RETAINER, CM/MJ, PULLEY

9

2

7629801 COVER, CENTER BOTTOM

19

16

7335401 NUT, M10 X 1.5 SOCKET HEAD

10

4

3236501 M4 X 0.7 PHL PAN MS ST ZN

20

16

7634701 SPACER, CM/MJ, .565 X .815

MJRW LOW ROW
