Advanced Configuration
81

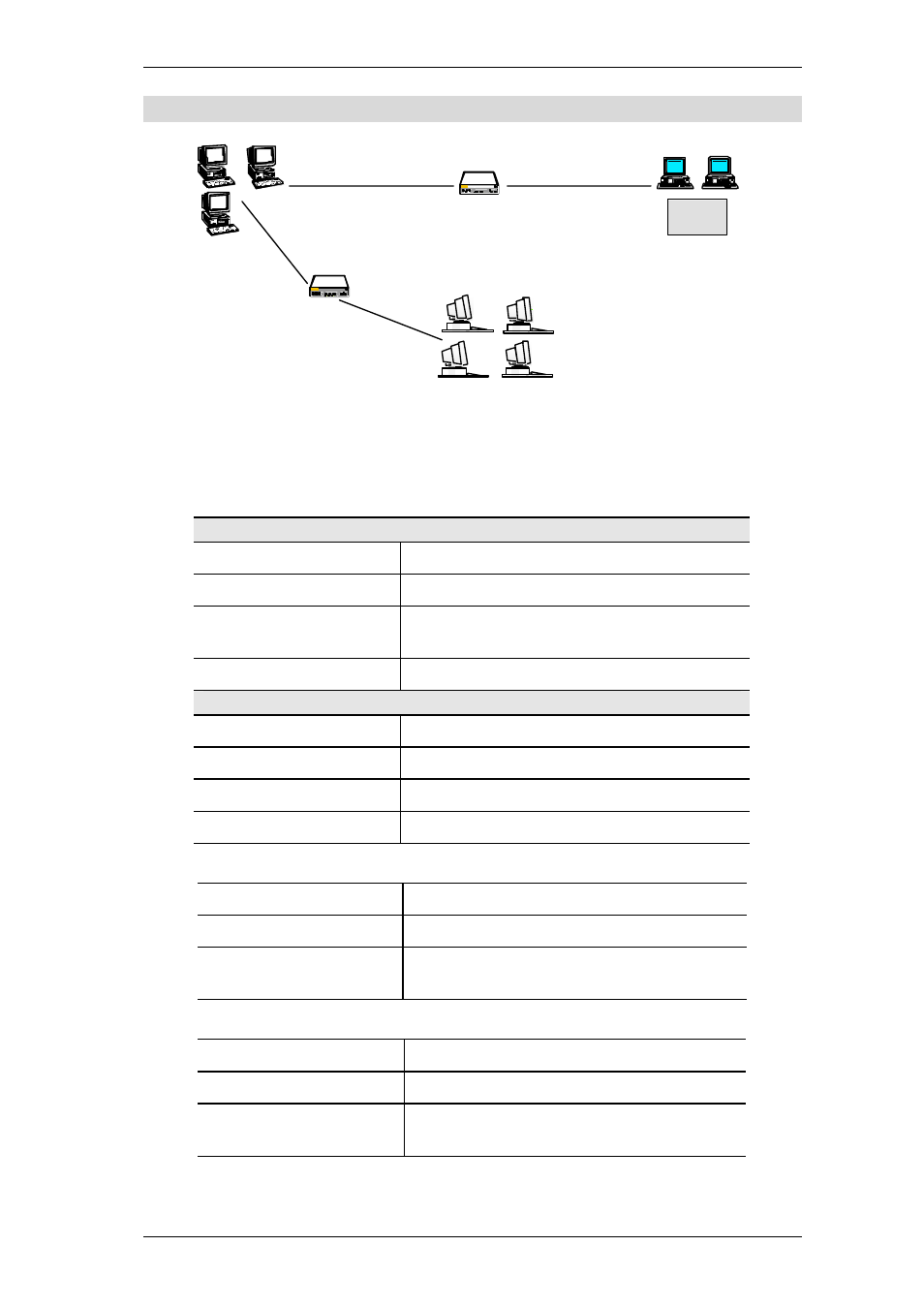

Static Routing - Example
Router B
(192.168.1.90) (192.168.2.70)
Router A
Segment 0
Segment 2
Segment 1
Wireless
(192.168.0.xx)
(192.168.1.xx)
(192.168.0.100)
(192.168.0.1)
(192.168.2.xx)
(192.168.1.80)
Router
Figure 46: Routing Example
For the LevelOne Broadband Router's Routing Table
For the LAN shown above, with 2 routers and 3 LAN segments, the LevelOne Broadband
Router requires 2 entries as follows.
Entry 1 (Segment 1)
Destination IP Address 192.168.1.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100 (LevelOne Broadband Router's
local Router)
Metric 1
Entry 2 (Segment 2)
Destination IP Address 192.168.2.0
Network Mask 255.255.255.0 (Standard Class C)
Gateway IP Address 192.168.0.100
Metric 2
For Router A's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.0.1 (LevelOne Broadband Router's IP
Address)
For Router B's Default Route
Destination IP Address 0.0.0.0
Network Mask 0.0.0.0
Gateway IP Address 192.168.1.80 (LevelOne Broadband Router's
local router)
