20

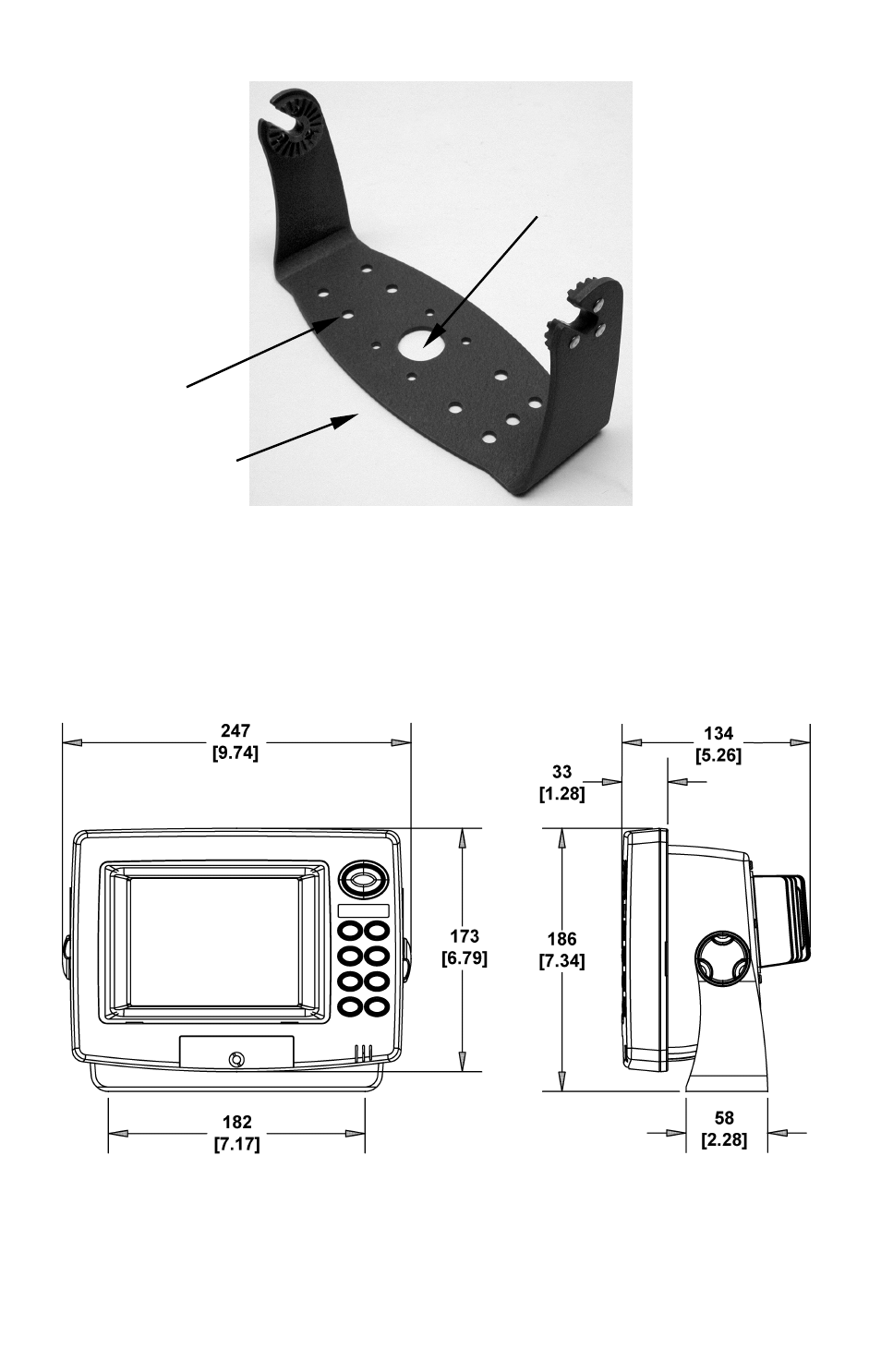

Install the gimbal bracket. Place the bracket so the arms slope toward
the front of your unit.
Once a location is determined, use the bracket as a template and mark
the mounting holes and the hole for the cables. Drill a 1-inch (25.4 mm)
hole in the dash for the power, transducer and antenna cables. Screw
the bracket to the mounting surface.
Front view (left) and side view (right) showing dimensions of the
GlobalMap 6500 and GlobalMap 6600 mounted on gimbal brackets.
Front
Screw
mounting
hole
Cable hole
Millimeter
[Inch]
