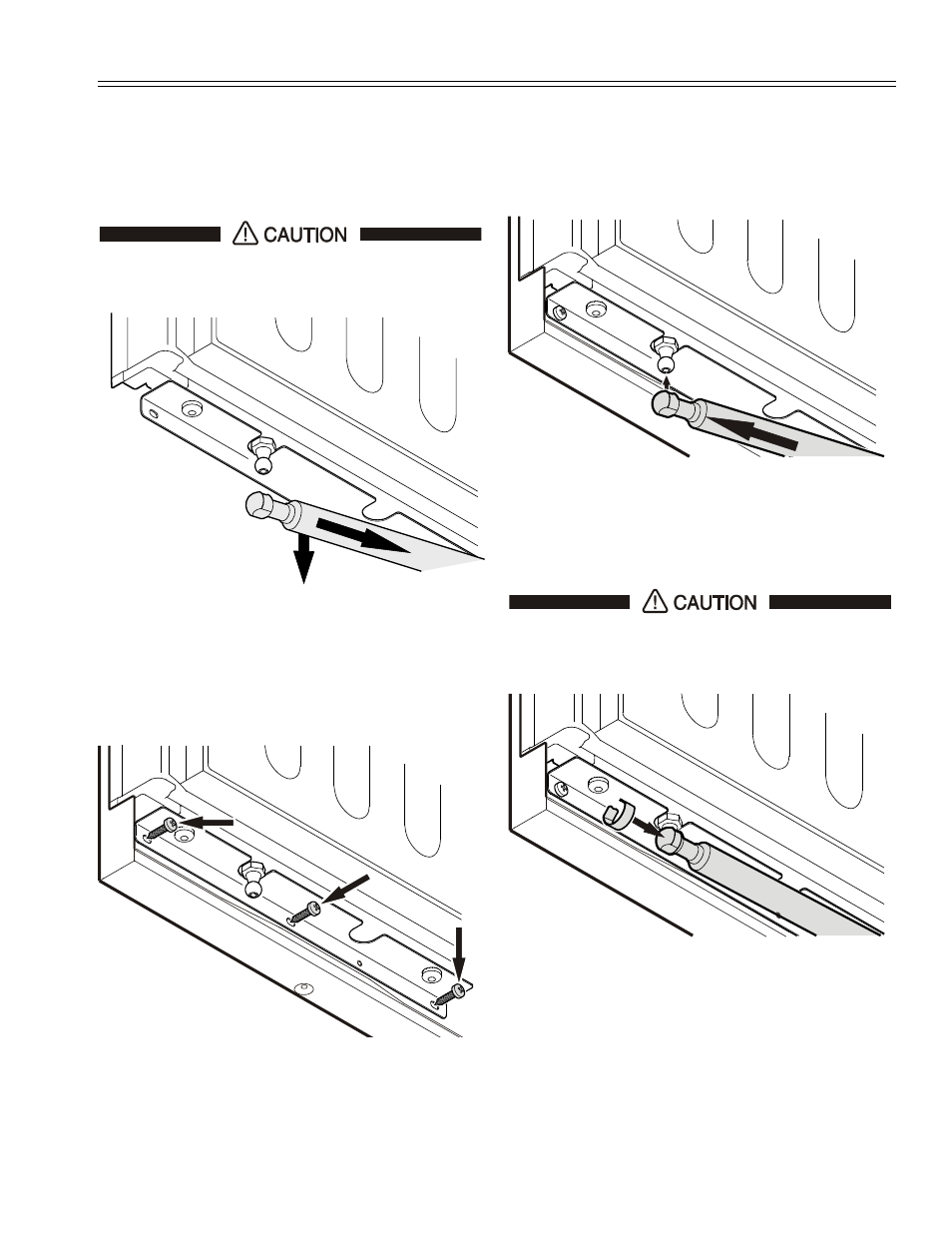

9. Grasp the soft-stop cylinder and pull down
Figure 25.
The soft-stop cylinder retracts in the
detached state.
Figure 25
Figure 26
10. Fasten the refrigerator panel with three screws
(4 x 16 mm) at the bottom Figure 26.
Figure 28
11. Extend the soft-stop cylinder and connect with
the ball stud Figure 27.
12. Attach the retaining clamp to the ball housing of
the soft-stop cylinder Figure 28.
To avoid injury or damage, do not forget
to secure the soft-stop device with the
retaining clamp.
Figure 27
