Section 5: Maintenance and Lubrication
AFM4011, AFM4014 and AFM4016 All Flex Grooming Mowers 315-160M
7/28/06
Land Pride
Clutch Assembly
Clutches With 8-Alan Head Socket Bolts
Refer to Figure 4-12
If the clutch run-in procedure, see Clutches With 8-Alan
Head Socket Bolts, indicated that one or more of the friction
disks did not slip, then the clutch must be disassembled to
separate the friction disks.
1.
Rotate 8 Alan head socket bolts (#2) all the way out
to free stop flange (#3).
2.
Rotate stop flange (#3) and remove from housing
(#11).
3.
Remove the following inner components:
a.
Spring disc (#4)
b.
Pressure flange (#5)
c.
1st Friction Disc (#6)
d.
Hub with flange and pull collar (#7 & #1)
e.
2nd Friction disc (#6)
f.
Intermediary flange (#8)
g.
3rd Friction disc (#6)
h.
Hub disc (#9)
i.
4th Friction disc (#6)
j.
Bearing (#10)
4.
Inspect all components and replace to their original
position. Make certain stop flange (#3) is replaced
with its flanges down as shown.
5.
Fully tighten all 8 Alan head socket bolts (#2).

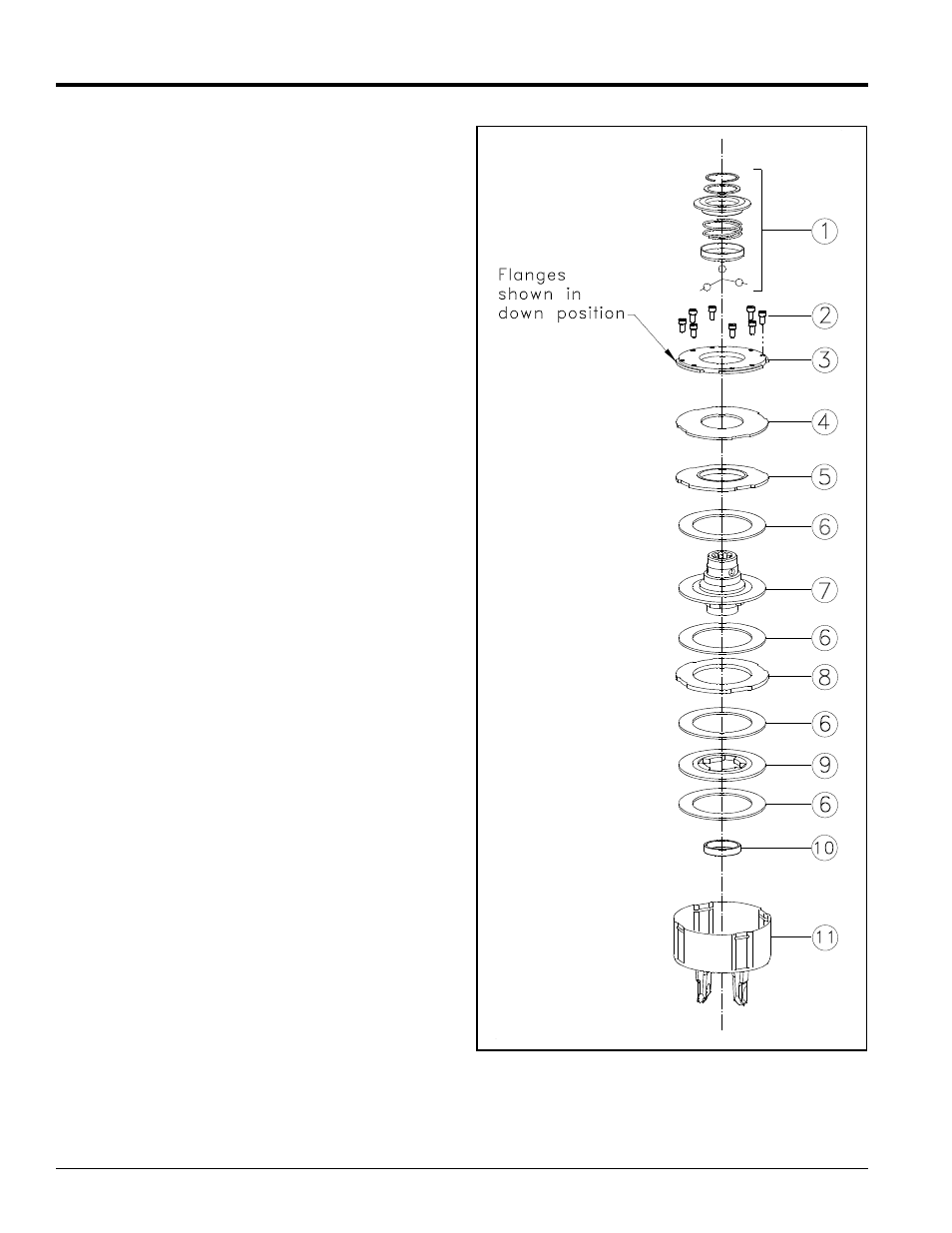

Clutch Assembly
Figure 4-12
