Life Fitness ILDCP-C03 - Manual (Page 9)

WEIGHT = 13 lb
LENGTH = 20 1/2"
WIDTH = 10 1/4"
HEIGHT = 3"
PAGE 9 OF 10
HAMMER STRENGTH EQUIPMENT

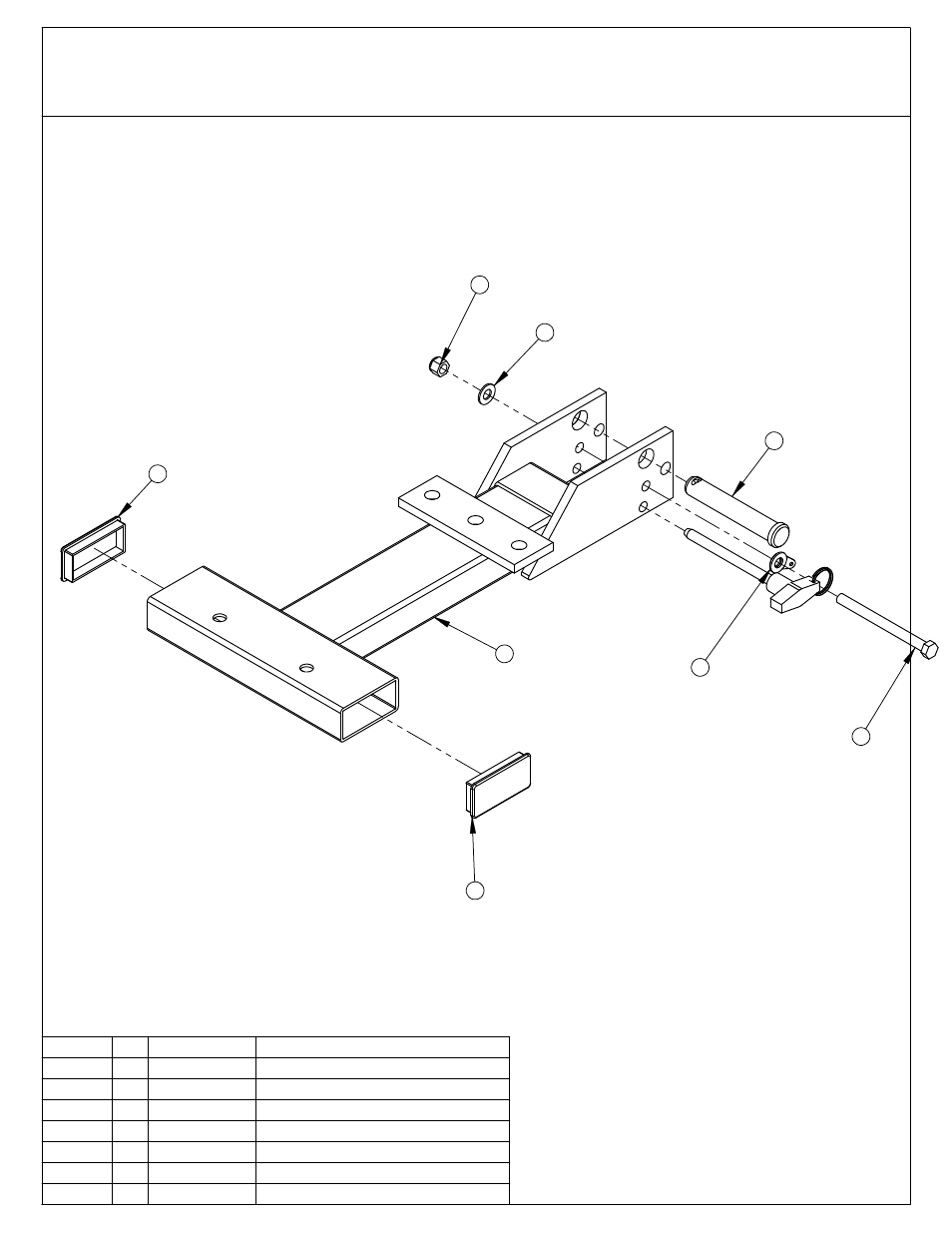

CSTD-ST2-1: ASSY, STANDARD SEAT 2
6
6
1
4
2
5
2
3
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 STD-ST2 Standard Seat #2
2 2 WASH.375SAE 3/8" SAE FLAT WASHER
3 1 HHB.375X4.5 STEEL BOLT 3/8 X 4.5
4 1 NUT.375LOCK 3/8 THICK LOCK NUT
5 1 STD SEAT PIN LONG SEAT PIN (HDADJ)
6 2 RC1530-1Q1 CAP:1-1/2 X 3 RECTANGLE PLUG
7 1 SELECTPIN ASSY, STD SEAT SELECTOR PIN
