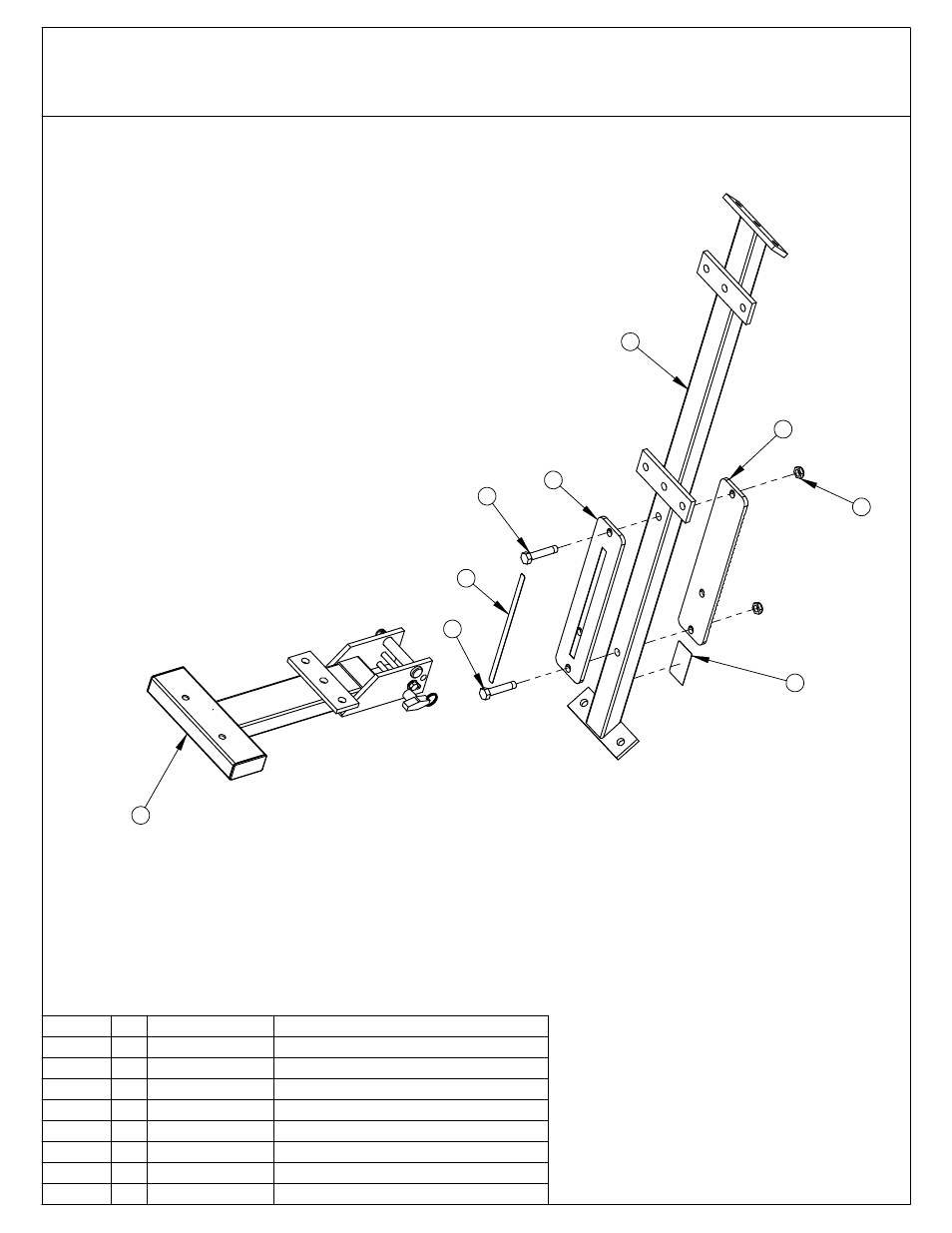

ILDCP-CST-0 Seat Frame Assembly
WEIGHT = 31 lb
LENGTH = 50"
WIDTH = 10 1/4"
HEIGHT = 20 1/2"
PAGE 5 OF 10
6
7
7
4
8
2
5
1
3
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 ILDCP-ST-0 WLDMT, ILDCP, SEAT FRAME
2 1 SERIAL NUMBER SERIAL NUMBER
3 1 CSTD-ST2-1 ASSY, STANDARD SEAT 2
4 1 H-SEATRCKS-N PLASTIC SEAT GUIDES(PP229)NEW)
5 1 H-SEATRCKS-RIB SEATRACK BACK
6 1 SEAT NUMBER SEAT ADJ. NUMBER
7 2 HHB.5X2.5 1/2 X 2 1/2 BOLT
8 2 NUT.5JAMLOCK 1/2 THIN LOCK NUT
