Life Fitness X Series User Manual
Page 11
7

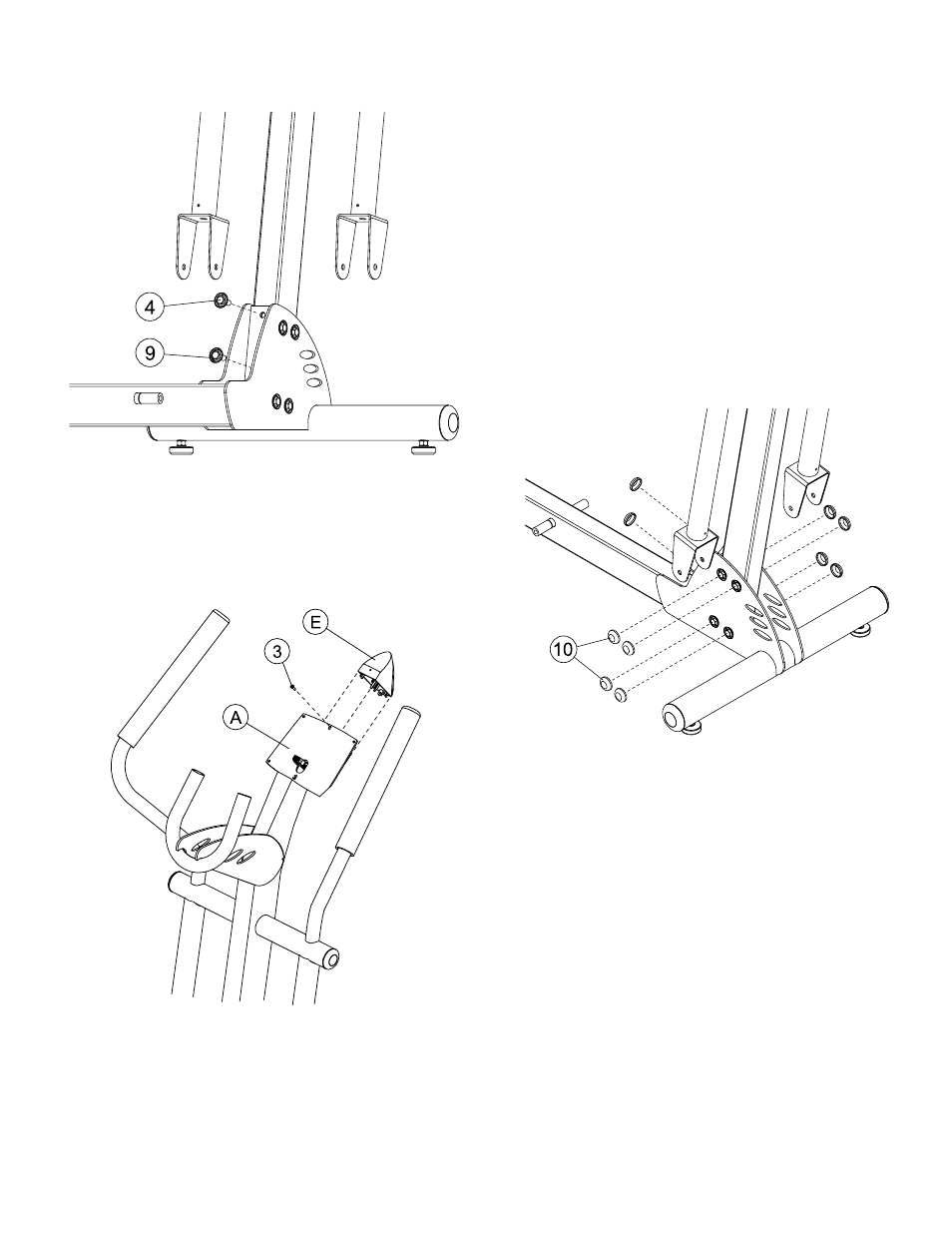

6. Insert two (#4) 1 bolts and two (#9) washers into the
backside of the connector joint on the base frame (B). Start
each bolt, and then tighten with a 9/16 socket wrench.
7. Tighten the four (#5) 2-3/4 bolts with a 9/16 socket
wrench.
8. Push the ten (#10) black plastic cover caps
over each (#5) 2-3/4 bolt head and (#7) low profile
nylock nut.
S
TEP
3
Attach Plastic Upright Cap to upright assembly:
1. Push the Plastic Upright Cap (E) into the open end of the tube at the top of the upright tube assembly (A).
2. Line up the hole in Plastic Upright Cap (E) with hole in upright tube assembly and fasten with a (#3) screw.
1.4 S
ETUP
CONTINUED
