AV OUT SETUP
The TV has a special signal output capability which allows you to hook up the second TV or monitor.
L R S-VIDEO VIDEO
L AUDIO
UT
ICAL
NT IN
A
V
OUT
A
V
IN 1
VIDEO AUDIO
MONO ( )
S-VIDEO

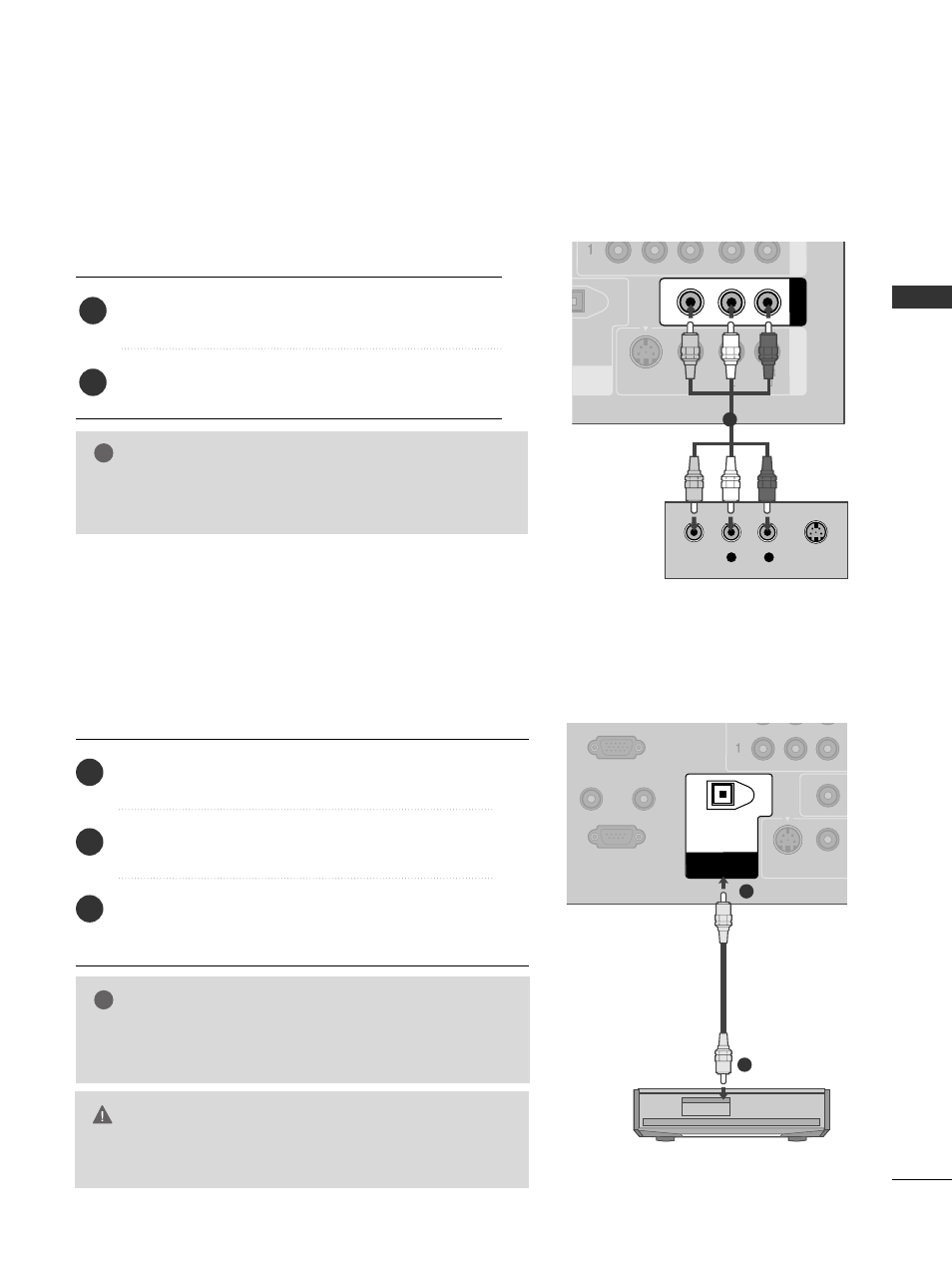

Connect the second TV or monitor to the TV’s A AV V O OU UT T
jacks.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
1. How to connect
G G Component1-2, RGB-PC, HDMI1/DVI, HDMI2, DTV input
sources cannot be used for AV out.
NOTE !
2
1
1
Send the TV’s audio to external audio equipment via the Digital Audio Output (Optical) port.
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
(PC)
AUDIO IN
(RGB/DVI)
VIDEO S-VIDEO
DIGITAL AUDIO
OUT
OPTICAL
G G When connecting with external audio equipments, such as ampli-
fiers or speakers, please turn the TV speakers off. (
G G p p..5 57 7 )
NOTE !
G G Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
Connect one end of an optical cable to the TV Digital
Audio (Optical) Output port.
Connect the other end of the optical cable to the
digital audio (optical) input on the audio equipment.
Set the “TV Speaker option - Off ” in the AUDIO
menu. (
G G p p..5 57 7 ). See the external audio equipment
instruction manual for operation.
1. How to connect
2
3
1
1
2
DIGITAL AUDIO OUTPUT
