Assembly instructions – Land Pride Z52 User Manual
Page 5
5
06/28/07
Manual No. 356-537M
Assembly Instructions
Land Pride
■

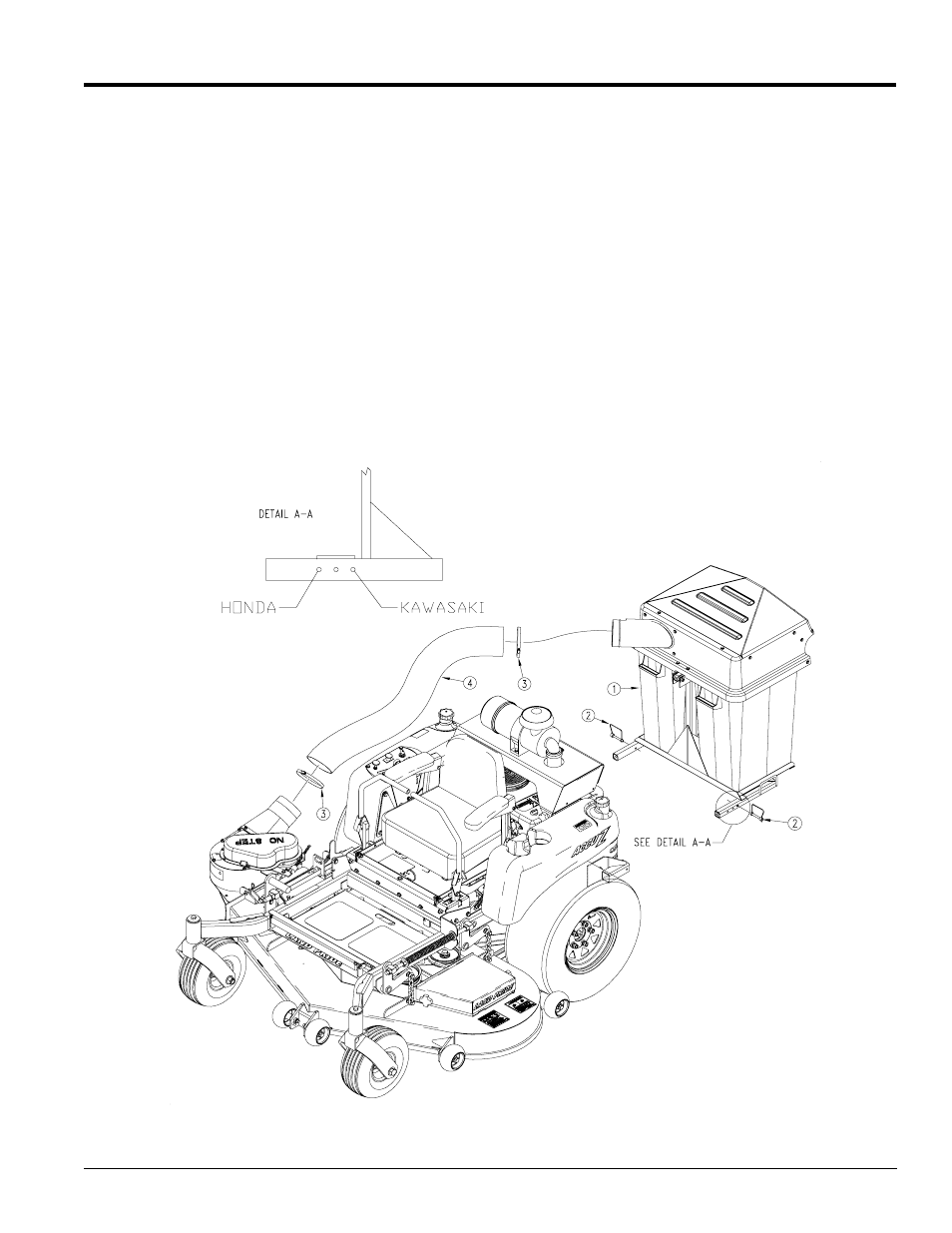

Refer to Figure 5
NOTE: Damage to plastic hopper will occure if to colse to
muffler, note location in Detail A-A below.
NOTE: The further back you place the bagger the lighter
your front end of mower becomes. Additional front weight
kit must be installed.
1.
Install bagger (1) through brackets and secure with
pins (2).
2.
Assemble clamps (3) on the ends of the bagger tube
(4) and slide the tube over the bagger inlet and the
blower as shown and tighten clamps.
NOTE: Lubricant can be used when installing tube to bag-
ger so the tube will slide over bagger inlet easier.
3.
Reconnect the negative battery cable.
