3. Highlight
A
DVANCED
O
PTIONS
and press
ENT
. Select Reset
T
RIM
C
ALIBRA-
TION
and press
ENT
. The following message will appear: Do you wish to
re-calibrate the device?
4. Highlight
Y
ES
and press
ENT
. Press
EXIT
repeatedly to get back to the
main display.
Bennett Trim Tabs Calibration
Trim Tabs will be calibrated through their Device Configuration menu.
To calibrate Trim Tabs:
1. Press
MENU
|
MENU
, select
B
US
S
ETUP
and press
ENT
. A list of network
devices will appear.
2. Select
B
ENNETT
T
RIM
T
ABS
from the list and press
ENT
, which will open
the Trim Tab Device Configuration menu.
3. Highlight
C
ALIBRATE
and press
ENT
. The Device Calibration window
will appear with a list of calibration instructions.
4. Select
S
TART
C
ALIBRATION
and press
ENT
. The following message will
appear: Please fully raise Trim Tabs.
5. After fully raising the trims tabs, press
ENT
. The following message
will appear: Please fully lower trim tabs.
6. After fully lowering the trim tabs, press
ENT
. A Calibration Complete
message will appear. Press
ENT
. Press
EXIT
repeatedly to return to the
main display.

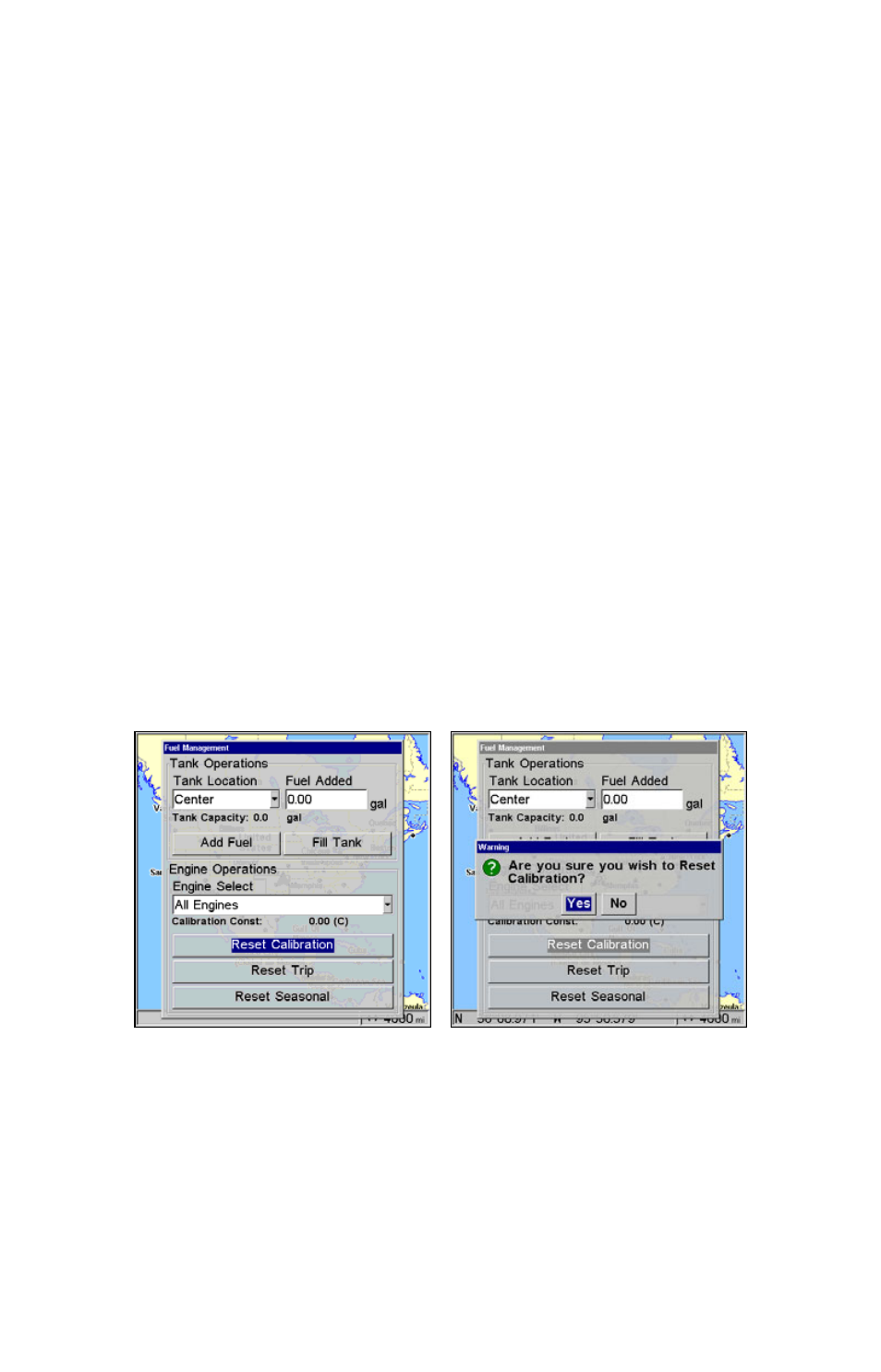

Reset Calibration highlighted (left). Reset Calibration confirmation
window (right).
To Reset Calibration:
1. Press
MENU
|
MENU
, select
NMEA 2000
and press
ENT
.
2. Highlight
F
UEL
M
ANAGEMENT
and press
ENT
.
3. Highlight
E
NGINE
S
ELECT
and press
ENT
. The Engine Select menu will appear
with up to four options: All Engines, Port, Center and Starboard. Selecting All
Engines will reset calibration for all engines back to factory defaults.
