32
Installation
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
PC Setup

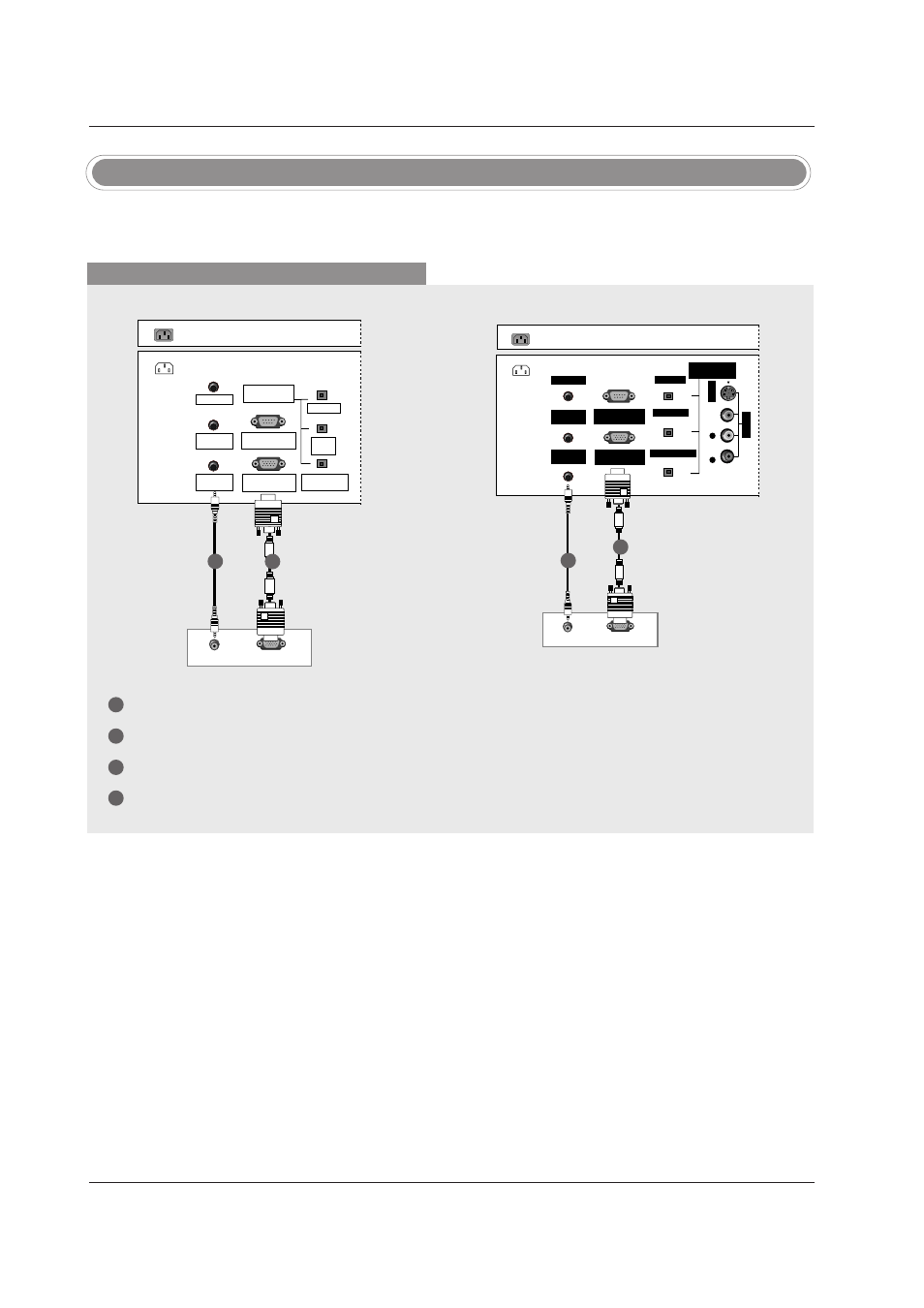

When connecting with a D-sub 15 pin cable
1
2
3
4
Connect the RGB output of the PC to the RGB INPUT (PC/DTV INPUT) jack on the set.
Connect the PC audio output to the PC AUDIO INPUT jack on the set.
Turn on the PC and the set.
Select RGB-PC input source with using the TV/VIDEO button on the remote control.
