ordering information is on the inside back cover of this manual. For
a complete look at the many mounting options, visit the RAM web site
at
www.ram-mount.com .

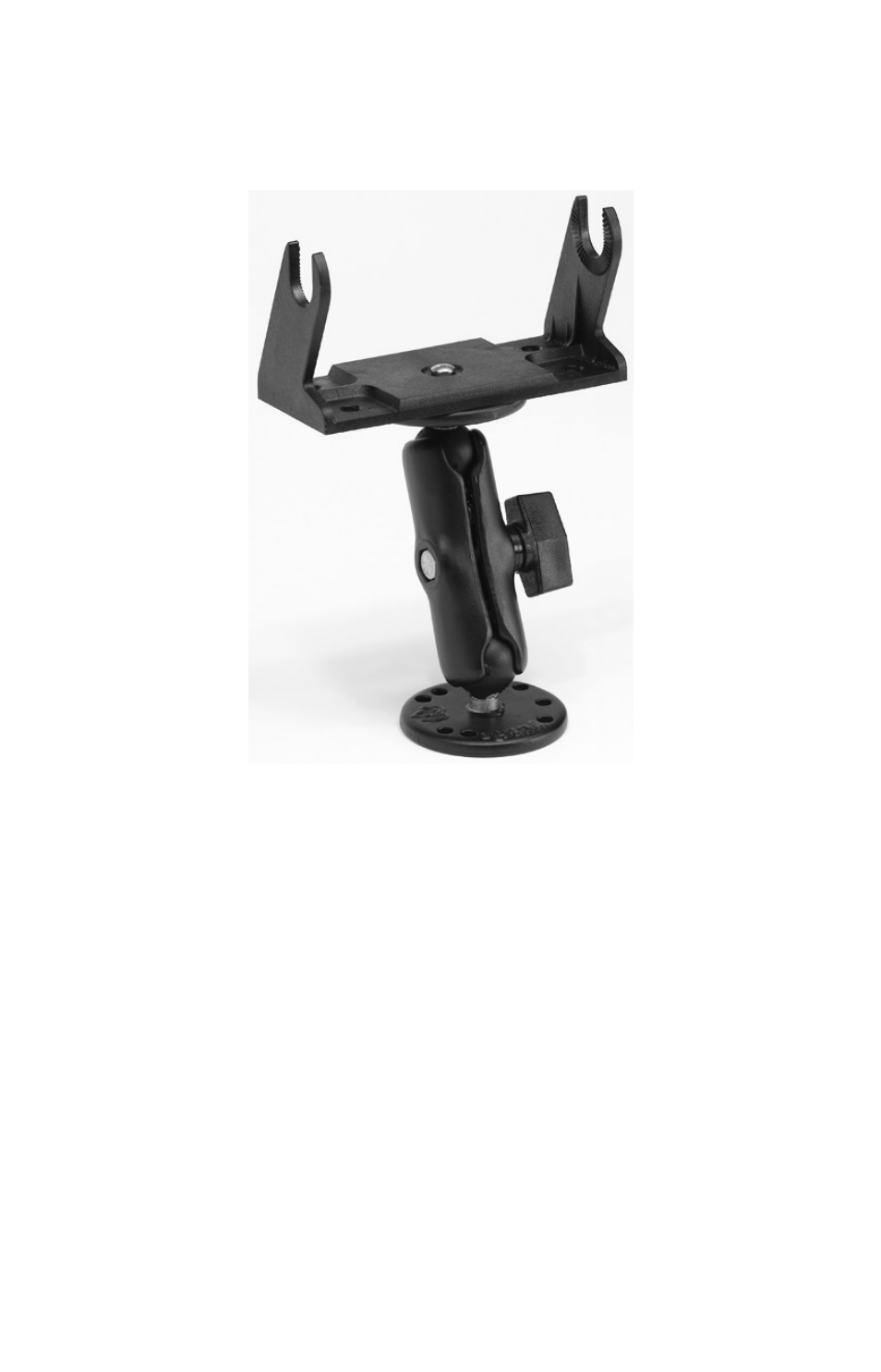

Optional R-A-M mounting system.
Bracket Installation
Mount the GlobalMap Baja 480c in any convenient location, provided there
is clearance behind the unit when it's tilted for the best viewing angle. You
should also make sure there is enough room behind the GlobalMap Baja
480c to attach the power and GPS antenna/receiver module cables. (A
drawing on the next page shows the dimensions of a gimbal-mounted
GlobalMap Baja 480c.)
Holes in the bracket's base allow wood screw or through-bolt mounting.
You may need to place a piece of plywood on the back side of thin fiber-
glass panels to reinforce the panel and secure the mounting hardware.
