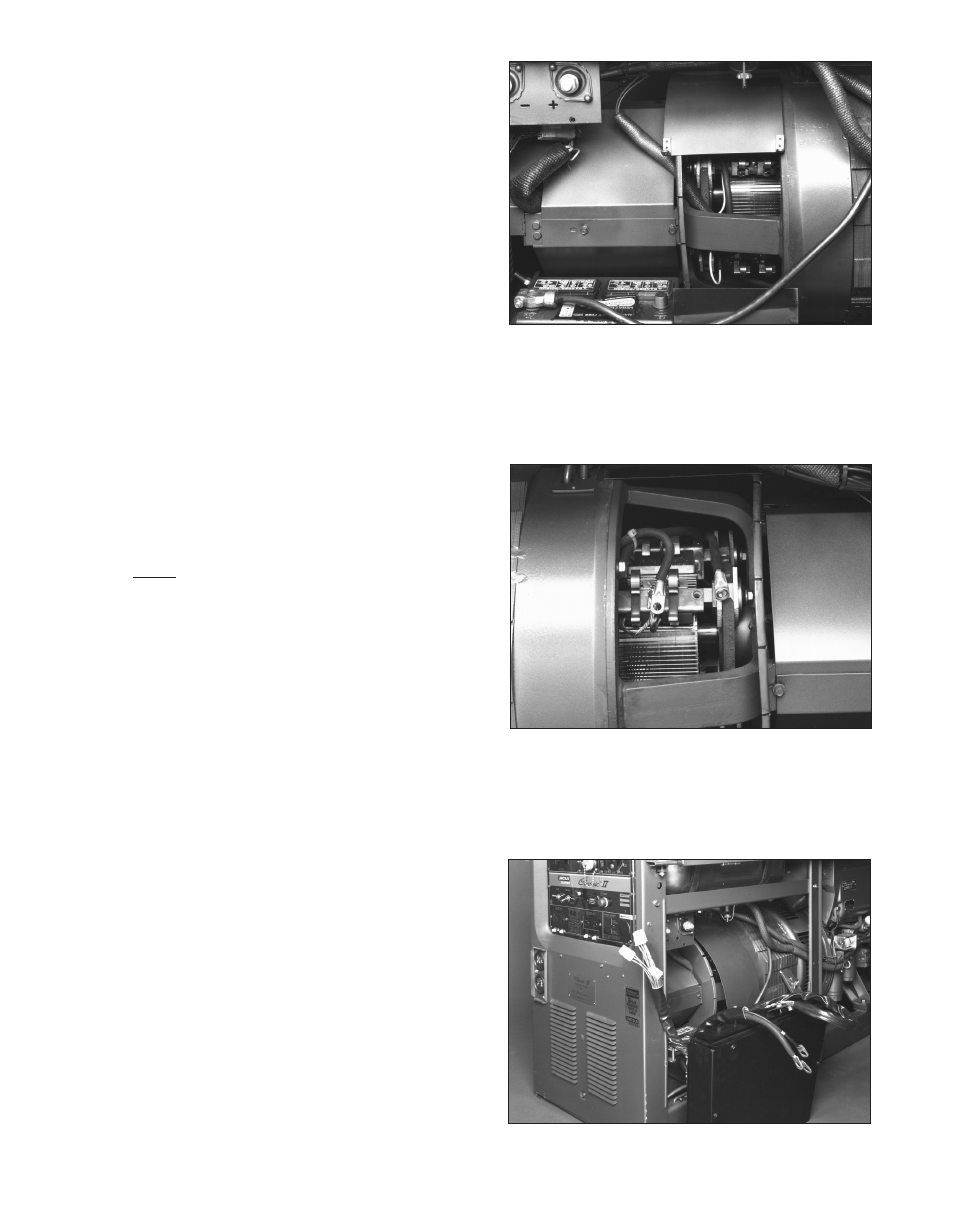

8) Remove 2 screws from brush wraparound cover.
Loosen and rotate the wraparound cover until neg-
ative brushholder is exposed. (Large flat head
screwdriver and pliers).
9) The negative brushholder is in the 11:00 position
looking at the control panel end of the generator.
Remove negative brushholder 5/16” bolt. (1/2”
Socket, ratchet, and small extension.)
10) (NOTE:) If you are installing the WFM on the
Classic I, you must change the “250H” thermostat
to the thermostat marked “200”, (provided in the
mounting hardware packet). Make certain the nut
and bolt is tightened and the 608 and 609 leads
are connected to the thermostat. (1/2” Socket,
ratchet, and 1/2” open end.)
11) Position Wire Feed Module control box next to
the right side of the machine (as shown). Place
one plain washer (provided in the mounting hard-
ware packet) over each mounting stud.
