Statiflex ™ 200-M
www.lincolnelectric.com [2]

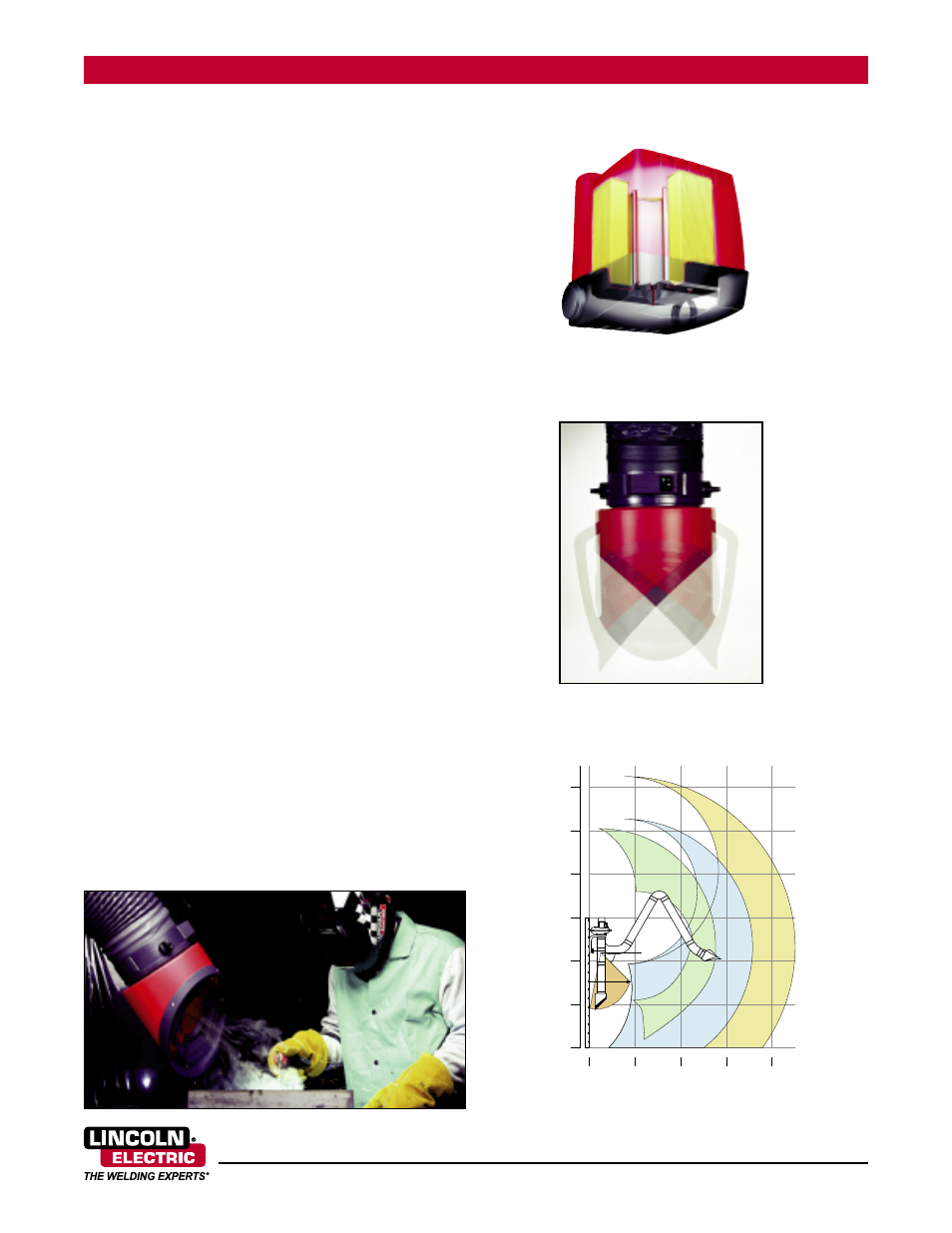

A CLOSER LOOK
PERFORMANCE
Mechanical Filtering Technique
The LongLife
® filter has a surface area of 50 m 2 (164 ft 2 ), making it
one of the largest disposable filter cartridges in its class for collec-
tion of weld fume particulate. The combination of this with an
ExtraCoat
® pretreatment and the unique 3D-pleated structure
results in a high filter efficiency, a longer life, and low operational
costs.
The ExtraCoat ® pretreatment fills the micro pleats in the filter and
reduces moisture. This increases its efficiency from the start of
usage. A pressure differential filter indicator located at front of unit,
moves gradually from white to red as the filter becomes saturated
with welding fume particulate, indicating when system maintenance
and filter replacement is necessary.
Extraction Arms
No matter if you are working in a small work station, under a low
ceiling, or in a large fabrication area, one of Lincoln Electric’s
® vari-
ous fume extraction arms for welding will work for you. The flexible
extraction arms are built the Lincoln
® way—rugged and reliable.
Low vacuum extraction arms are designed for high volume/low
velocity air movement to enable the arm to be positioned at a dis-
tance of 6 to 12 inches (152-304 mm) from the welding source.
Designed with the welder in mind, the arms provide welders optimal
motion and reach for their specific welding position(s) and work
area.
The arms come equipped with the 360° rotatable hood for optimal
positioning to welding source. This allows a larger work envelope
with less repositioning of the arm and increased operator visibility.
With the extraction arm correctly positioned, the welding fume par-
ticulate can be effectively drawn away from the operator’s breathing
zone, as well as eliminate the residual fume particulate that often
rises and hovers within the facility.
With a unique spring-balanced internal mechanism, Lincoln’s ® fume
extraction arms provide a long-lasting, user-friendly solution. The
extraction arms external shell is made of solid, lightweight 203 mm
(8 in.) diameter dent and scratch resistant tubing. Incorporated into
the arm is an airflow throttle valve and extraction focus spoiler. A
clear halogen lamp and automatic start/stop are available as rec-
ommended optional features. With the use of an arc sensor, the
system automatically starts and stops the fan unit, providing hands-
free operation and helping to conserve energy. All this combined,
provides a highly effective system with maximum efficiency and
minimal disruption to welder productivity.
LongLife ® Filter
Rotatable Hood
Statiflex ™ 400-MS Reach
LFA 4.1
LFA 3.1
0 m
(0 ft)
1 m
(3 ft)
2 m
(6.5 ft)
3 m
(10 ft)
4 m
(13 ft)
0 m
(0 ft)
1 m
(3 ft)
2 m
(6.5 ft)
3 m
(10 ft)
4 m
(13 ft)
5 m
(16 ft)
6 m
(19.5 ft)
LFA 4.1/LFA 4.1 LC
LFA 3.1
LFA 2.0
LTA 2.0
55 in.
45Ê
40 in.
40 in.
