Rear view
The following illustration shows the locations of the connectors and parts on the rear of the server.

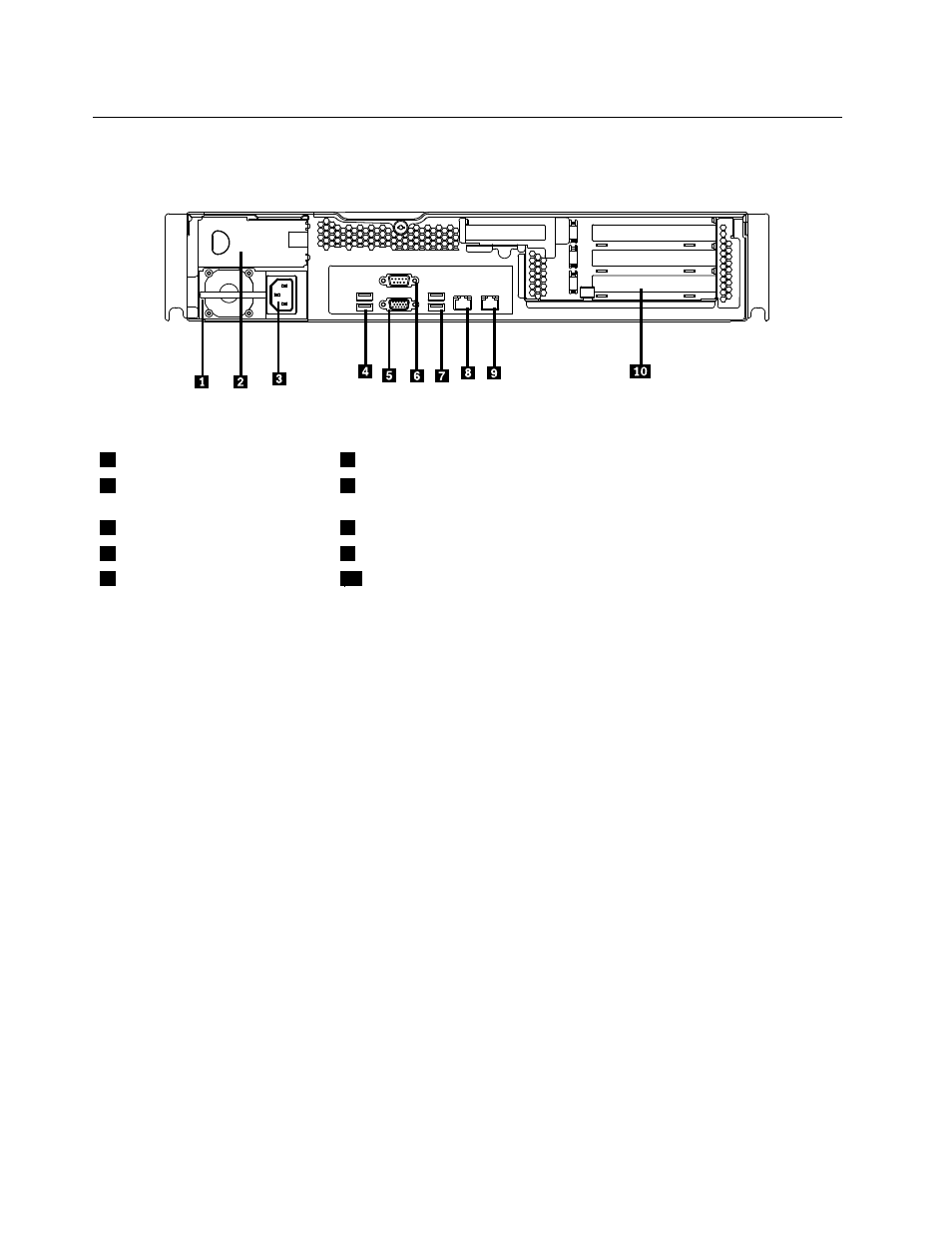

Figure 2. Rear view of the server
1 Power supply 1 6 Serial port
2 Power supply 2 bay (blank and
covered by a bay bezel)
7 USB connectors (3 and 4)
3 Power cord connector 8 Ethernet connector 1
4 USB connectors (1 and 2) 9 Ethernet connector 2 (share with MGMT)
5 VGA monitor connector 10 PCI expansion slot
Connector Description
Power cord connector Used to connect the power cord.
Ethernet connector Used to attach an Ethernet cable for a local area network (LAN).
Serial port Used to attach a device that uses a 9-pin serial port.
USB connector Used to attach a device that uses a USB connector, such as a USB keyboard
or a USB mouse.
VGA monitor connector Used to attach a VGA monitor or other devices that use a VGA monitor connector.
10 ThinkServer Installation and User Guide
