Architectural Decorative Vetro Downlight
D03
Page 2 of 3 Compact Fluorescent
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 241 20.13 53.91
0-40 359 29.98 80.29
0-60 423 35.26 94.41
0-90 448 37.34 100.00
40-90 88 7.36 19.71
60-90 25 2.09 5.59
90-180 0 .00 .00
0-180 448 37.34 100.00
** Efficiency = 37.3% **
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Ro
om C
av
ity R
at
io
0 .44 .44 .44 .44 .43 .43 .43 .43 .41 .41 .41 .40 .40 .40 .38 .38 .38 .37
1 .42 .41 .40 .39 .41 .40 .39 .39 .39 .38 .37 .37 .37 .36 .36 .36 .35 .35
2 .40 .38 .37 .35 .39 .37 .36 .35 .36 .35 .34 .35 .34 .33 .34 .33 .33 .32
3 .38 .35 .33 .32 .37 .35 .33 .32 .34 .32 .31 .33 .32 .31 .32 .31 .30 .30
4 .36 .33 .31 .29 .35 .33 .31 .29 .32 .30 .29 .31 .30 .28 .30 .29 .28 .28
5 .34 .31 .28 .27 .33 .30 .28 .27 .30 .28 .27 .29 .27 .26 .29 .27 .26 .25
6 .32 .29 .26 .25 .32 .28 .26 .25 .28 .26 .25 .27 .26 .24 .27 .25 .24 .24
7 .30 .27 .24 .23 .30 .27 .24 .23 .26 .24 .23 .26 .24 .22 .25 .24 .22 .22
8 .29 .25 .23 .21 .28 .25 .23 .21 .24 .22 .21 .24 .22 .21 .24 .22 .21 .20
9 .27 .23 .21 .19 .27 .23 .21 .19 .23 .21 .19 .22 .20 .19 .22 .20 .19 .19
10 .26 .22 .19 .18 .25 .22 .19 .18 .21 .19 .18 .21 .19 .18 .21 .19 .18 .17
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 23.0

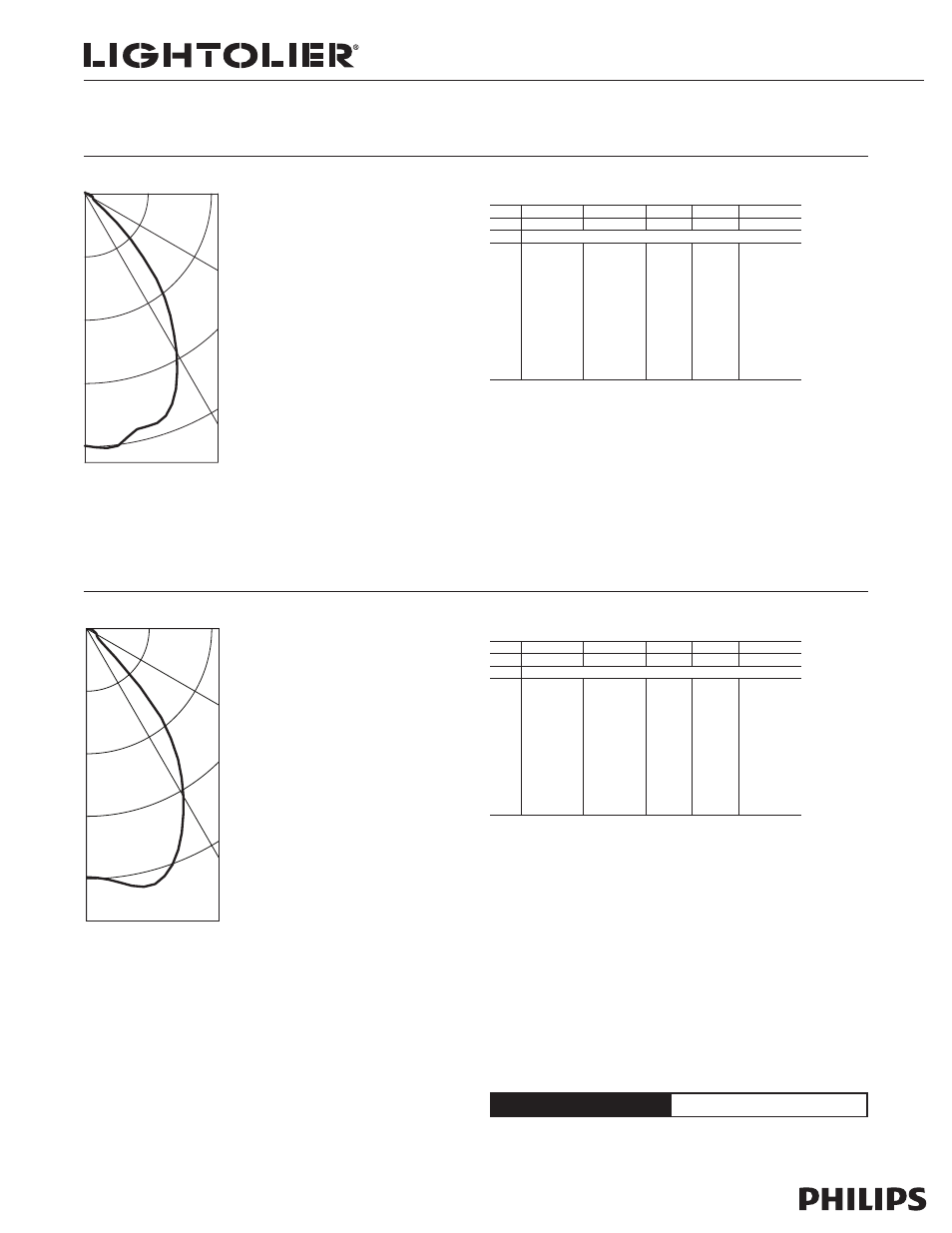

150
300
0°
30°
60°
90°
75
225
8011CL-D4A03
Calculite 4” Dia. Recessed Vetro Downlight,
Cat.# 8011CL/D4A03
18W G.E. Biax T/E Triple Tube. Lumen Rating = 1200 LMS.
Universal Ballast #C218UNVBES
Candlepower Summary
Angle Mean CP Lumens
0 298
5 302 29
10 313
15 317 88
20 301
25 270 124
30 232
35 191 118
40 139
45 49 49
50 18
55 15 14
60 14
65 12 12
70 9
75 8 8
80 6
85 5 5
90 3
Certified Test Report no. 3559FR
Computed by LSI Program **TEST-LITE**
SC = 1.1
Prepared For:
Lightolier
Fall River, MA Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Luminance Summary - CD. / SQ. M.
Angle Mean CD/SQ M
45 14072
55 2746
65 3095
75 3378
85 5667
Calculite 6" Series Recessed Vetro Downlight,
Cat.# 8021CL/D6A03 32W G.E. Biax T/E Triple Tube.
Lumen Rating = 2200 Lms.Universal Ballast #C2642UNVBES
Candlepower Summary
Angle Mean CP LMS. Angle Mean CP LMS.
0 697 90 6
5 706 67 95 4 4
10 683 100 2
15 666 189 105 2 2
20 654 110 2
25 596 272 115 2 2
30 508 120 2
35 412 258 125 2 2
40 308 130 2
45 181 143 135 2 2
50 69 140 3
55 29 34 145 2 2
60 26 150 3
65 24 23 155 3 1
70 21 160 3
75 16 17 165 3 1
80 12 170 3
85 9 10 175 3 0
90 6 180 3
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 528 24.01 51.31
0-40 785 35.72 76.34
0-60 963 43.77 93.56
0-90 1013 46.06 98.45
40-90 227 10.35 22.11
60-90 50 2.29 4.89
90-180 15 .72 1.55
0-180 1029 46.79 100.00
** Efficiency = 46.8% **
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Ro
om C
av
ity R
at
io
0 .56 .56 .56 .56 .54 .54 .54 .54 .52 .52 .52 .49 .49 .49 .47 .47 .47 .46
1 .53 .51 .50 .49 .51 .50 .49 .48 .48 .47 .46 .46 .45 .45 .44 .44 .43 .42
2 .50 .47 .45 .44 .49 .47 .45 .43 .45 .43 .42 .43 .42 .41 .42 .41 .40 .39
3 .47 .44 .41 .39 .46 .43 .41 .39 .42 .40 .38 .41 .39 .38 .40 .38 .37 .36
4 .45 .41 .38 .36 .44 .40 .38 .36 .39 .37 .35 .38 .36 .35 .37 .36 .34 .34
5 .42 .38 .35 .33 .41 .38 .35 .33 .37 .34 .32 .36 .34 .32 .35 .33 .32 .31
6 .40 .35 .33 .30 .39 .35 .32 .30 .34 .32 .30 .34 .31 .30 .33 .31 .29 .29
7 .37 .33 .30 .28 .37 .33 .30 .28 .32 .29 .28 .31 .29 .27 .31 .29 .27 .26
8 .35 .31 .28 .26 .35 .30 .27 .25 .30 .27 .25 .29 .27 .25 .29 .27 .25 .24
9 .33 .28 .25 .23 .33 .28 .25 .23 .28 .25 .23 .27 .25 .23 .27 .24 .23 .22
10 .31 .26 .23 .21 .31 .26 .23 .21 .26 .23 .21 .25 .23 .21 .25 .23 .21 .20
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 33.0
Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Certified Test Report no. 3493FR
Computed by LSI Program **TEST-LITE**
SC = 1.1
Prepared For:
Lightolier
Fall River, MA
350
700
0°
30°
60°
90°
175
525
8021CL-D6A03
