REF. PART QTY DESCRIPTION
NO. NO.
1 50022327
1 RH Rear Jackshaft
2 50019883 1 LH Rear Jackshaft
3 50022084 3 Pulley, 1 Belt 4.4 PD
4 50022105 1 Bushing, Split Taper SH 1”
5 93810 5 Key 1” x 1/4”
6 50022419 1 Pulley, 3 Belt 6.6 PD
7 50022428 1 Bushing, Split Taper SD 1”
8 50019884 1 3” Key
REF. PART QTY DESCRIPTION
NO. NO.
9 50019999
1 Jackshaft Coupling Assy.
10 20504 6 HHCS 5-16”-18 x 2-1/2”
11 50019885 1 Key 5”
12 44553 6 Hex Nut, Nylock 5/16”-18
13 50022101 3 Bearing 1”, 2 Bolt Flange
14 44614 6 HHCS 7/16”-14 x 1-1/4”
15 15819 6 Lockwasher 7/16”
16 8151400 6 Hex Nut 7/16”-14

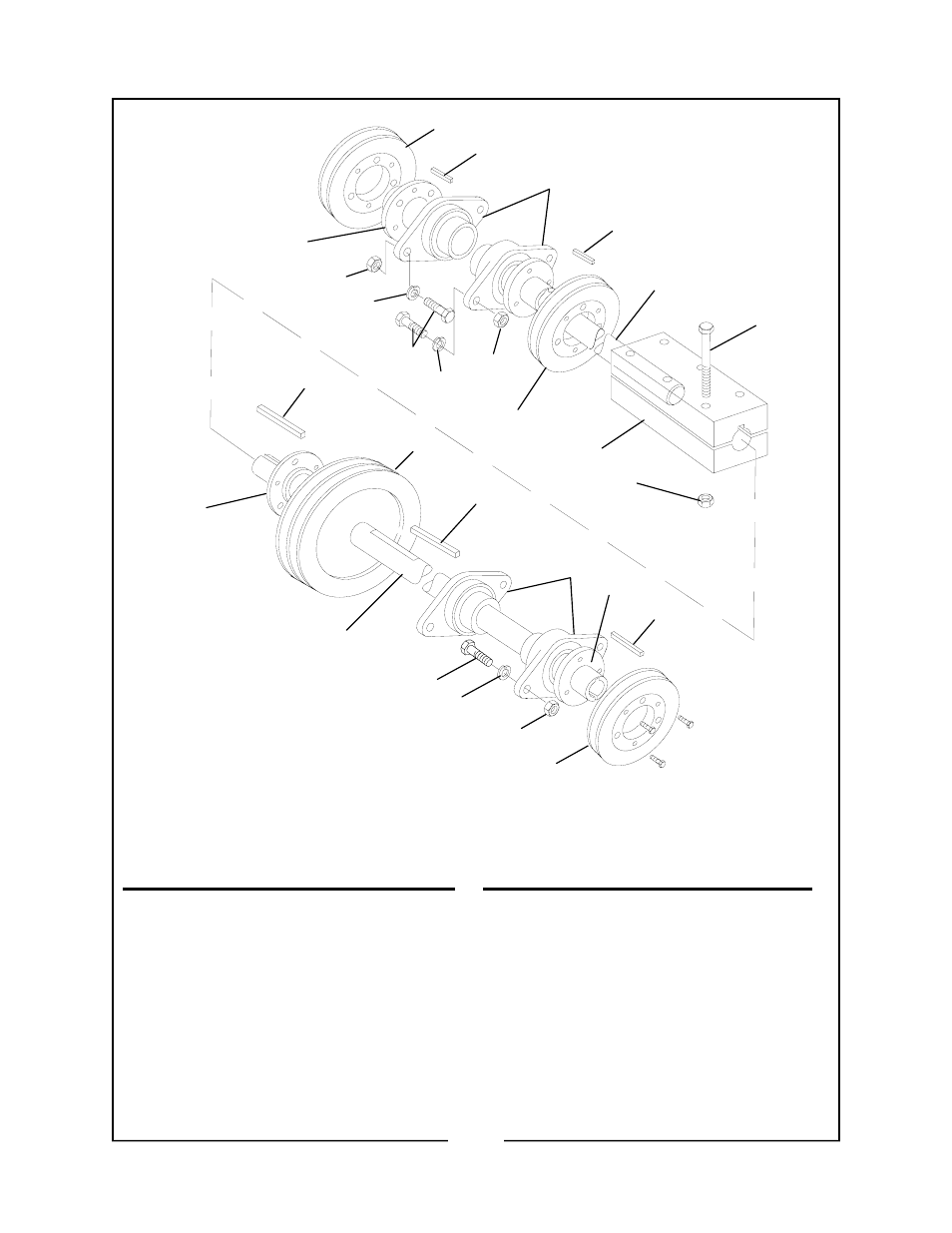

Rear Jackshaft Assembly
3-7
7
11
5
3
16
15
14
4
13
8
6
3
5
13
4
16
15
14
15
16
3
1
5
4
9
12
10
2
