Lennox Hearth ADAGIO-AG - Manual

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
HEARTH PRODUCTS
KITS AND ACCESSORIES
750,231M
REV. NC 06/2008
INSTALLATION INSTRUCTIONS FOR FACADE KITS
FOR USE wITh ADAGIO™ DIRECT-VENT GAS FIREpLACES
TM
KIT CONTENTS:
Facade Kit
1 ea. Facade Assembly (1)
1 ea. Instruction Sheet
INSTALL ONLY whEN FIREpLACE IS OFF AND COOL.
ALL wARNINGS, pRECAUTIONS AND INSTRUCTIONS pROVIDED
IN ThE INSTALLATION INSTRUCTIONS MANUAL AND ThE CARE
AND OpERATION MANUAL pROVIDED wITh ThE AppLIANCE AppLY
TO ThESE INSTRUCTIONS. ThOROUGhLY READ AND FOLLOw
ThE INSTRUCTIONS pROVIDED wITh ThE AppLIANCE BEFORE
pROCEEDING TO ThE FOLLOwING INSTRUCTIONS.
INSTALLATION INSTRUCTIONS
1. Install the appliance, firebox liner and logs per the Installation Instruc-
tions Manual provided with the appliance and the Installation Instruction
Sheet provided with the firebox liner kit (sold separately).
2. Using a 3/8” socket or nutdriver, remove heat shield, screen retainer and
screen from facade. See Figure 2.
Cat. No Model Description
h5773 ADAGIO-AG Arched Face Black Facade
h5774 ADAGIO-pF Arched Face Brushed Nickel Facade
1
The arched facade kits require a filigree inset kit. These kits are sold
separately. Contact your dealer for ordering information.
Filigree Inset Kits (Sold Separately - Required)
Cat. No. Model Description
H6845 ADAGIO-INSET-ASPEN-BK Aspen, Black
H6846 ADAGIO-INSET-ASPEN-BN Aspen, Brushed Nickel
H6847 ADAGIO-INSET-ASPEN-BKN Aspen, Black Nickel
H6848 ADAGIO-INSET-ASPEN-G Aspen, Gold
H6849 ADAGIO-INSET-NAPA-BK Napa, Black
H6850 ADAGIO-INSET-NAPA-BN Napa, Brushed Nickel
H6851 ADAGIO-INSET-NAPA-BKN Napa, Black Nickel
H6852 ADAGIO-INSET-NAPA-G Napa, Gold
H6853 ADAGIO-INSET-TUSCAN-BK Tuscan, Black
H6854 ADAGIO-INSET-TUSCAN-BN Tuscan, Brushed Nickel
H6855 ADAGIO-INSET-TUSCAN-BKN Tuscan, Black Nickel
H6856 ADAGIO-INSET-TUSCAN-G Tuscan, Gold
Filigree Inset Kit
1 ea. Upper Filigree inset (2)
1 ea. Lower Filigree inset (3)
7 ea. Washers #10 (4)
7 ea. Hex Head Nuts (5)
Installer: Leave This Instruction Sheet With The Appliance.
Consumer: Retain This Instruction Sheet For Future Reference.

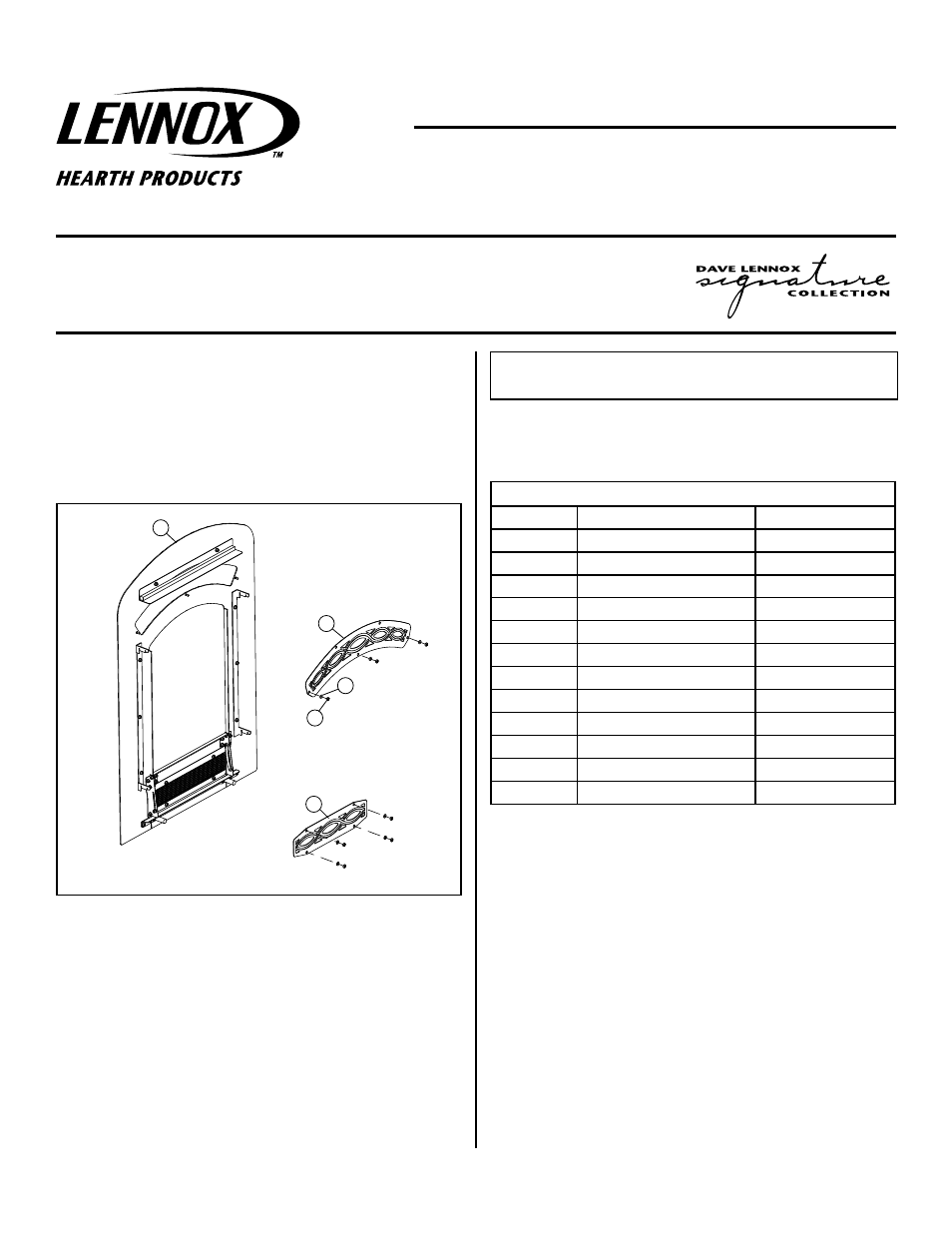

Figure 1
TOOLS / SUppLIES NEEDED:
3/8” Socket or Nutdriver
GENERAL INFORMATION
The arched facade kits are offered in two attractive finishes, black and
brushed nickel. If you encounter any problems or need clarification of
these instructions, contact you local distributor or dealer.
Note: The base of the appliance will need to be elevated by 3/4" minimum
above the floor to allow for the proper fit of the facade (i.e. 3/4" board as
platform). See Installation Instructions Manual.
FPO
4
7 Places
7 Places 5
2
3
1
