22

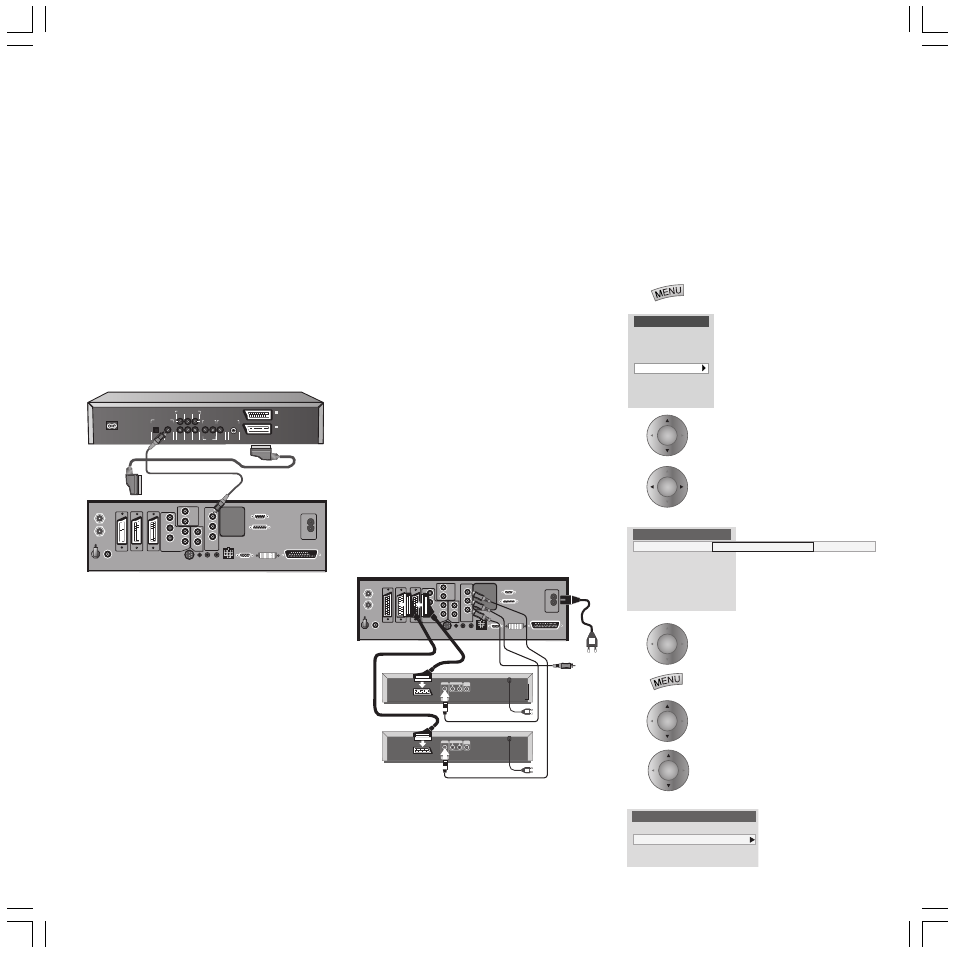

Operating additional equipment
DVD player
Log in the DVD player as described in the TV
operating manual.
The signal box has two coaxial digital audio
inputs 1/2. Connect the output socket of the
DVD player (DIG OUT) to the digital audio input
socket (DIGITAL IN 1 or 2) of the signal box
with a cinch cable.
Also make a connection for the picture and
analogue sound signal (mono or stereo). Plug
the Euro-AV cable into the "Euro AV 1/ Audio/
Video" socket on the DVD player and into the
Euro-AV socket AV 3 on the signal box.
Digital output
The digital sound signal is present at the socket
DIGITAL OUT of the TV set. You can connect
here, say, an external Dolby digital decoder.
Digital input/output
The integrated ”Digital Input Selector” is a
comfortable electronic switch with about 4
1. Call up the TV menu by
pressing the MENU key.
2. Select the “Sound” line, then
press the OK key.
3. “Sound via” select the “AV
amplifier (Dig. input)” or
“Concertos”, if Concertos has
been connected.
Press the OK key
4. Press the MENU key.
5. Select the bar “Settings“
and confirm with OK.
6. Select the item “AV
settings”, then confirm with
OK.
To
Concertos
or digital
receiver or
Certos
inputs and one output for digital sound signals.
Connect the Loewe Certos/Concertos system or
a digital receiver to the digital output (DIGITAL
OUT) of the TV set. This switch makes two
digital inputs (DIGITAL In 1 and 2) available to
you for external devices.
The TV set uses the other two inputs. The TV set
or a DVD player or another sound source,
connected to one of the AV connector sockets
of the TV set, thus converts a digital signal
(PCM) and outputs it to the socket “DIGITAL
OUT”. You connect the digital sound output of
the DVD/CD player to the digital input 1 or 2 on
the TV set by means of a Cinch cable. The
digital signal from the DVD player is outputted
unaltered at the digital output of the TV set.
You connect the video output of the DVD player
to the AV connection socket AV3, AV2, by
means of an AV connecting cable, depending on
the default in the “Connections“ menu of the
TV set.
TV menu
Standard settings
Sound
zap2text
Connections
Settings
Rotate TV
Sound
Loudspeaker sound
Headphone sound
AV audio signal
Dig. DVB output tone
Headphone volume
Sound via TV AV amplifier (digital input) HiFi Concertos
AV settings
Allow swichting voltage
Manual adjustment of AV standard
Assign audio digital
RGB insertion at AV2
If you switch on the "Radio Mode" the digital
inputs 1 or 2 can be selected directly.
The digital TV sound or the sound of a DVD/CD
player is only audible through the Digital
Receiver or the Concertos or Certos system.
SYSTEM RC5/
RC6 IR-
LINK
SUB
SERVICE VGA DISPLAY PIP VHF/UHF
AV 3
(RGB/YUV)
AV 2
(RGB)
AUDIO IN 1
DVI
AV 1
COM DIGITAL TV
SAT
A/D
SAT
COMPONENT
IN
TVO
C R
L
S
U
R 1
IN
2
DIGITAL
AUDIO
IN 3
R
L
R
L
R
L
AUDIO OUT
230V/50/60 Hz
OUT
AUDIO IN 2
Y
CR/
PR
CB/
PB
S-VIDEO OUT DIG OUT
REAR
MAINS
L R (CVBS) (Y/C) VIDEO OUT AUDIO
STEREO OUT VIDEO OUT
I AUX- I /O
II TO TV- I /O
OPT OUT RIGHT SUBW. REAR RIGHT
FRONT
LEFT CENTER
MULTICHANNEL AUDIO OUT
DIGITAL AUDIO OUT PCM/MPEG2/AC3/DTS
LEFT
FRONT
➜
➜
In
Out
VIDEO OUT AUDIO OUT
R L DIGITAL OUT COAXIAL TO TV
S-VIDEO OUT
VIDEO OUT AUDIO OUT
R L DIGITAL OUT COAXIAL TO TV
S-VIDEO OUT
AV 3
(RGB/YUV)
Spheros Signal Box
SYSTEM RC5/
RC6 IR- LINK
SUB
SERVICE VGA DISPLAY PIP VHF/UHF
AV 3
(RGB/YUV)
AV 2
(RGB)
AUDIO IN 1
DVI
AV 1
COM DIGITAL TV
SAT
A/D
SAT
COMPONENT
IN
TVO
C R
L
S
U
R 1
IN
2
DIGITAL
AUDIO
IN 3
R
L
R
L
R
L
AUDIO OUT
120-240V/50/60 Hz
OUT
AUDIO IN 2
Y
CR/
PR
CB/
PB
DVD 1
DVD 2
OK
OK
OK
OK
OK
