Installing the unit (cont'd)

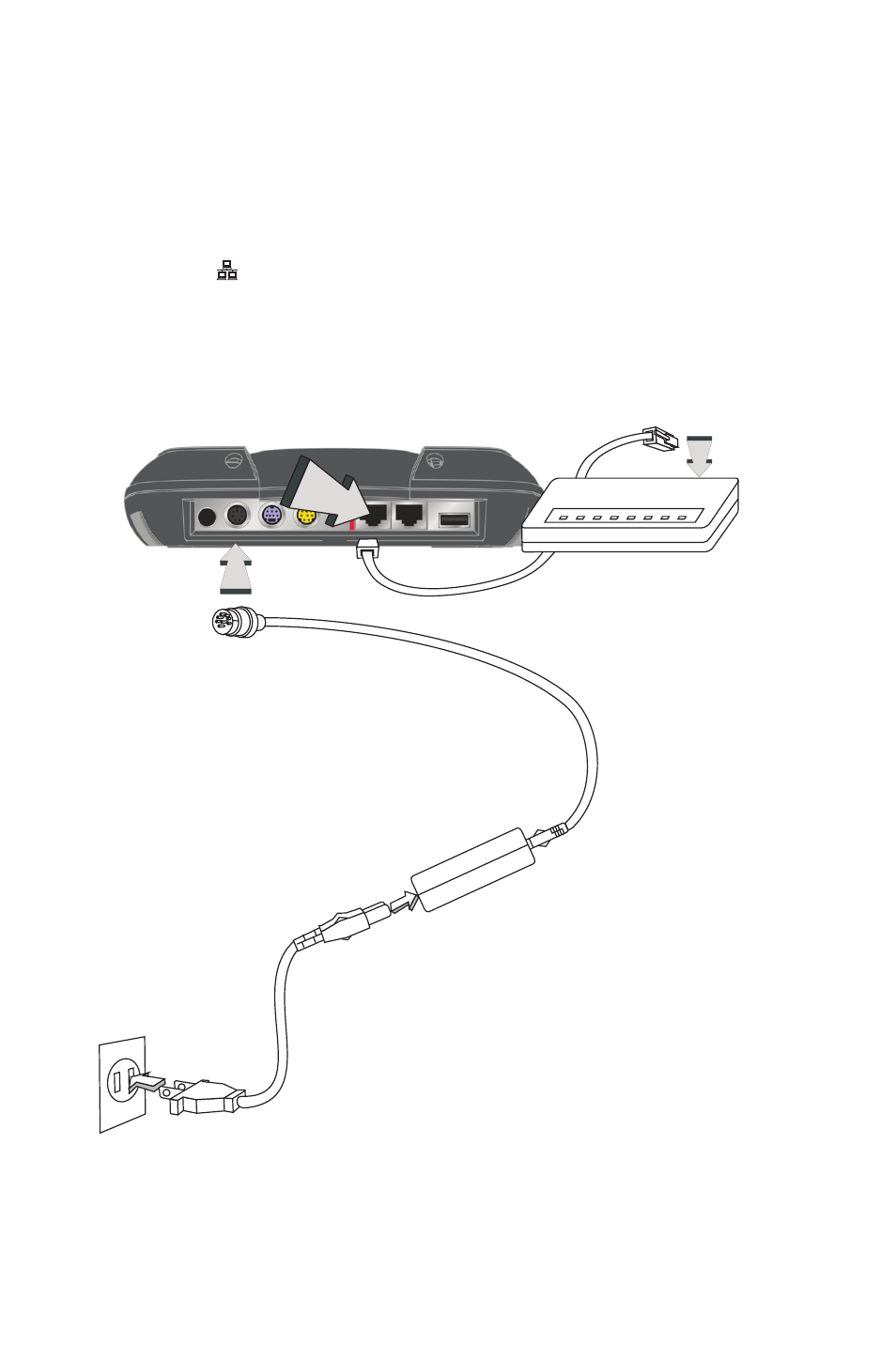

Step 4 Plug in for power
Connect the power cord between
the wall outlet and the power
adapter. Plug the free end of the
power adapter into the
power connector
(DC IN) on
Videophone.
Connect
the power
adapter.
Connect the power cord
and plug in.
Step 3 Connect the Ethernet cable
Plug one end of the Ethernet cable in one port of the jacks marked
" " on BVP 8882 SIP. Plug the other end of the Ethernet cable
in the RJ-45 jack of the Ethernet device (hub, router, or ATU-R).
Connect Ethernet cable
to the Ethernet device
14
