Mounting the attachment brackets onto the door panels

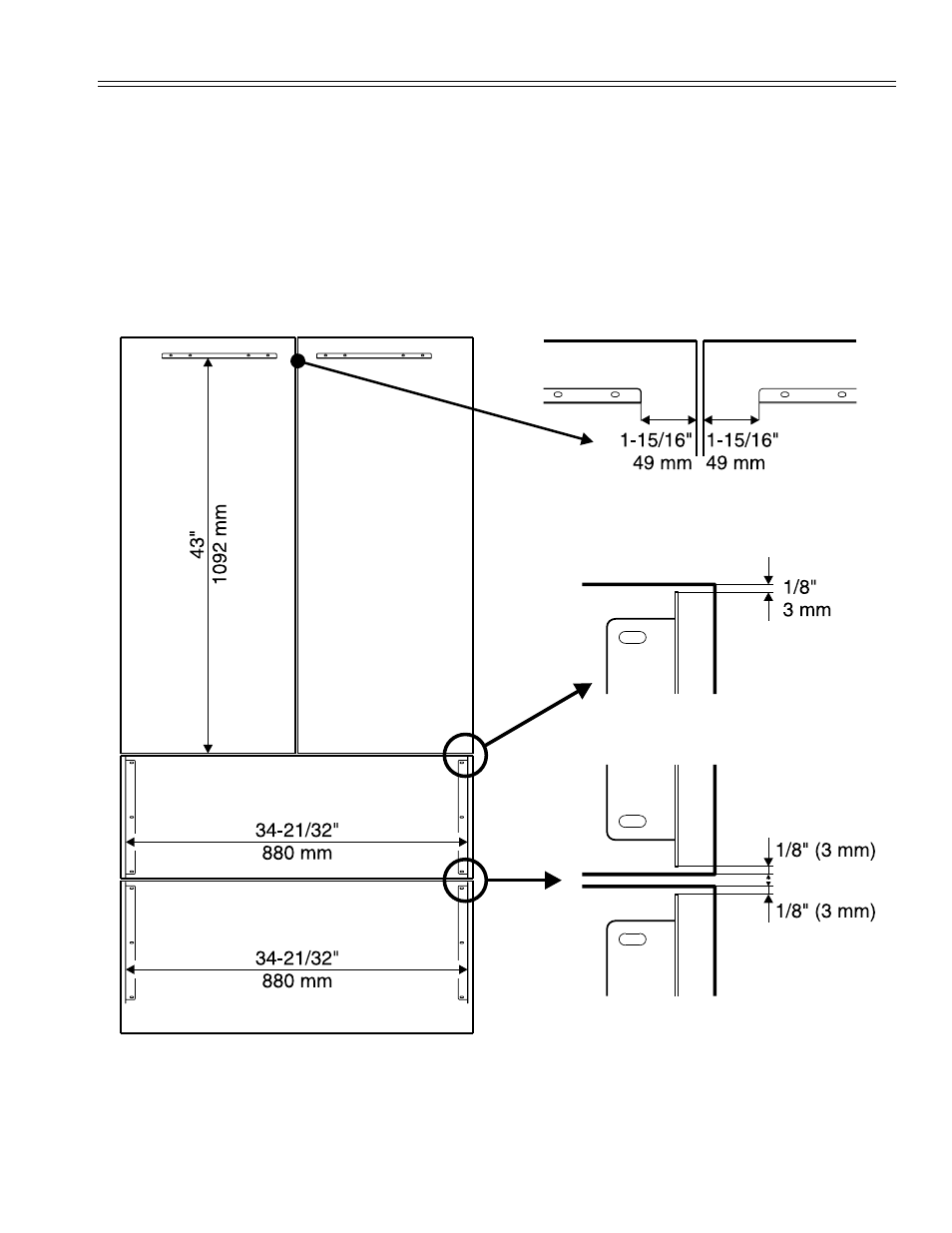

- Figure 22
Fasten the dismounted brackets of the refrigerator doors onto the refrigerator door panels using four
screws (4 x 16 mm) for each bracket.
Fasten the brackets provided onto the freezer drawer panels using three screws (4 x 16 mm) for each
bracket.
The measures for bracket attachment are the same at framed and frameless cabinets because the height
of the freezer panels is the same at both designs.
Figure 22
