Fasten the appliance in the

recess

- Figure 20

Fasten the appliance in the recess through the

upper and lower hinges of the refrigerator doors.

Use 2 screws for each hinge

(Figure 20).

Leveling the appliance

- Figure 19

1. The height can be adjusted in front by twisting

the leveling feet

2. Twist the adjusting bolt

to set up the back of

the appliance.

3. Rotate leveling feet

until firmly in place

against the floor.

To prevent the appliance from tipping

forward the leveling feet

(Figure 19)

must have contact with the floor.

4. Align appliance with sides of kitchen cabinets by

adjusting leveling feet and the supports.

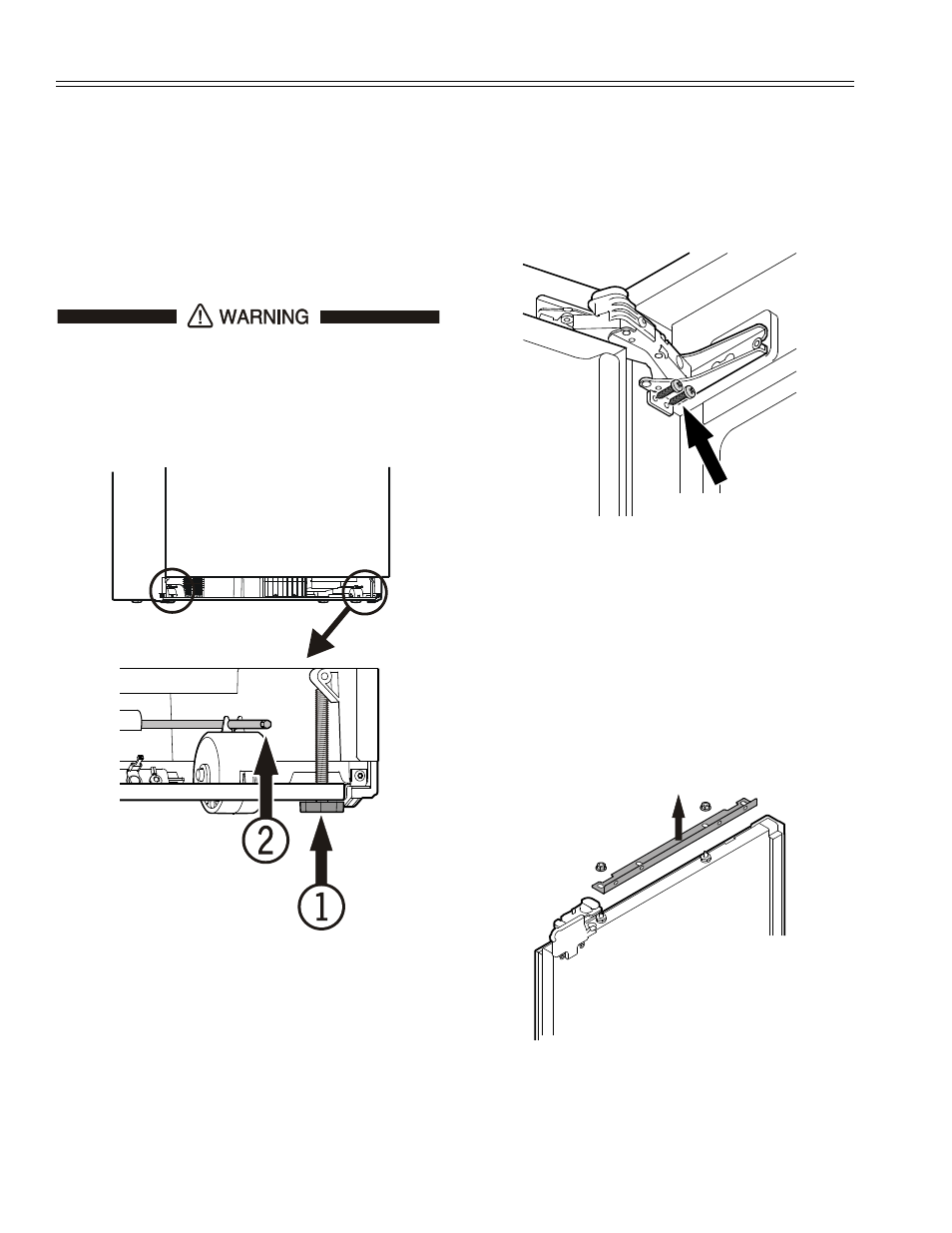

Figure 19

5 mm socket

27 mm wrench

screws

ø = 5/32" (4 mm)

length = 5/8" (16 mm)

Before mounting the door panels

- Figure 21
Unscrew the upper attachment brackets of both

refrigerator doors

(Figure 21).

Unscrew the hex nuts and remove the brackets.

These brackets will be mounted onto the

refrigerator door panels.

Figure 21
