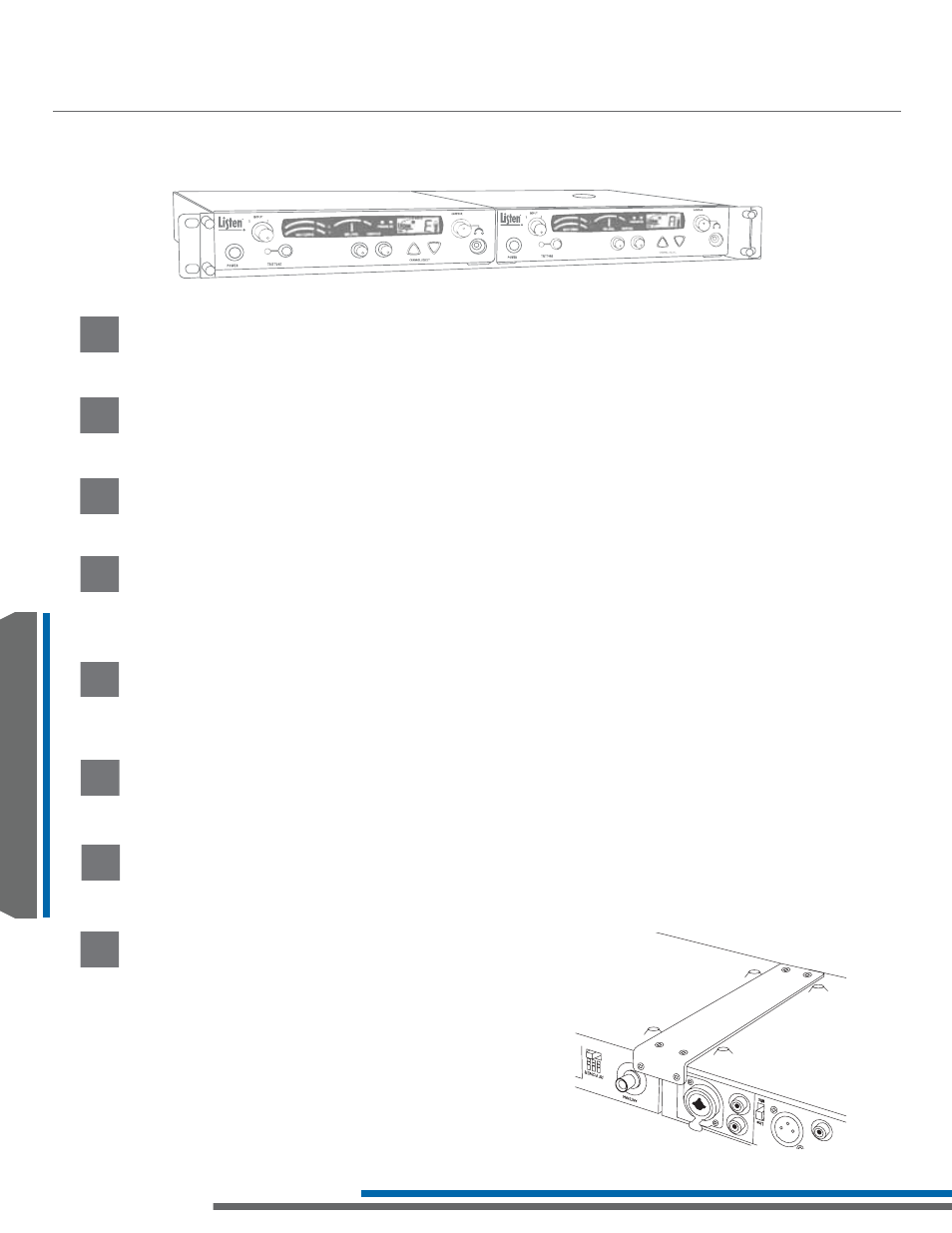

LA-326 Confi guration 4 Setup Instructions

Dual Units with Security Cover

1

2

Locate Parts

Locate parts A, C, D and F and bags E and G. The remaining parts will not be used in this

configuration.

Remove Screws

Remove the four outer screws from the bottom of both units you are rack mounting.

3

Pick Sides

Determine which unit will be on the right side of the rack (unit “1”).

4

Install part C

Install part C to the right side of unit “1” using two screws from bag E. Again, use the set of holes

toward the back of the bracket, making the unit recessed one inch from the front of the rack.

5

Install part A

Install part A to the left side of unit “2” using two screws from bag E. Again, use the set of holes

toward the back of the bracket, making this part sit one inch in front of the front edge of the

unit.

7

Remove Screw

Remove the screw that is near the remote antenna connection on the rear of unit “2”.

See figure B.

Install part D

Install part D to both units using six screws

from bag E.

8

Remove Screw

Remove the screw that is near input 1 connection on the rear of unit “1”.

6

figure B
