12

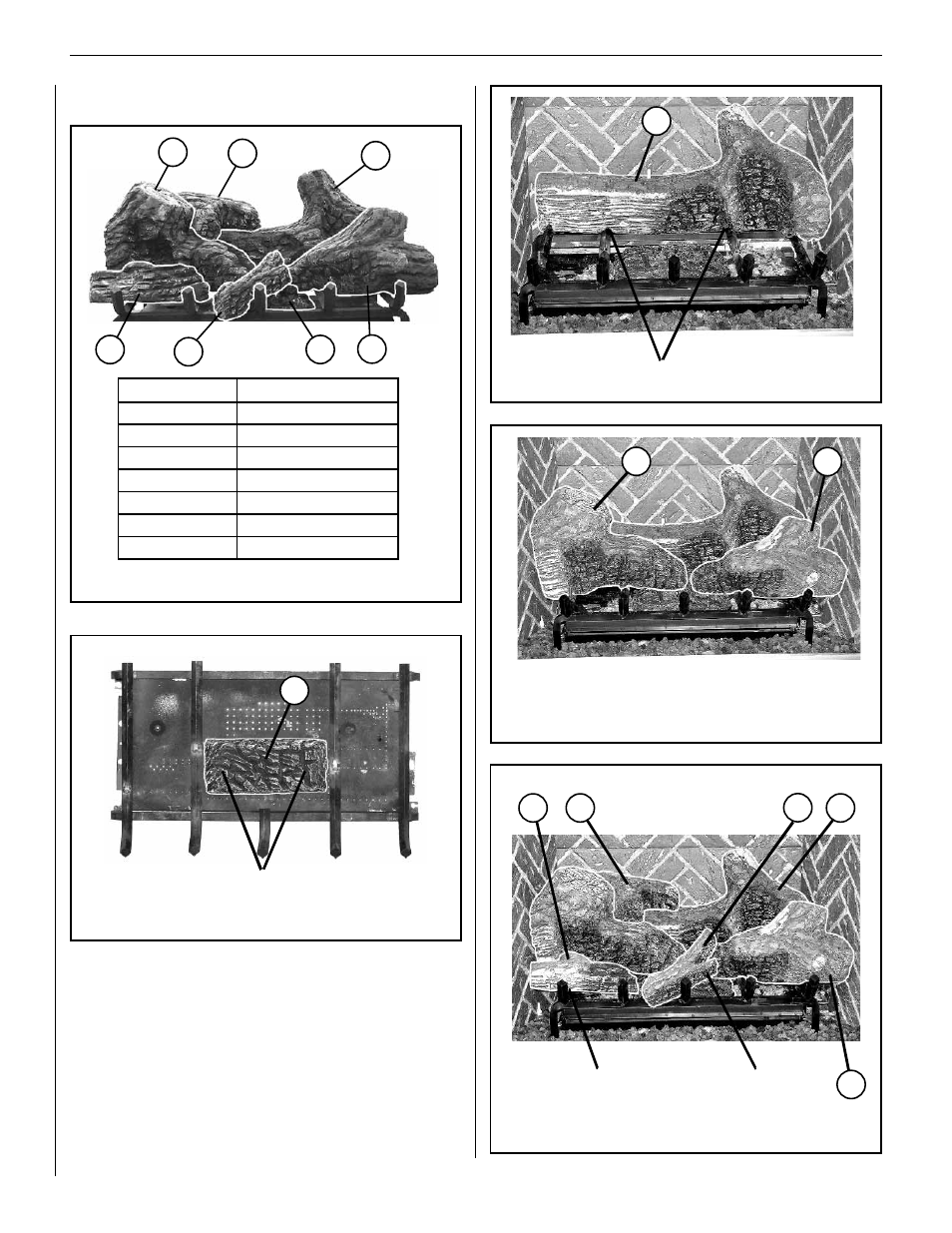

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Figure 8
Align Groove At The Bottom Of Log (2) Over
The Grate And Push It Towards The Rear.
2
Align Two Holes At Bottom Of Log (1)
Over The Pins On The Gas Burner.
Engage Logs (3 & 4) With The Grate Pins And Align Groves At
The Bottom Of The Logs Over The Grate.
4 3
Engage Log (6) With The Grate Pin
And Align Groove At The Bottom Of
The Log Over The Grate.
Align Hole At Bottom Of Log (5)
Over The Pin On Log (2).
Engage Log (7) With
The Pin On Log (4).
6 5 7
1
2
4
LSM40-2 & LSM45-2 Log Placement
3
2
4 1 6
5
7
Log Number Description
1 Log, Center
2 Log, Rear
3 Log, Center/Left
4 Log, Center/Right
5 Log, Rear/Top
6 Log, Front/Left
7 Log, Front/Center
Figure 9
Figure 10
Figure 11
Figure 12
