59

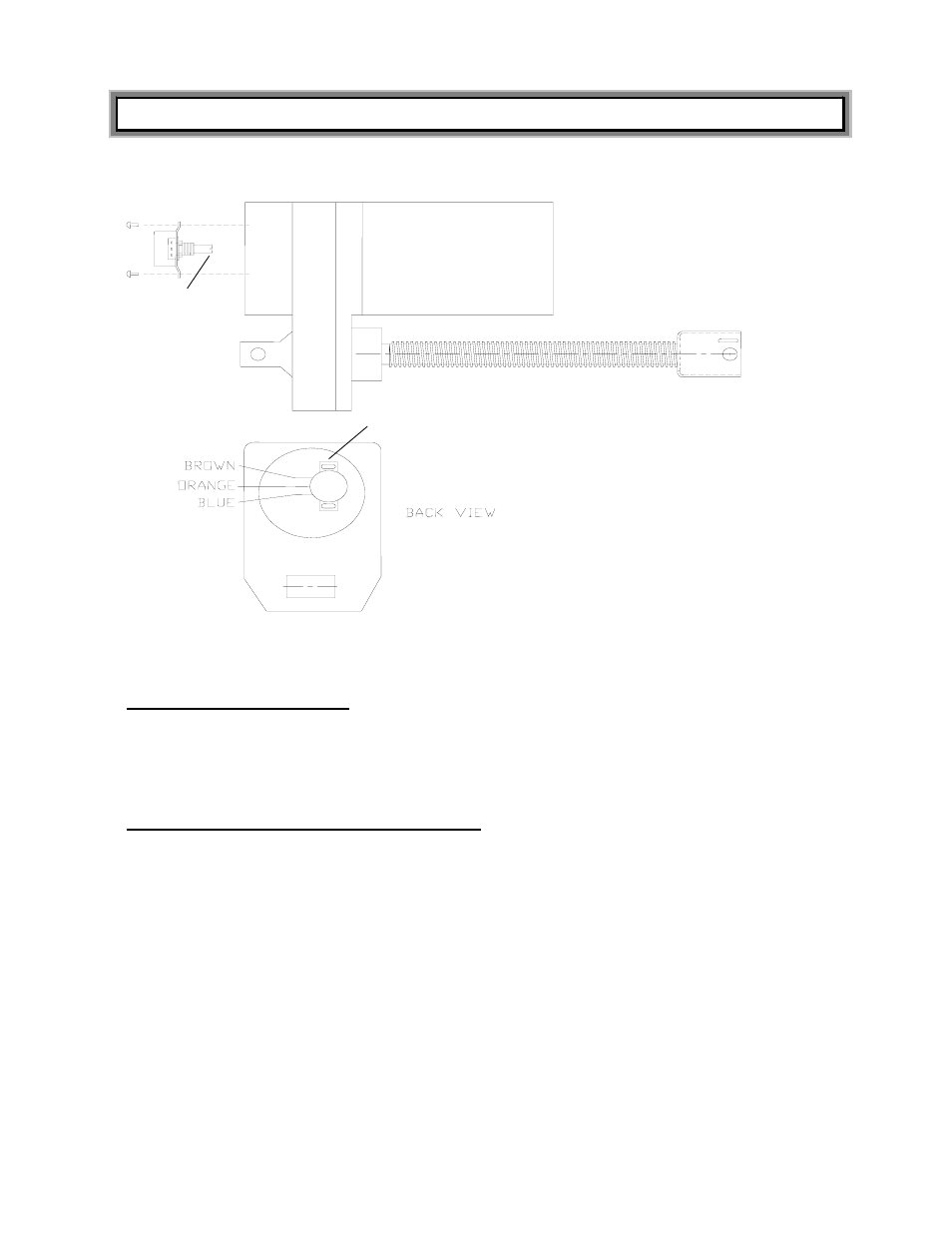

ELEVATION POTENTIOMETER CALIBRATION
Enter Diagnostic Mode:
1. Press OFF to turn treadmill off.
2. Hold START and DISPLAY at the same time, then release the buttons when
the treadmill lights up.
Calibrate the elevation potentiometer:
1. Visually confirm treadmill is level. (0% grade)
2. The potentiometer should read between 1 and 4 in the selectable display
window.
3. If the setting is incorrect, follow the steps below.
STEP 1: Turn the post of the potentiometer all the way CLOCKWISE.
STEP 2: Slowly turn the potentiometer COUNTER-CLOCKWISE until the
setting is correct.
4. Carefully install potentiometer into the motor housing.
*NOTE: The setting may vary when inserting the potentiometer into
the motor. As long as the change is minimal, fine adjustment can be
achieved after the potentiometer is secured in motor housing.
5. Press OFF to turn treadmill off.
P/N # 70088 11 0vo lt
P/N # 70126 22 0vo lt
P/N #7 1013
N OT E: ELON GA TED BR AC KET HO LES AR E FO R
POT EN T IO M ET ER F IN E AD J US TM EN T .
AD JU ST M EN T
SH AF T
ELE VAT IO N
POT EN T IO ME TE R
E LEVA TION MO TO R
EL EVAT ION N U T
