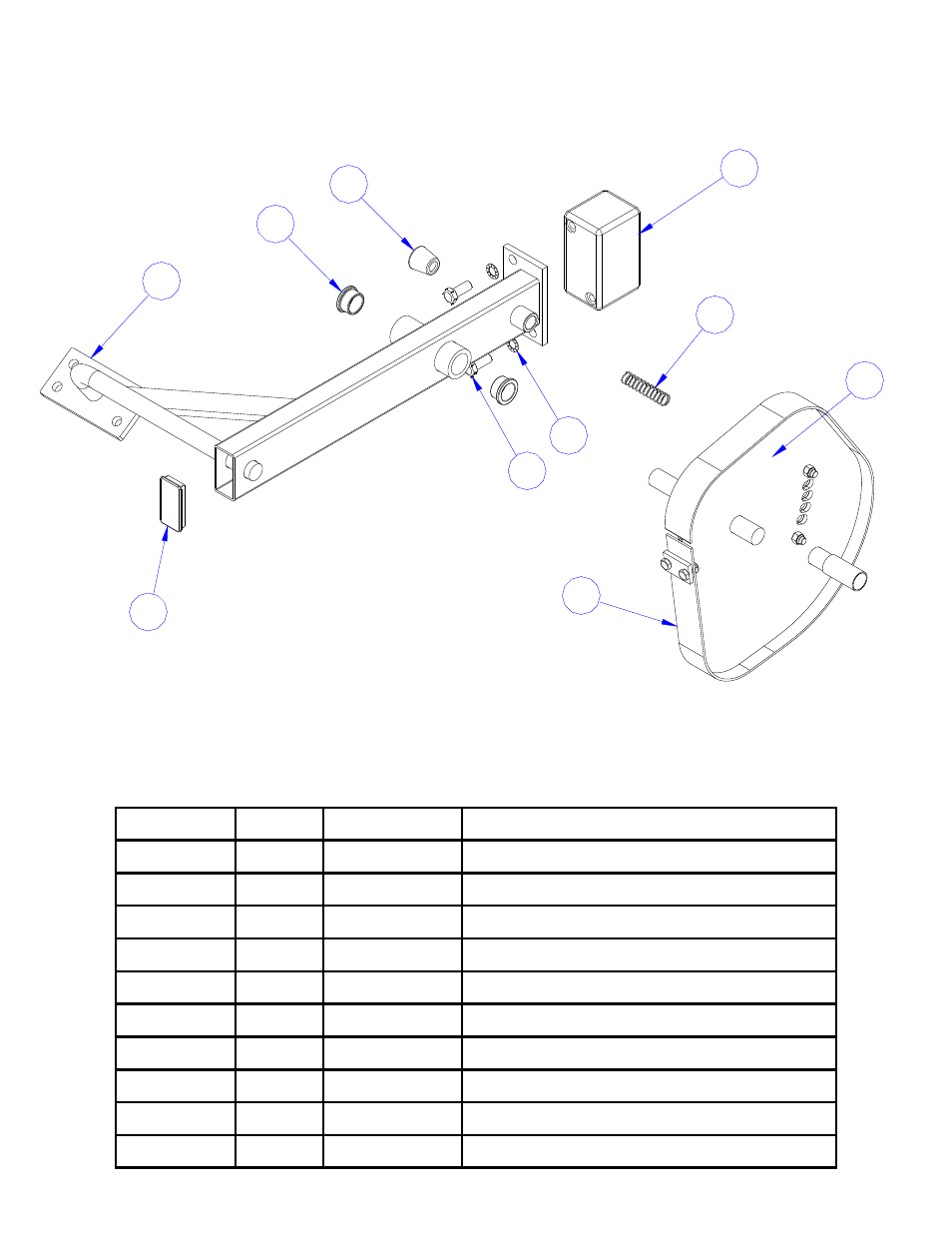

LEFT WORK ARM ASSEMBLY - 7522001
________________________________________
MTSLE LEG EXTENSION
3
2
9
7
8
5
1
6
4
10
ITEM NO.
QTY.
PART NO.
DESCRIPTION
1
1
7519001
WLDMT, MTLE, MOVE ARM LEFT
2
1
7351501
SPRING; PULL PIN LARGE
3
1
7351300
PIN, PULL
4
1
7351401
KNOB, TULIP STYLE
5
2
3104906
1.00" ID 1.25" OD BRONZ BUSHING
6
1
7477401
CAP. END, 1-1/2 X 3, 11GA SGRY
7
1
7522101
ASSY, MTLE, CAM LEFT
8
1
7802201
COUNTER WEIGHT, MTLE
9
2
3239305
1/2-13 X 1.25 UNS HEX FHB G5 ZN
10
2
3239505
WSH, .500 IN-D ST ZN
