12 Plasma TV
Installation

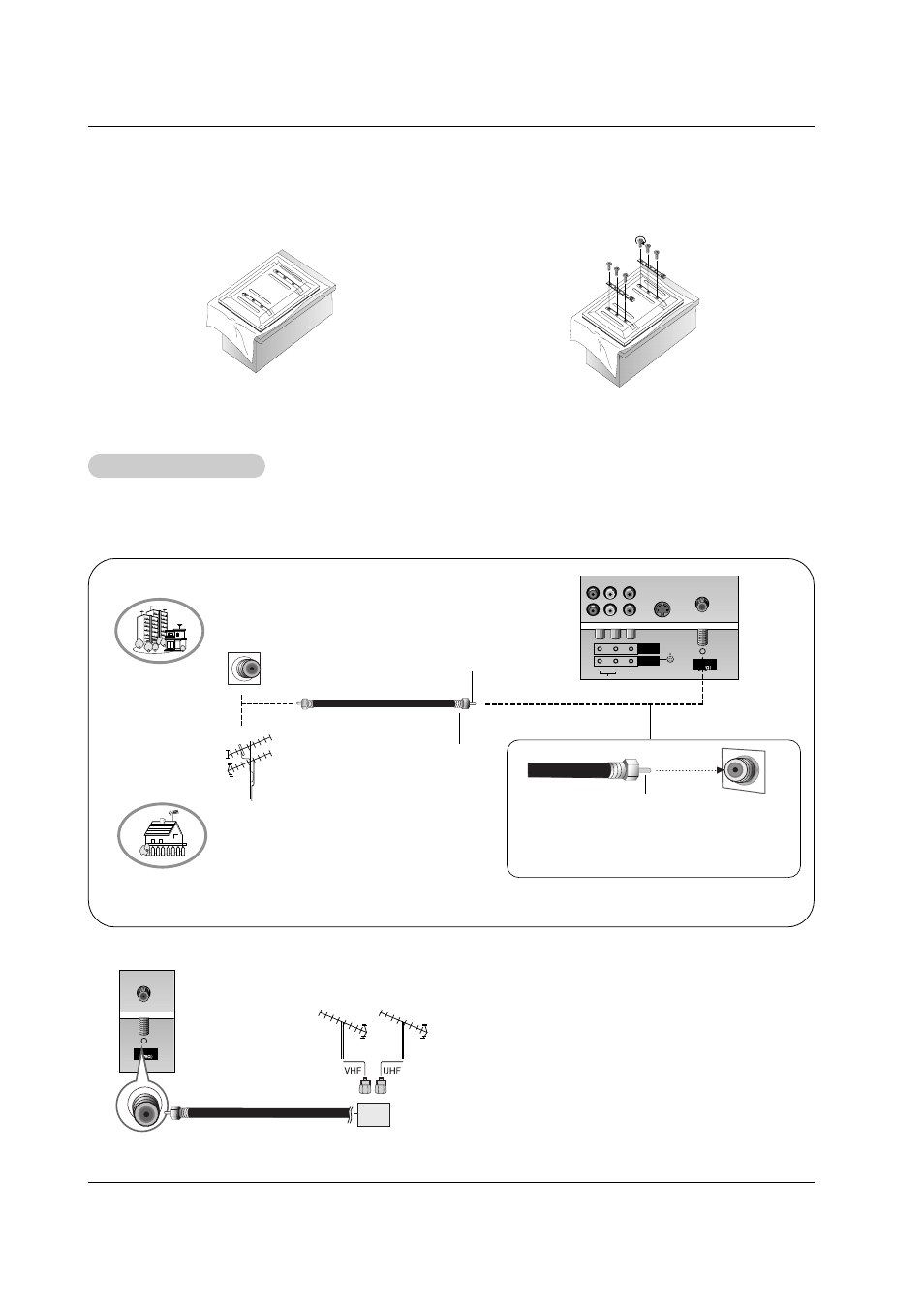

- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
External Equipment Connections External Equipment Connections
Antenna Connection Antenna Connection
• To improve picture quality in a poor signal area, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-Way
Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your dealer
for assistance.
Antenna O
Signal
Amplifier
Antenna S-VIDEO
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO VIDEO
(L/MONO) (R)
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
outdoor
antenna
wall antenna
socket
VHF antenna
UHF antenna
RF coaxial wire (75 ohm)
Bronze Wire
Turn clockwise to tighten.
Bronze Wire
Be careful not to bend the bronze wire when
connecting the antenna.
1. Put the RING SPACER in the holes of the bolts before con-
necting to the wall mounting bracket.
2. When you connect the wall mounting bracket to the set,
connect to it by using the bolts, (supplied with the product),
as shown.
• Install the RING SPACER with the bolts on the set as shown. (Only RU-60PZ61 series)
