STEP 1:

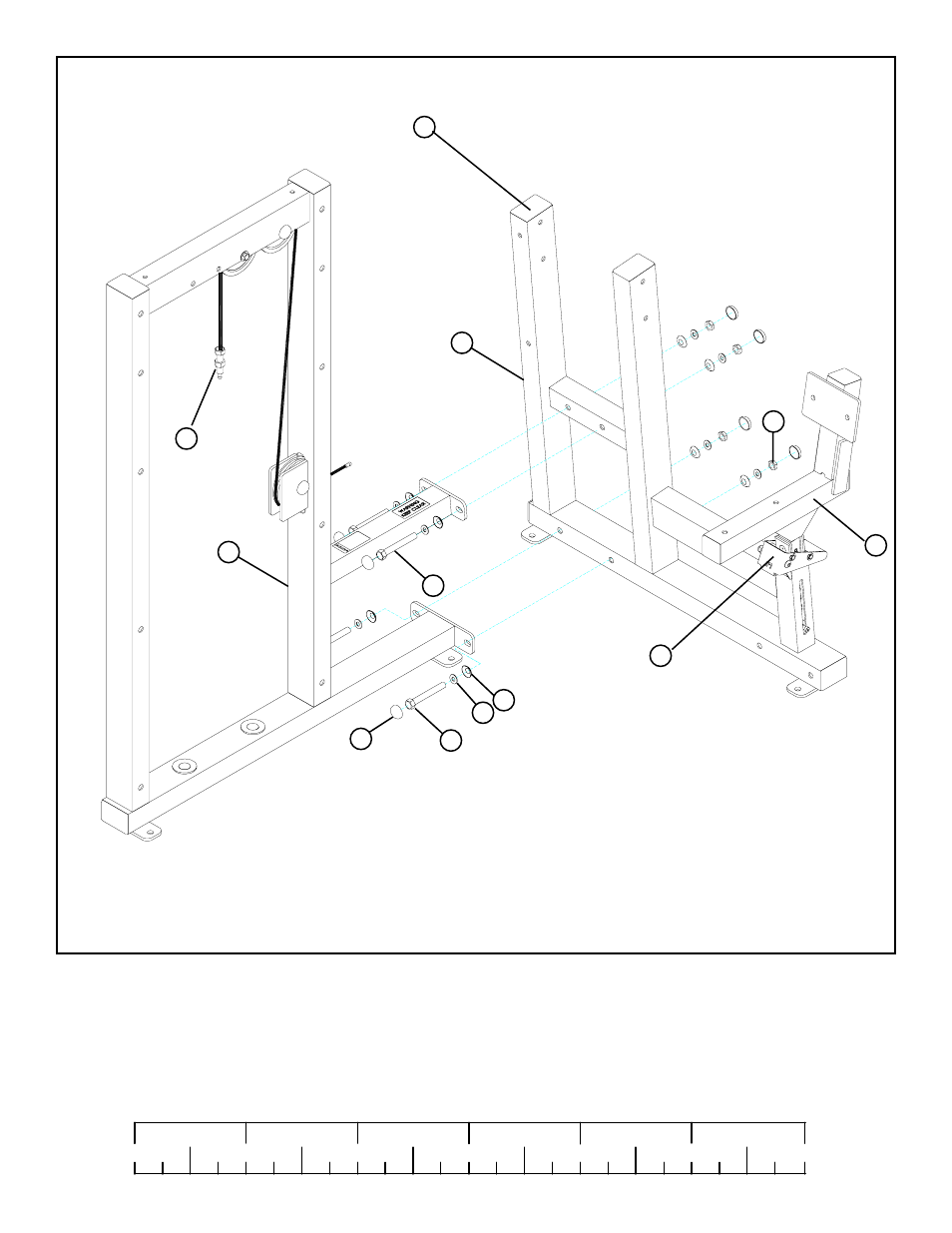

FIGURE 1
4
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
1
3
• LOOSELY assemble the SEAT FRAME (3) to the lower tube on the TOWER (1) using four RH CAPS (26), two 3/8 X 3-3/4”
BOLTS (15), four 3/8” SAE WASHERS (19), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (17) as
shown in FIGURE 1.
15 3/8 X 3-3/4”
17
20
19
26
• LOOSELY assemble the SEAT FRAME (3) to the upper tube on the TOWER (1) using four RH CAPS (26), two 3/8 X 2-3/4”
BOLTS (12), four 3/8” SAE WASHERS (19), four 3/8” RH WASHERS (20) and two 3/8” LOW HEIGHT LOCK NUTS (17) as
shown in FIGURE 1.
3/8 X 2-3/4” 12
1A
3A
3D
3B
