STEP 12:
• Insert the two GUIDE RODS (32) FOUND IN SHROUD KIT into the base of the TOWER (1) as shown in FIGURE 12. Lubricate
the GUIDE RODS (32) with a silicon or teflon spray that is available at most hardware stores.
• Slide two WEIGHT STACK CUSHIONS (23) down over the GUIDE RODS (32). See FIGURE 12.
• Using EXTREME CARE place fifteen 10 LB. WEIGHT PLATES (33) over the GUIDE RODS (32) as shown in FIGURE 12.(NOTE:
If HEAVY WEIGHT OPTION is being used, slide ten 15LB. WEIGHT PLATES (34) over the GUIDE RODS (32) first, then
slide five 10 LB. WEIGHT PLATES (33) over the GUIDE RODS.)
• Carefully Slide the HEAD PLATE (9) down over the GUIDE RODS (32) onto the weight stack as shown in FIGURE 12.
• Slide one WEIGHT STACK SELECTOR PIN (22) over the shaft on the HEAD PLATE (9) as shown in FIGURE 12.

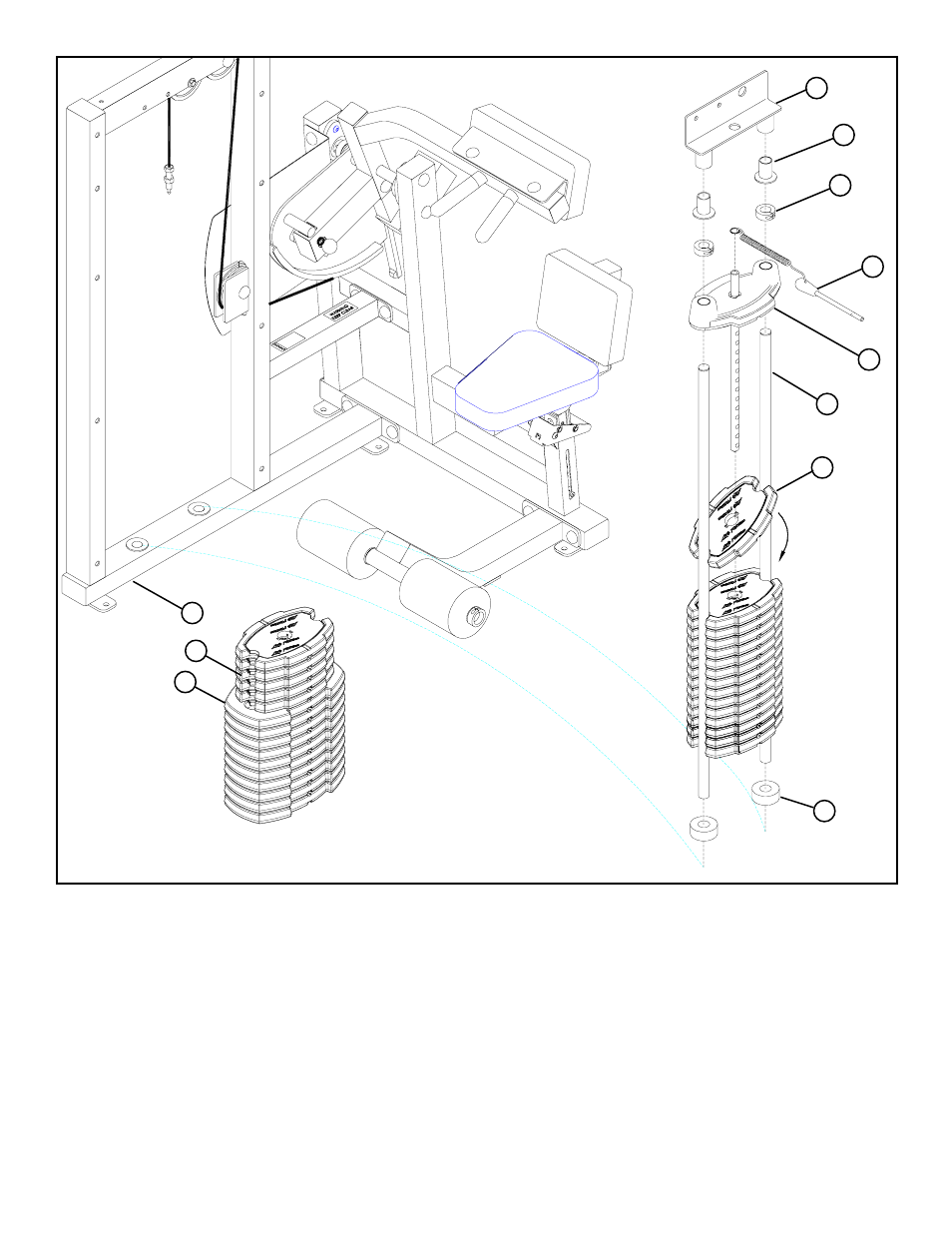

FIGURE 12
12
• Slide two GUIDE ROD BUSHINGS (27) over each GUIDE ROD(32)
• Slide two 1” SHAFT COLLARS (25) over each GUIDE ROD (32) as shown in FIGURE 12.
• Place the GUIDE ROD SUPPORT (5) over the GUIDE RODS (32) as shown in FIGURE 12.
23
33
32
9
22
25
27
5
1
HEAVY WEIGHT
OPTION
34
33
