Life Fitness Heavy Duty Power Rack User Manual
Page 15
15

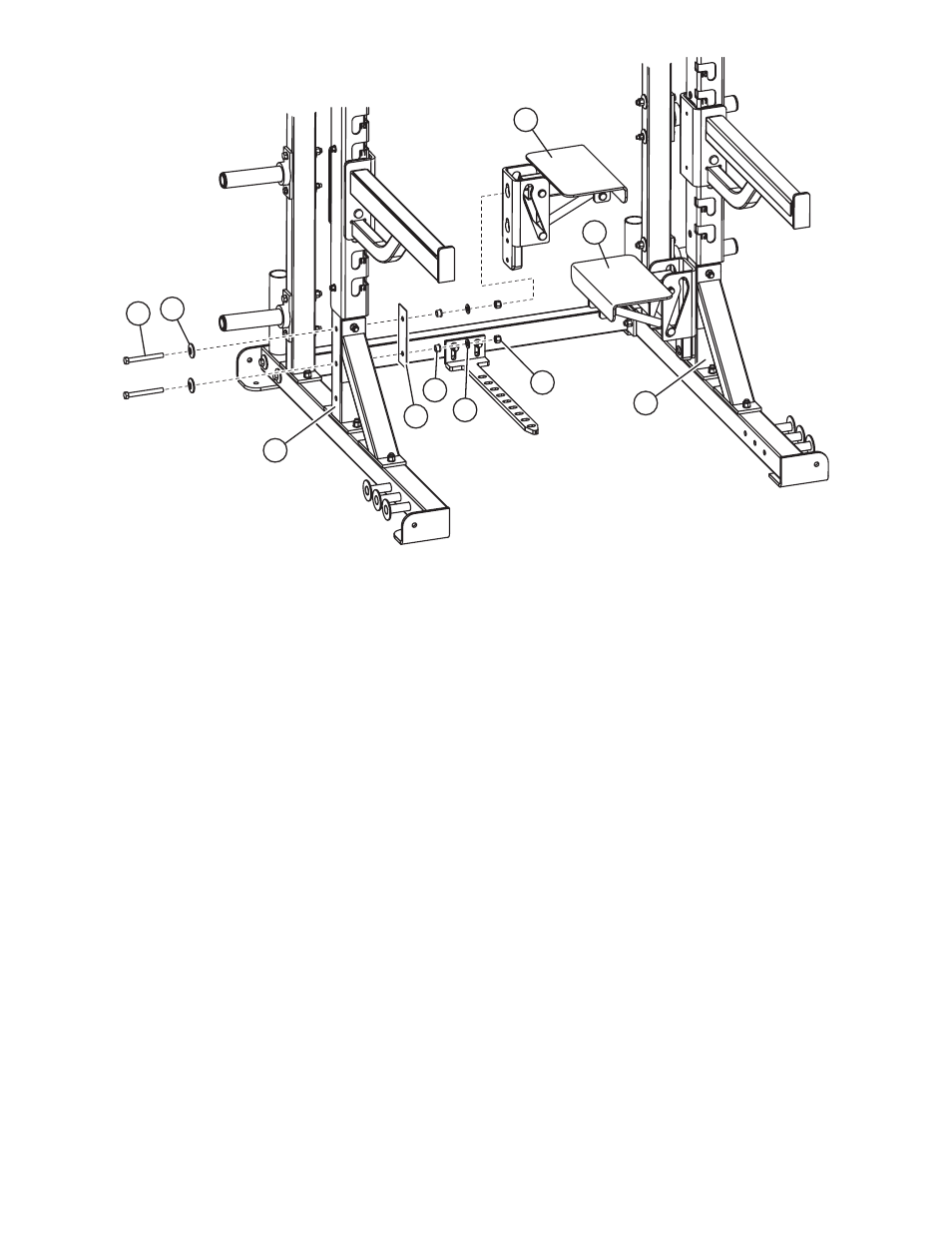

STEP 8:
Spotter Platform accessories are available for the HDPR8.
Assemble each Spotter Platform (C) to the FRONT LEFT & RIGHT UPRIGHTS (1 & 7) using two BOLTS (D), two
DOME WASHERS (E), two SPACERS (F), one WEAR PLATE (G), two FLAT WASHERS (H), and two NUTS (I) as
shown in the illustration.
NOTE: All necessary hardware for the Spotter Platform assembly is included with the accessory.
Make sure the flange on the SPACER (F) faces the inside of the rack.
C
E
D
H
1
G
F
I
C
7
