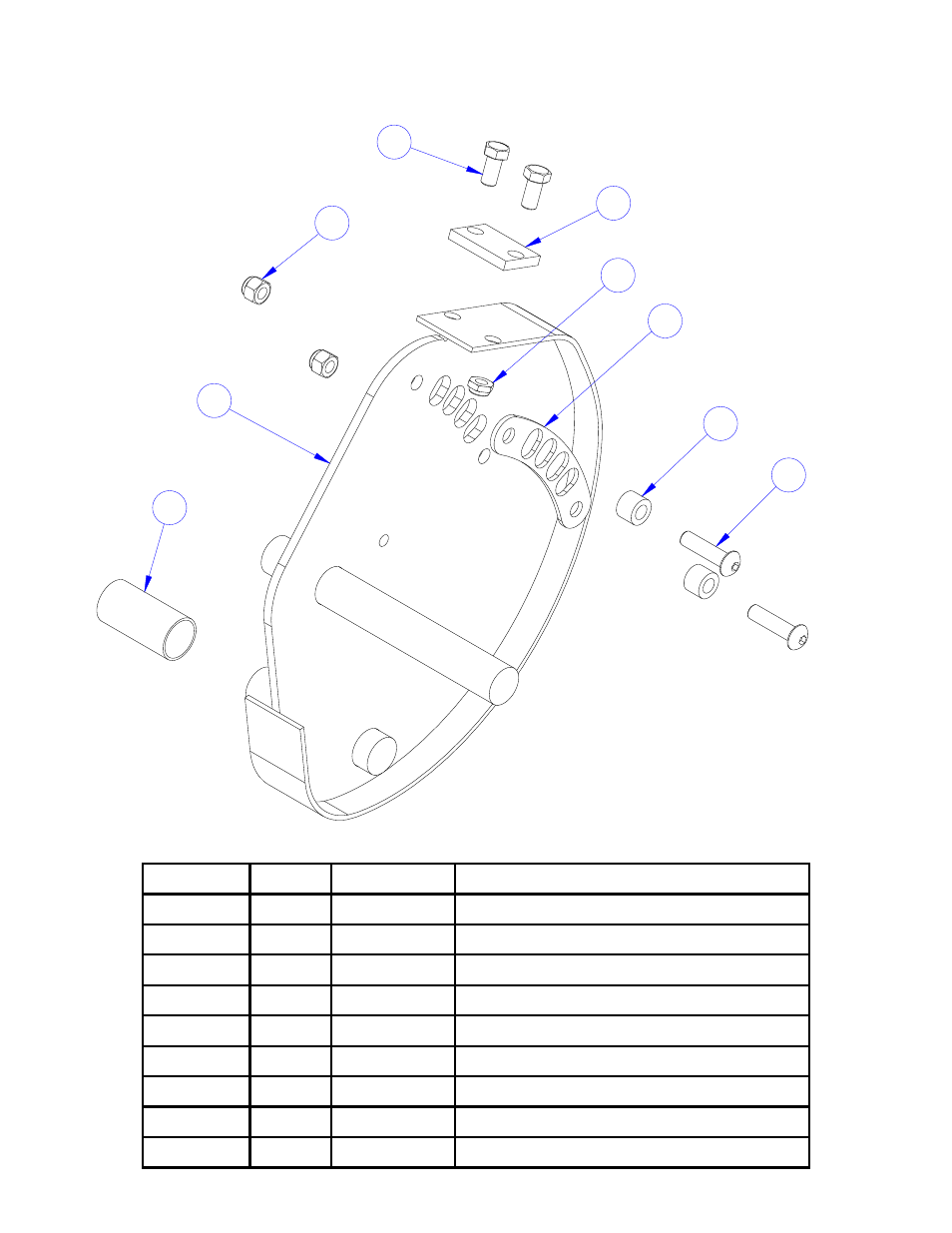

MTSRL RECIPROCATING LEFT

RIGHT CAM ASSEMBLY - 7538801

________________________________________

Page 11

ITEM NO.

QTY.

PART NO.

DESCRIPTION

1

1

7536801

WLDMT, MTLC, CAM RIGHT

2

2

7559901

SPACER, MTS, .39 ID X .69 OD X .50

3

2

3102802

NUT, NYLOCK 3/8-16

4

2

3202409

3/8-16 X 1.5 BH SCREW

5

1

7522201

PLATE, MTS, SELECTOR, 4 POS

6

2

3102807

NUT, NYLOCK 3/8-16 LOW HT

7

2

3239803

3/8-16 X 16 HEX HEAD BOLT

8

1

7436695

PLATE, MTS, BELT CAM ATTACH

9

1

3235801

GRIP, SHADOW GRAY, 2.25"
