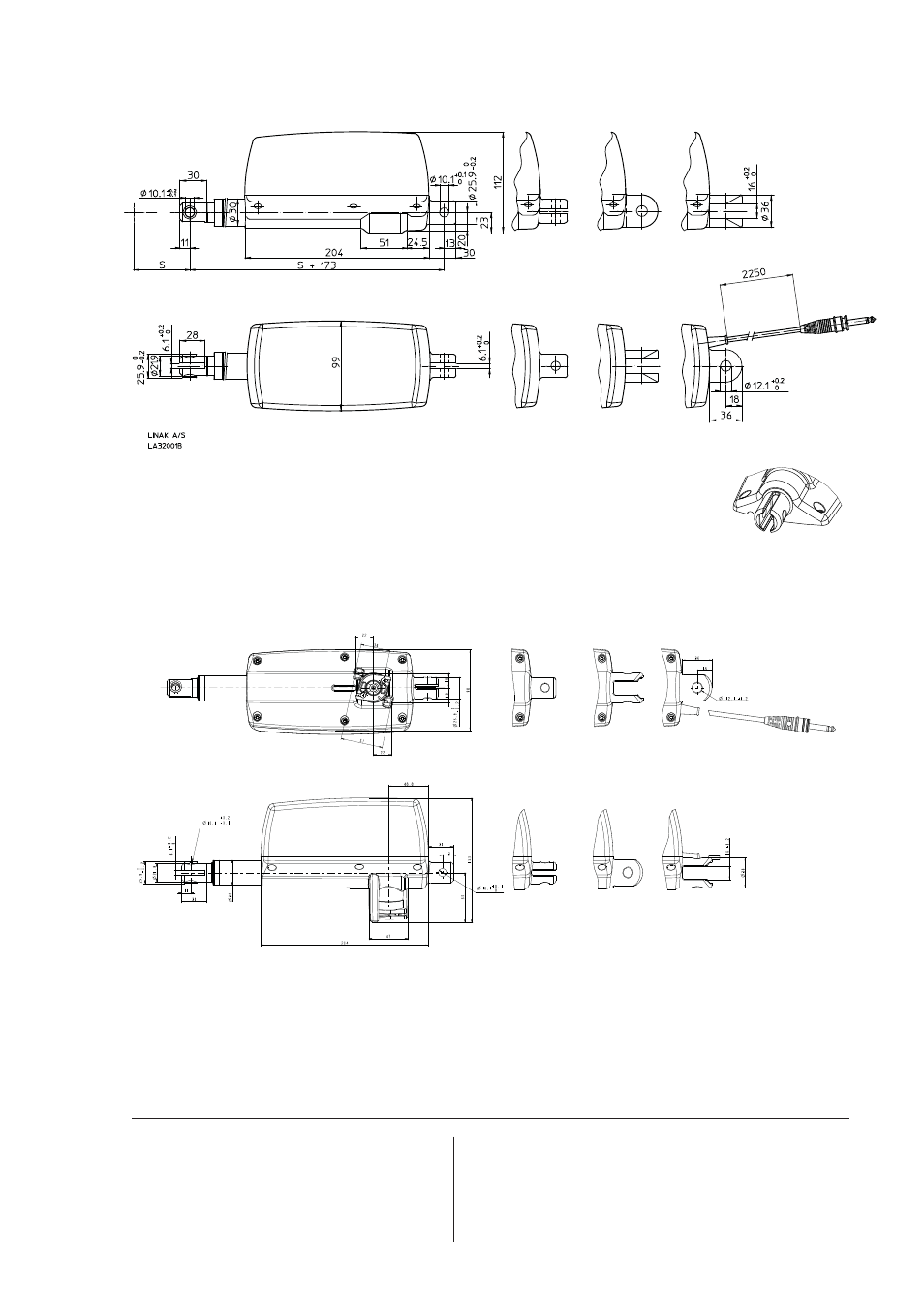

Dimension:

Installation dimensions:

S + 173: (with/without safety nut)

(Min. install dim. 273 mm) S + 181: (LA323. with/without safety nut)

S + 184: with splines

S + 198: with splines and safety nut

S + 210: LA32K, LA32KAS, LA32 with safety nut

S + 215: with brake

267:

LA32KSM

Install. dimensions:

S + 173: LA32.F

196:

LA32FH

LA32 with quick release:

3D view of the back fi xture.
(here type “01” is shown.
Drawing no.: 0321200

01 02 05 06

05 06

F O R M O U N T I N G I N S T R U C T I O N S A N D G U I D A N C E I N U S A G E , P L E A S E S E E T H E R E L E V A N T U S E R ’ S M A N U A L S
