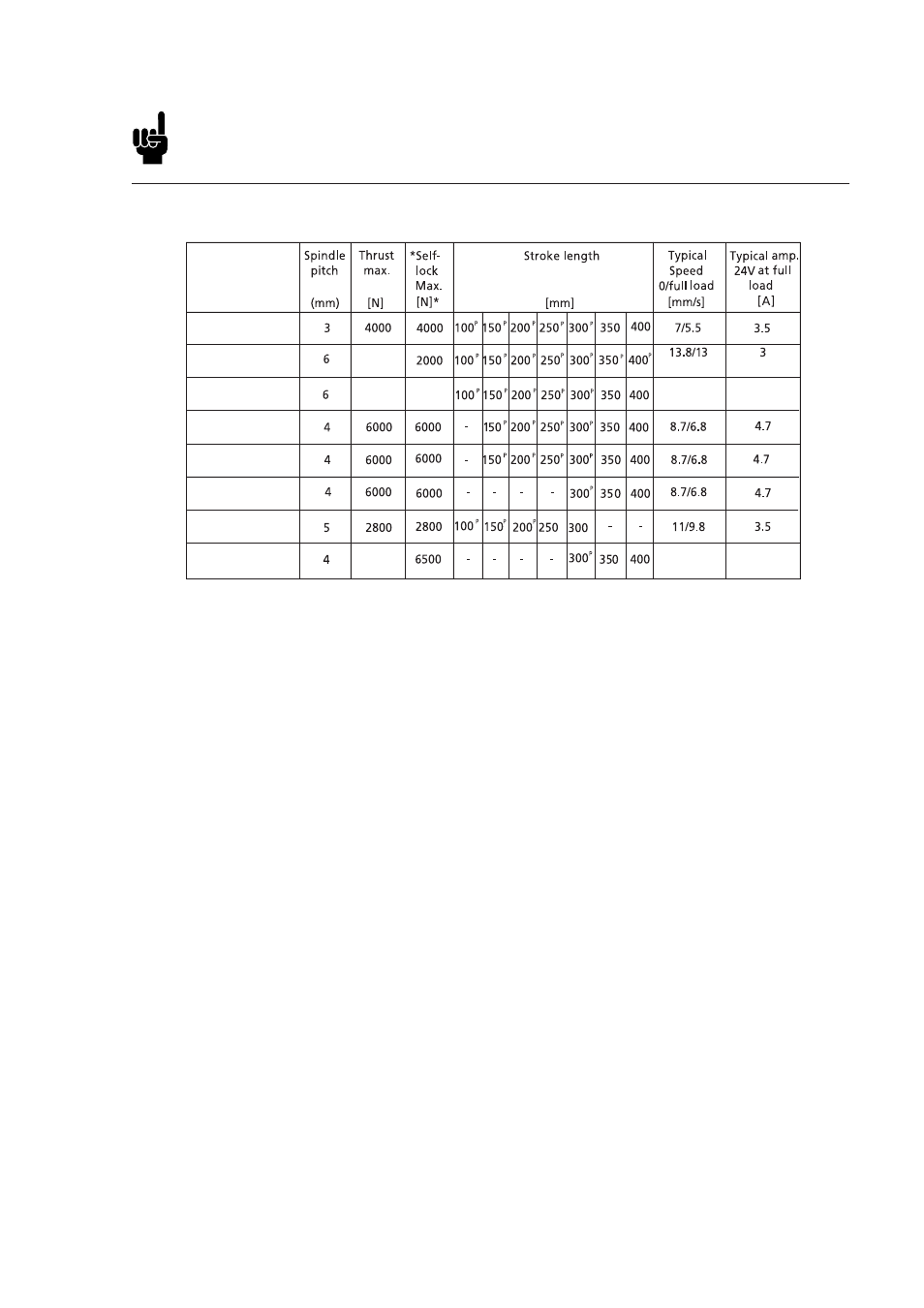

Technical specifications:
Type
321xxx+00xxx4xx
322xxx+00xxx4xx
322xxx+40xxx4xx
32Kxxx+x0xxx4xx
32Kxxx+10xxx4xx
32Kxxx+30xxx4xx
328xxF+x0xxx4xx
32Kxxx+30xxx3xx
(2000N)
4.5
9.5
(7500N)
# #
(2000N)
13.6/8.5
15/6.5
(7500N)
3000
3000 3000
Push
7500
P = Stroke lengths where potentiometer is possible as standard
* LINAK control boxes are designed so that they will short-circuit the motor terminals (poles) of the
actuator(s) when the actuator(s) are not running. This solution gives the actuator(s) a higher self-locking
ability. If the actuator(s) are not connected to a LINAK control box the terminals of the motor must be short-
circuited to achieve the above mentioned self-locking ability.
# = Not with spindle potentiometer (stroke length max. 220 mm)
K = Ball screw
KAS = Ball screw with safety nut
KSM = Ball screw with splines and safety nut
R
= Reed-switch
F = Manual quick release
FH = Manual quick release with dampened movement
KAS and KSM are only available on LA32K (with ball screw)
The above measurements are made in connection with a CB12, the LA32JKSM with a CBJ1 high speed.
Maximum load in pull = 2000N
