Connection
Wiring Loewe Flat-TV (from L2700) – Individual Sound
Loewe Flat-TV
ON
Line IN
Power OUT
OFF
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw. Left
Right Center Left
R
R
L
C
L
Bass Intensity
Phase
Min. Max.
0 180
Crossover Frequency Audio Link
System connector
50 250.
Loewe Individual Sound System (Subwoofer)
➠ The TV set must be equipped with an AC module. If this has not been done
at the factory, please consult your dealer and ask him for the suitable Loewe
AC upgrade kit.

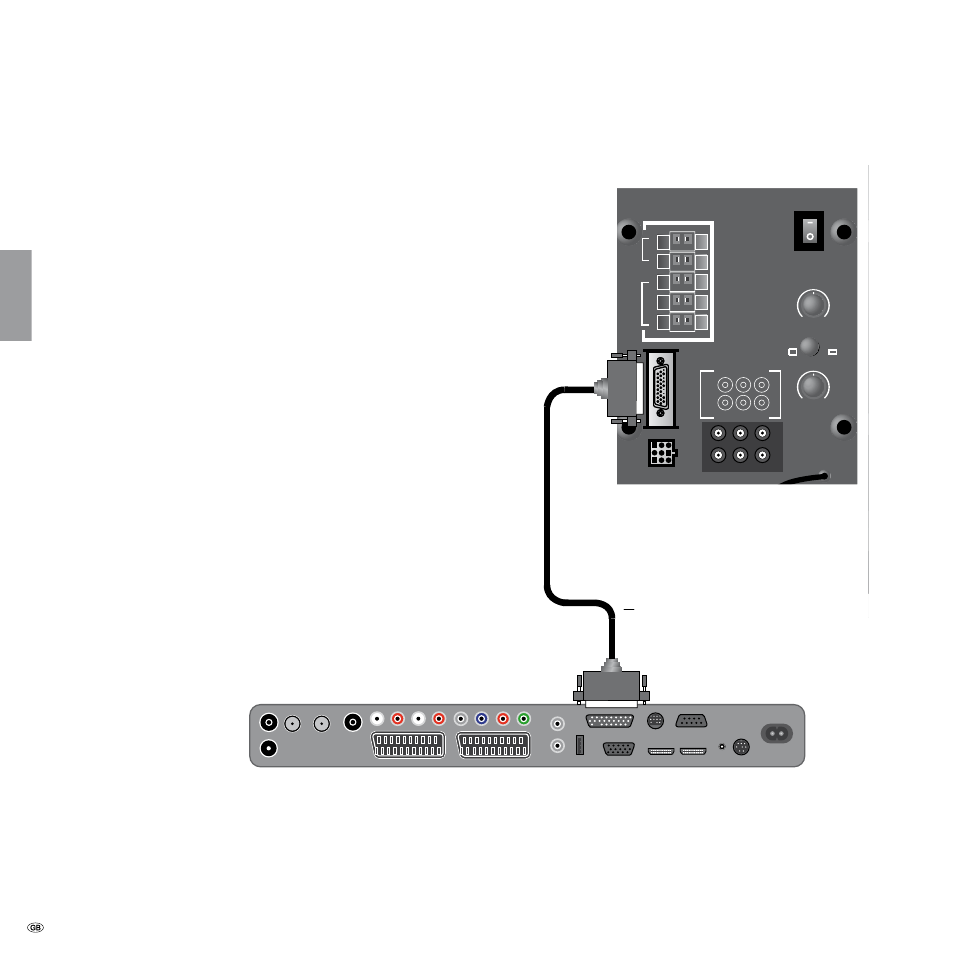

Mount the Audio Link cable with the 5-pin plug on the TV set and subwoofer.
Audio Link cable
