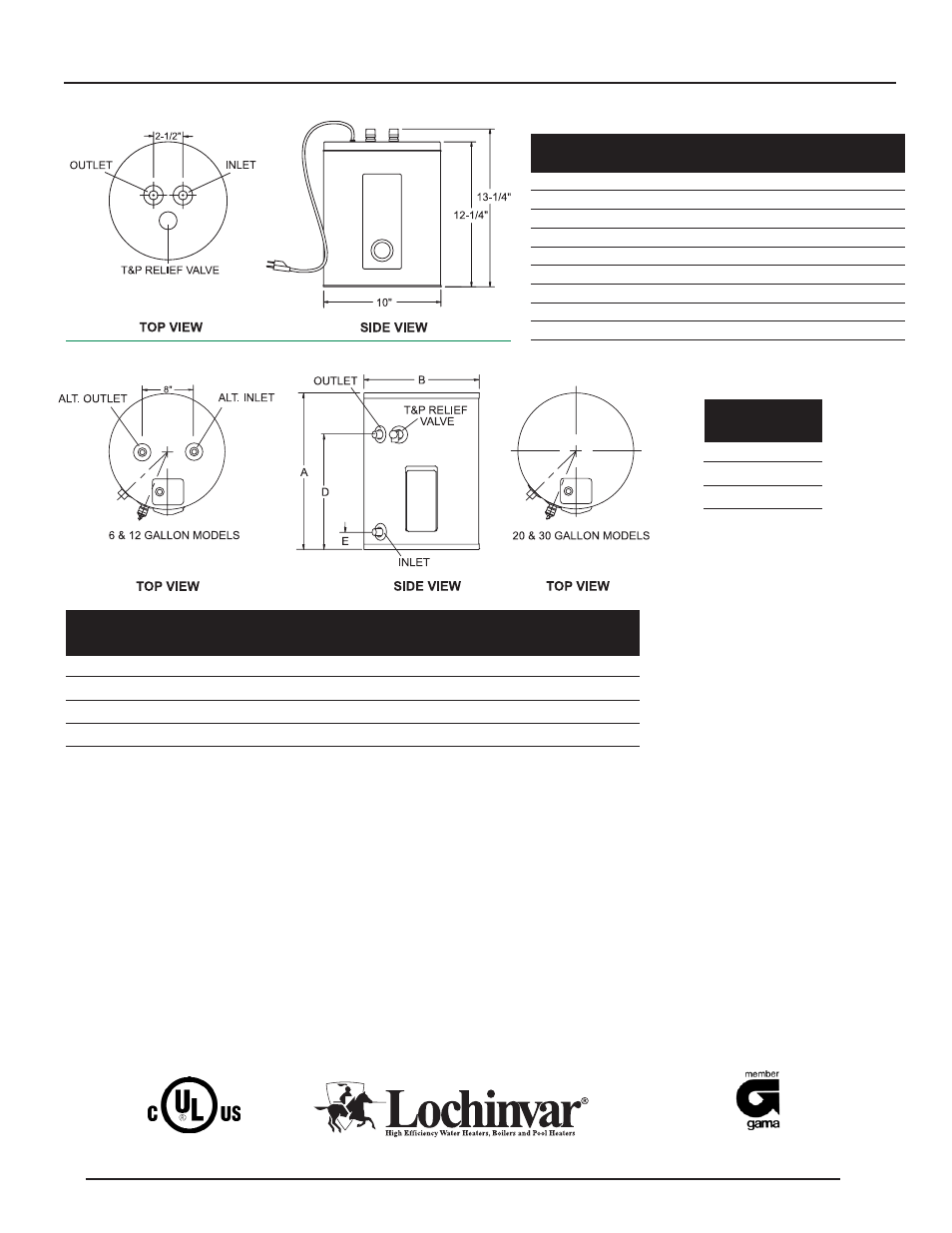

Junior Electric Water Heaters Dimensions & Specifications
6 - 30 gallon models
2 gallon model
Model Gal. Shipping
Number Cap. A B D E Weight
JRCOO2E* 2 12-1/4” 10” 13-1/4” 13-1/4” 14
JRC006E 6 16-1/2” 14” 10-1/4” 3” 33
JRC012E 12 27-3/4” 14” 21-1/4” 3” 48
JRC020E 19 24-3/4” 18” 18-1/4” 3” 59
JRC031E 30 30” 22” 23-1/2” 4-1/2” 82
Notes: Standard wattage and voltage: 1500w / 120v. Water connections are 3/4" NPT.
Maximum wattage for 6 and 12 gallon is 3000w.
Maximum wattage for 19 and 30 gallon is 6000w.
* 2 gallon is available in 1500w / 120v only.
Recovery Rate (GPH @ °F Rise)
Element Wattage 40 50 60 70 80 90 100
E 1500 16 12 10 9 8 7 6
F 2000 21 17 14 12 10 9 8
G 2500 26 21 17 15 13 11 10
H 3000 31 25 21 18 16 14 12
J 3500 36 29 24 21 18 16 14
L 4000 41 33 28 24 21 18 17
K 4500 47 37 31 27 23 21 19
M 5000 52 41 34 30 26 23 21
P 6000 62 50 41 35 31 28 25
VOLTAGE
SCHEDULE
C – 120V 1ø
J – 208V 1ø
A – 240V 1ø
NOTE: Max wattage @120V is 3000W.
Wattage Schedule and Recovery Rates
