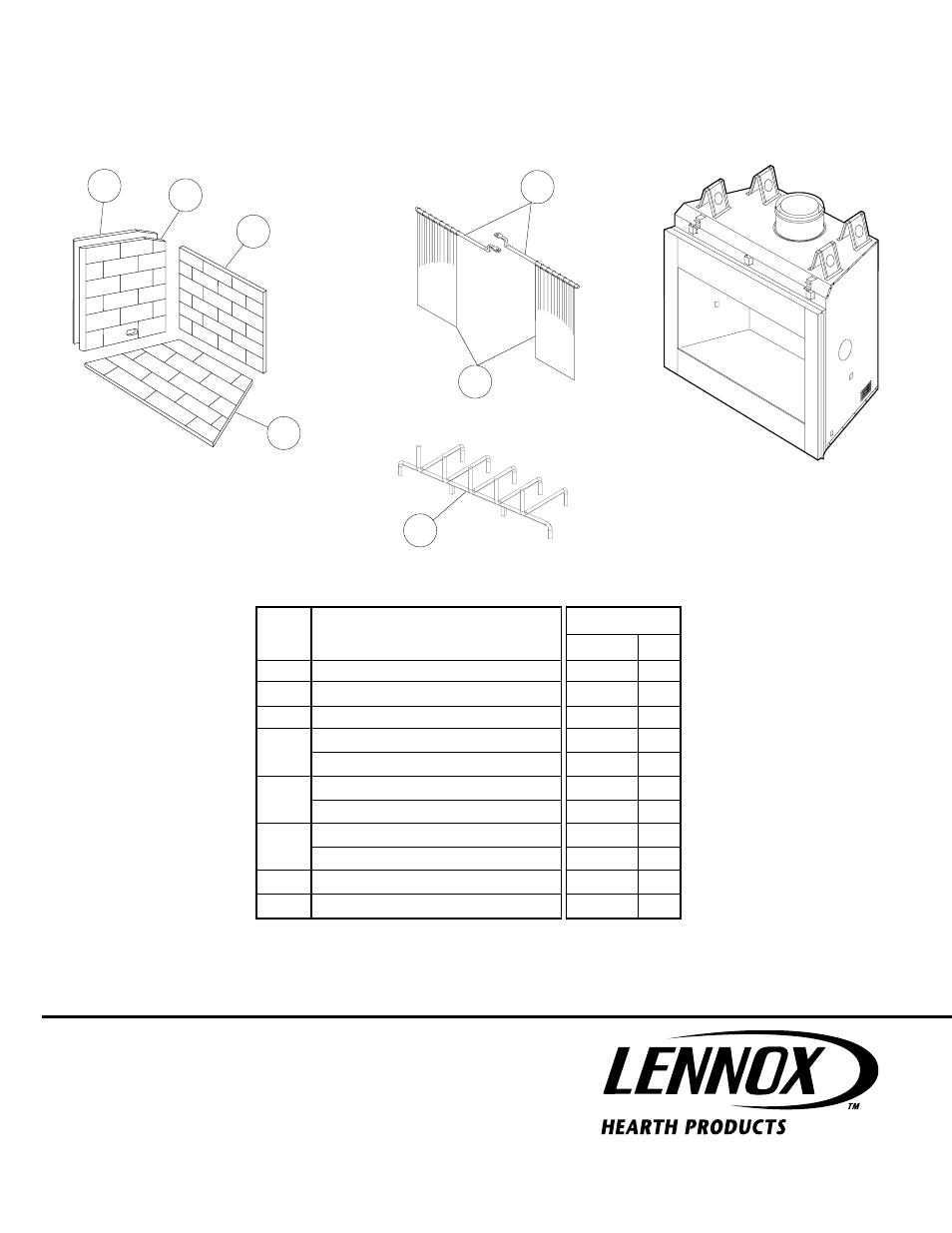

REPLACEMENT PARTS
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Printed in U.S.A. © 2000 by Lennox Hearth Products
P/N 504,218M REV. D 04/2007
Model LA41
No. DESCRIPTION Part No. Qty.
Fireplace Assembly – –
1. Firescreen 52L52 2
2. Rod, Screen 88L89 2
3. Refractory, Side, Right (Traditional) 52L50 1
Refractory, Side, Right (Tudor) 52L55 1
4. Refractory, Side, Left (Traditional) 52L50 1
Refractory, Side, Left (Tudor) 52L59 1
5. Refractory, Rear (Traditional) 52L49 1
Refractory, Rear (Tudor) 52L54 1
6. Refractory Base 52L53 1
7. Grate 92L91 1
2
1
3
5
6
4
Traditional
Panels Shown
7
