SPECIFICATIONS - Optima 3 FS
PAGE 35
Flue Size 3” / 76mm Rear
Width, Overall 25 7/8”
Depth, Overall 24 7/8”
Depth, Overall w / 3” tee 30 3/4”
Height 31 3/8”
Floor to Rear
Flue
Center 16 7/8”
Facing Back of Unit,
outside edge on right
to center of rear
flue
outlet 5 1/8”
Floor to Rear
Outside Air Inlet
Located on center-
line of pedestal back.
10”
Facing Back of Unit
outside edge on right
to center of air inlet
12 15/16”
Floor Protection + Front and Side: 6”/152mm
Requirements Back: Up to 6” / 152mm
Standard Features Fastfire Self Igniter
Wall Thermostat
(wire included)
Hopper Capacity 70 lbs.
Burn time
♦ 16-41 hours
Fuse, Control Board 5 Amp, 250 volt, 3AG *
Fuse, Igniter 6 Amp, 125 volt *
Heat Input (Max.)
♦ 14,000-38,000 BTU / hr
Overall Efficiency 81%
Emissions
♦ .9 gr / hr (varies w / size
and type of fuel) EPA ex-
empt
Ship Weight 270 lbs.
Room Air Blower
150 CFM; .8 Amps,
2175 rpm
Auger Motor 1 RPM; .4 Amps
Exhaust Blower
95 CFM: 1.0 Amps,
2880 rpm
Fastfire Igniter 4.35 Amps,
Options
Nickel or Gold Trim Kits
4” Quick Disconnect
Log Set

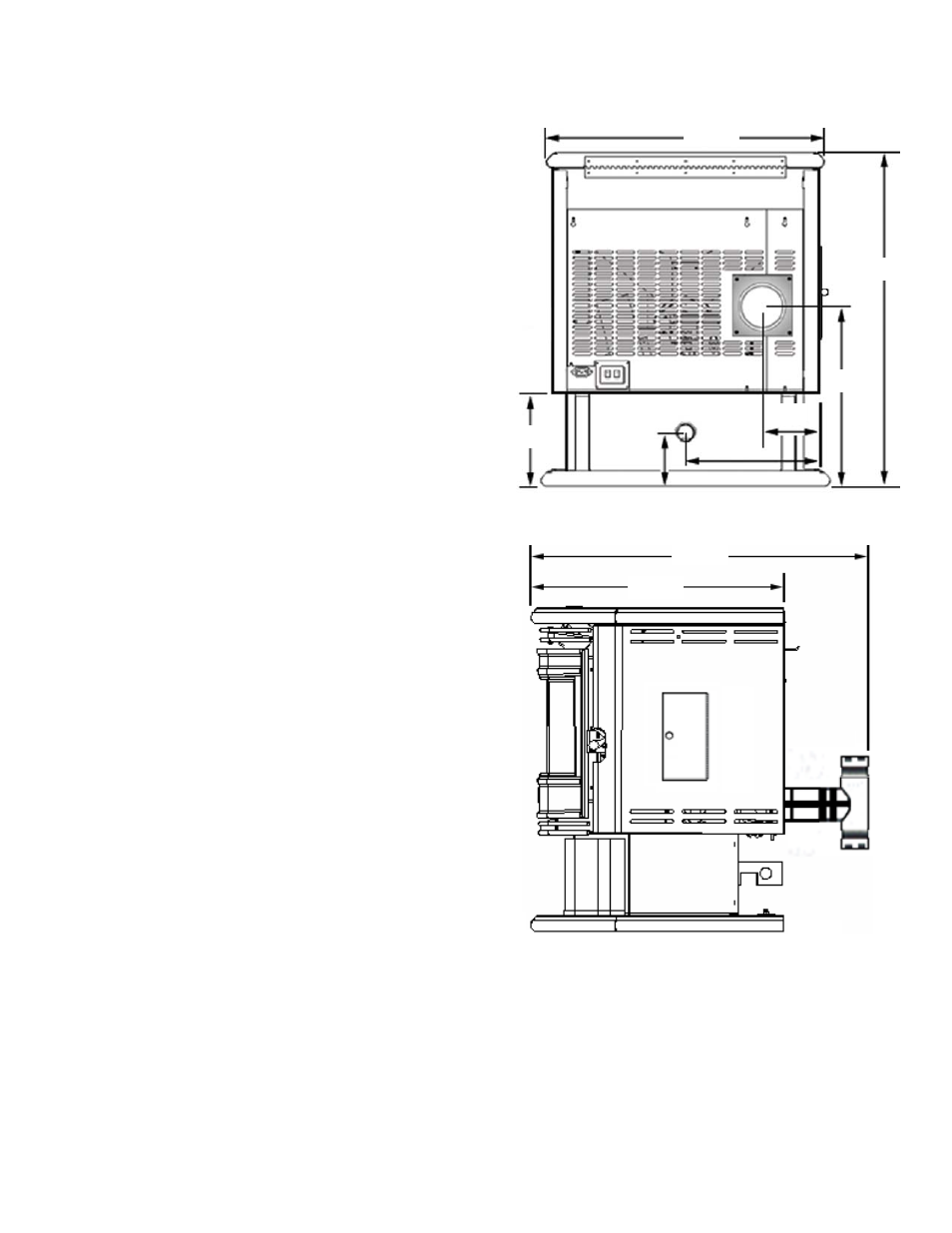

BACK VIEW
SIDE VIEW
Note: Dimensions shown are approximations only (+/- ¼”)
+ Non-combustible thermal rated floor protection must
be used when installed on carpet (see Floor Protection,
page 6). When installed at clearances less than 6”,
the floor protector is only required to extend to the
wall.
♦ Fuel delivery and burn times will vary depending
on size and type of fuel used. Estimated heat input
based on fuel value of 8400 BTU per lb.
* Fuses are rated as fast blow.
