Setting up the DSLPipe DSU
2-2 DSLPipe DSU (SDSL) User’s Guide

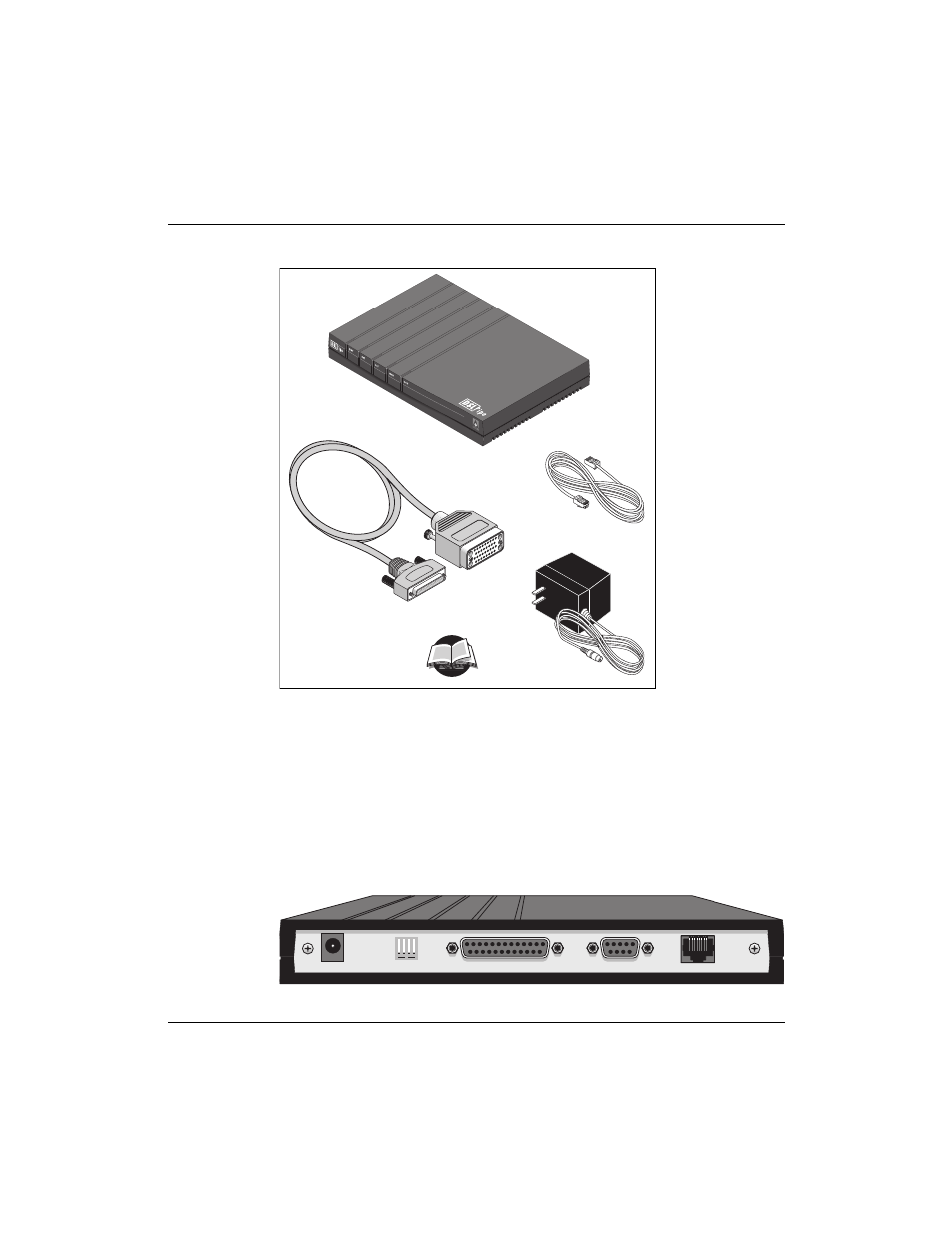

Figure 2-1. Package contents
Setting up the DSLPipe DSU
Figure 2-2 shows the DSLPipe DSU’s rear panel. To set up your DSLPipe DSU,
you use components located on the rear panel to set the data transmission rate,
configure the unit as either CPE or COE, and connect the necessary cables
Figure 2-2. DSLPipe DSU Rear Panel
1
2
3
4
5
V.35 TERMINAL WAN RATE DC IN
