D I S A S S E M B L Y P R O C E D U R E
First Memory Module
F I R S T
M E M O R Y
M O D U L E
R E M O V A L

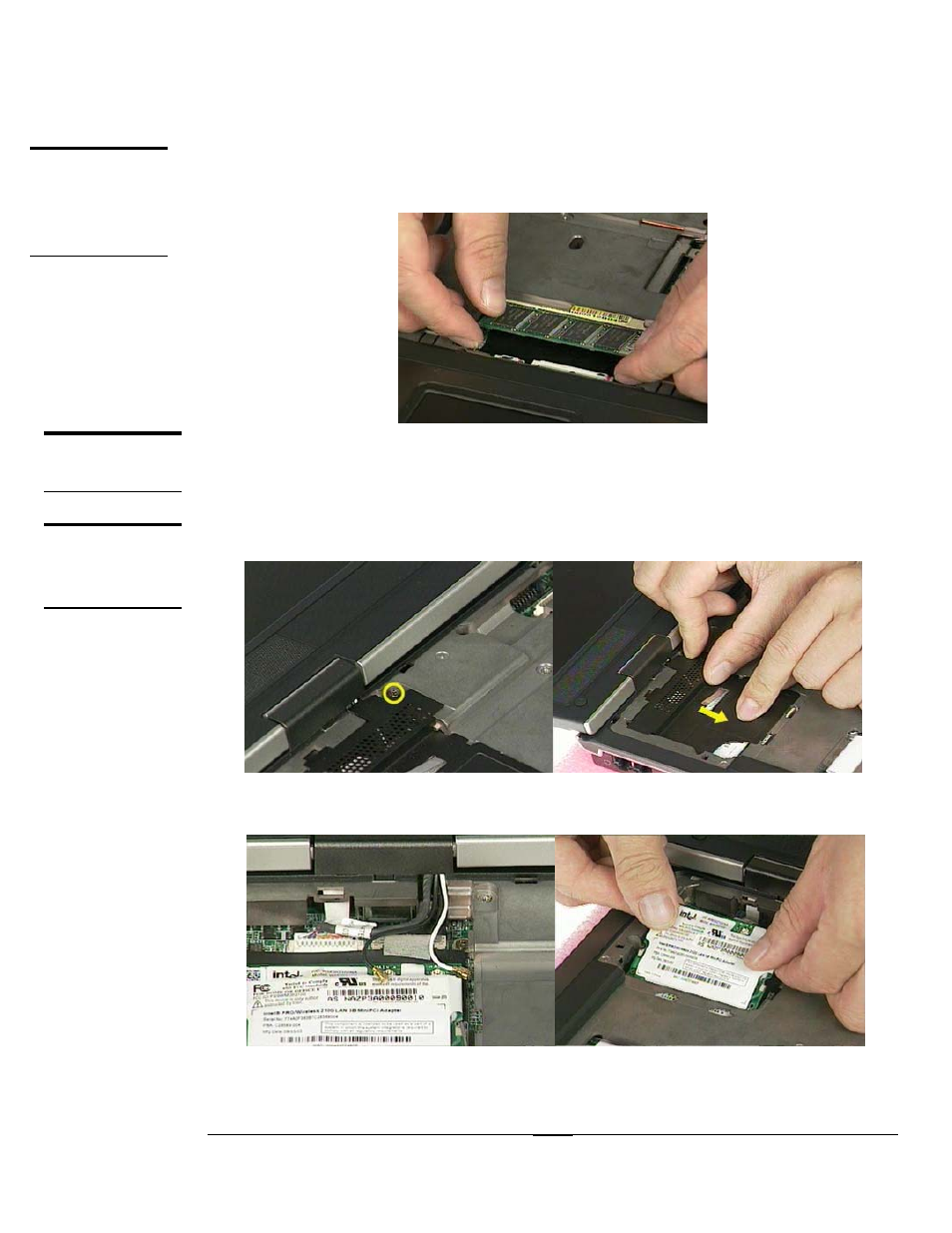

The first memory module is under keyboard. Open the two latches to pop up memory module at
45 degrees angle then pull it out .
Mini PCI Module
W I R E L E S S
L A N M O D U L E
This slot usually has Wireless LAN module when leaving the factory, this slot is for
optional system upgrade.
Removing Wireless LAN Module
W I R E L E S S
L A N
R E M O V A L
1. Remove 1 screw(M2*3L(K)), then take the mini-PCI cover off.
M2*3L
2. Disconnect 2 antenna cables, then open two latches to pop up wireless LAN module at 45
degrees angle and pull it out.
3 - 6
