26
Section 4: Maintenance & Lubrication
Z44 & Z52 (S/N 472620 -526170) Accu-Z Razor
®
Zero Turn Mowers 357-044M
4/19/10
Section 4: Maintenance & Lubrication
1.
Engine Oil Fill & Dipstick
2.
Fuel Filter
3.
Engine Air Cleaner
4.
Engine Oil Drain Plug
5.
Battery (located under seat)
6.
Fuel Tanks
7.
Gauge Wheel Bearing Zerk (2)
8.
Engine Oil Filter
9.
Deck Height Pivot Zerks (4)
10. Safety Interlock Switch (park)
(located under seat)
11. Drive Tire
12. Deck Belt
13. Pump Belt
14. Blades
15. Engine Air Intake Screen
16. Front Gauge Wheel Tires
17. Left/Right Fuel Tank Valve
18. Floor Panel
19. Deck Lift Pivot Zerks
20. Front Axle Center Pivot Zerk
(located under floor panel)

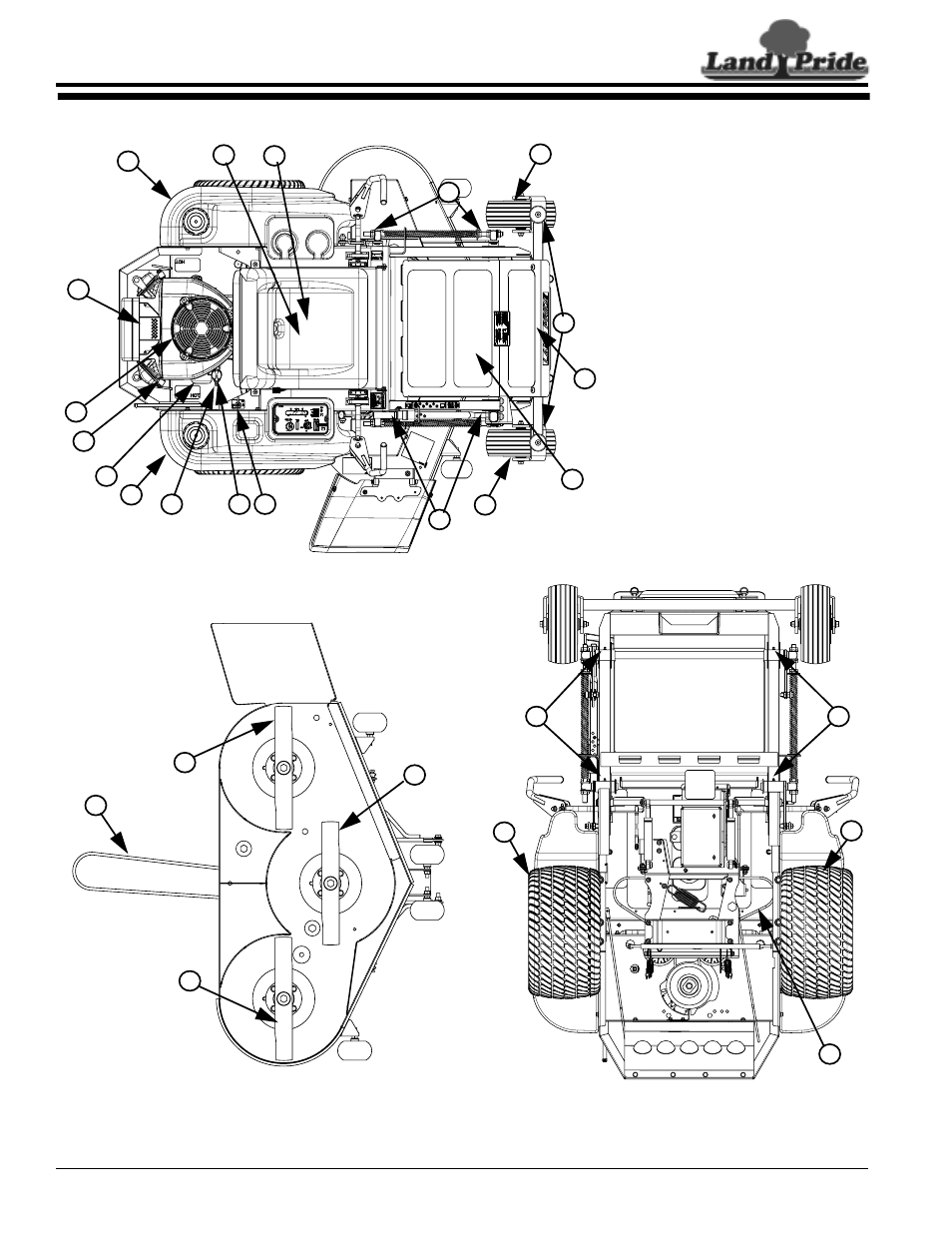

Figure 4-1
6
1
8
3
6
5
7
9
10
Deck Bottom View
Bottom View
Drive motors removed for clarity
2
15
16
17
Maintenance Locations
4
18
13
12
14
14
14
23643
23687
23653
9
7
11
11
Top View (Honda Engine Shown)
Oil fill & dip stick (1), fuel filter (2), Oil filter (8) and fuel tank valve (17)
are located on the left side for the Briggs & Stratton engine
19
19
20
