Optional Equipment
29
© Travis Industries
100-01165
4040806
Door Shell Installation
Part Numbers: Black # 99300195, Brass # 9930096, Pewter # 99300197

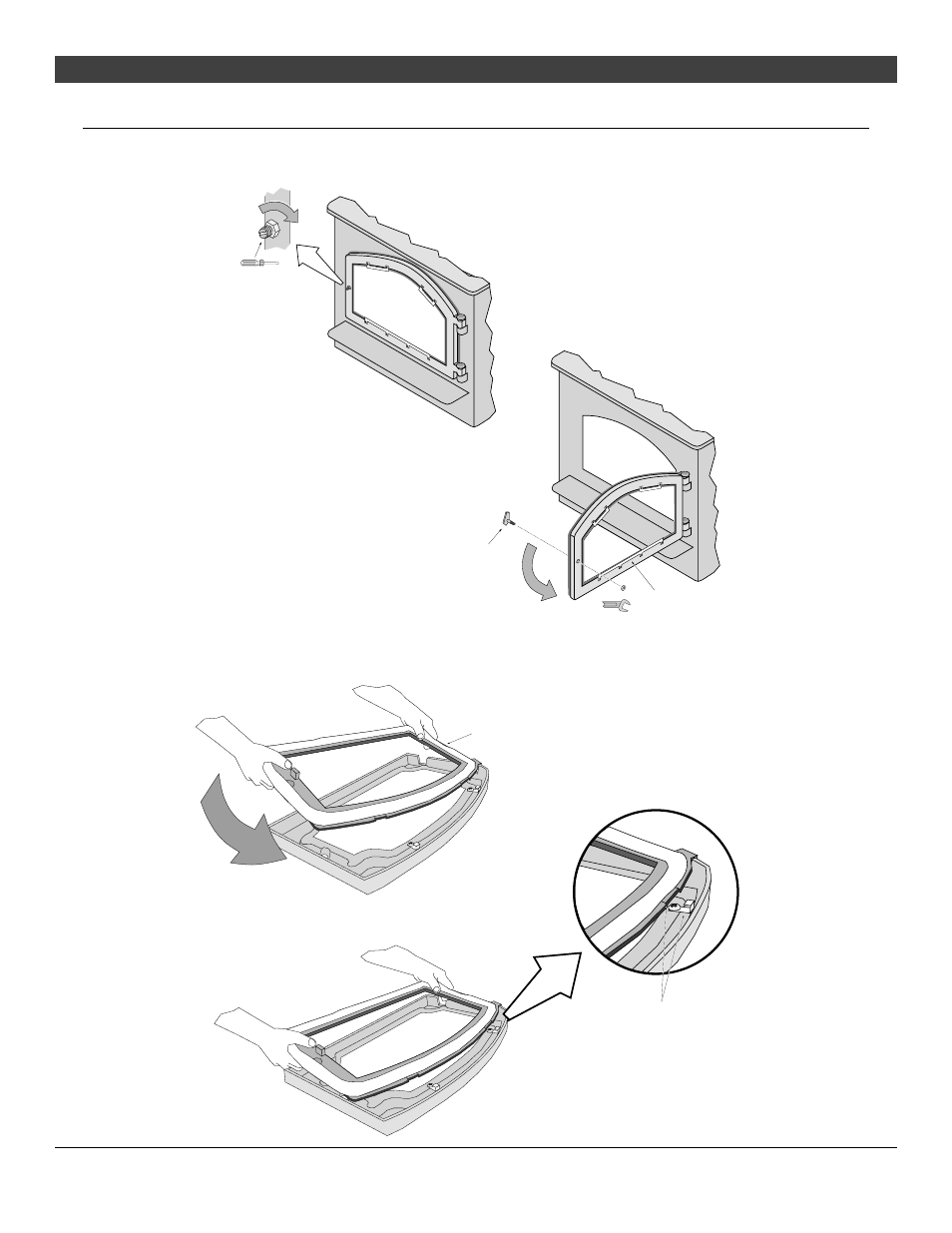

1
Remove the door retainer shipping latch following the directions below.
Standard
Screwdriver
Rotate this shaft
1/4 turn clockwise
until the door
unlatches.
Swing the door retianer open. Remove and
discard the shipping latch and nut.
9/16" Wrench
Shipping Latch
Door Retainer
2
Place the door shell face down on a non-scratching surface. Lift the door retainer off the hinges.
Insert the retainer into the door shell following the directions below. Note how the door shell is guided
into place
Door Retainer
Door Shell
The indent on the door retainer slides into
the clip on the door shell (on both sides).
