Maintaining Your Appliance 25
© Travis Industries 100-01165 4040806

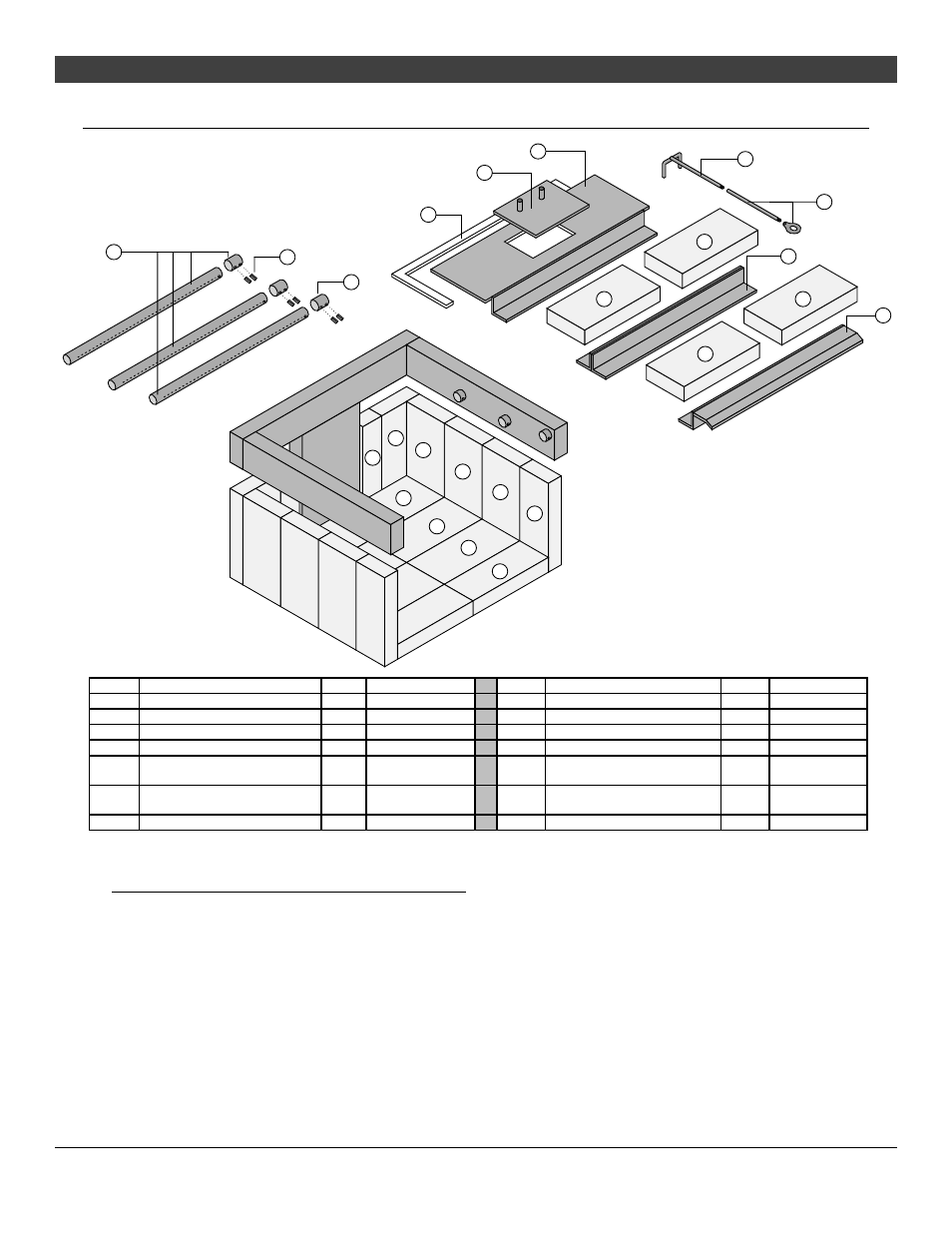

Firebox Parts
1
3
4
2
6
7
5
9
8
11
11
11
11
10
13
12
11
11
14
11
11
11
11
11
ID # Description Qty Part # ID # Description Qty Part #
1 Air Tubes & Sleeve 1 98900233 2 Air Tube Roll Pins 6 98900357
3 Air Tube Retainer Sleeve 3 98900356 4 Baffle Support, Front 1 99900251
5 Baffle Support, Rear 1 99900250 6 Damper Plate 1 98900322
7 Damper Slider 1 98900343 8 Gasket, Damper Plate 1 91001701
9 Damper Yoke 1 98900376 10 Damper Extension Rod with
Pull Ring 1 98900334
11 Brick - 9" x 4.5" un-cut 18 175-00001 (1)
98900102 (9) 12 Brick, Cut - 9"x 3.5" 2 251-00023
13 Brick, Cut – 9” x 3.687 2 251-00022 14 Brick, Cut – 9” x 2” 2 251-00021
Floor and Side Firebrick Removal & Replacement
Do not pry firebrick - they chip and crack easily. Remove the floor firebricks first. The side firebrick
are removed later because they are pinned in place by the floor firebrick. Clean the firebox prior to
replacing the firebrick.
