11
Design Guide
Remote antenna

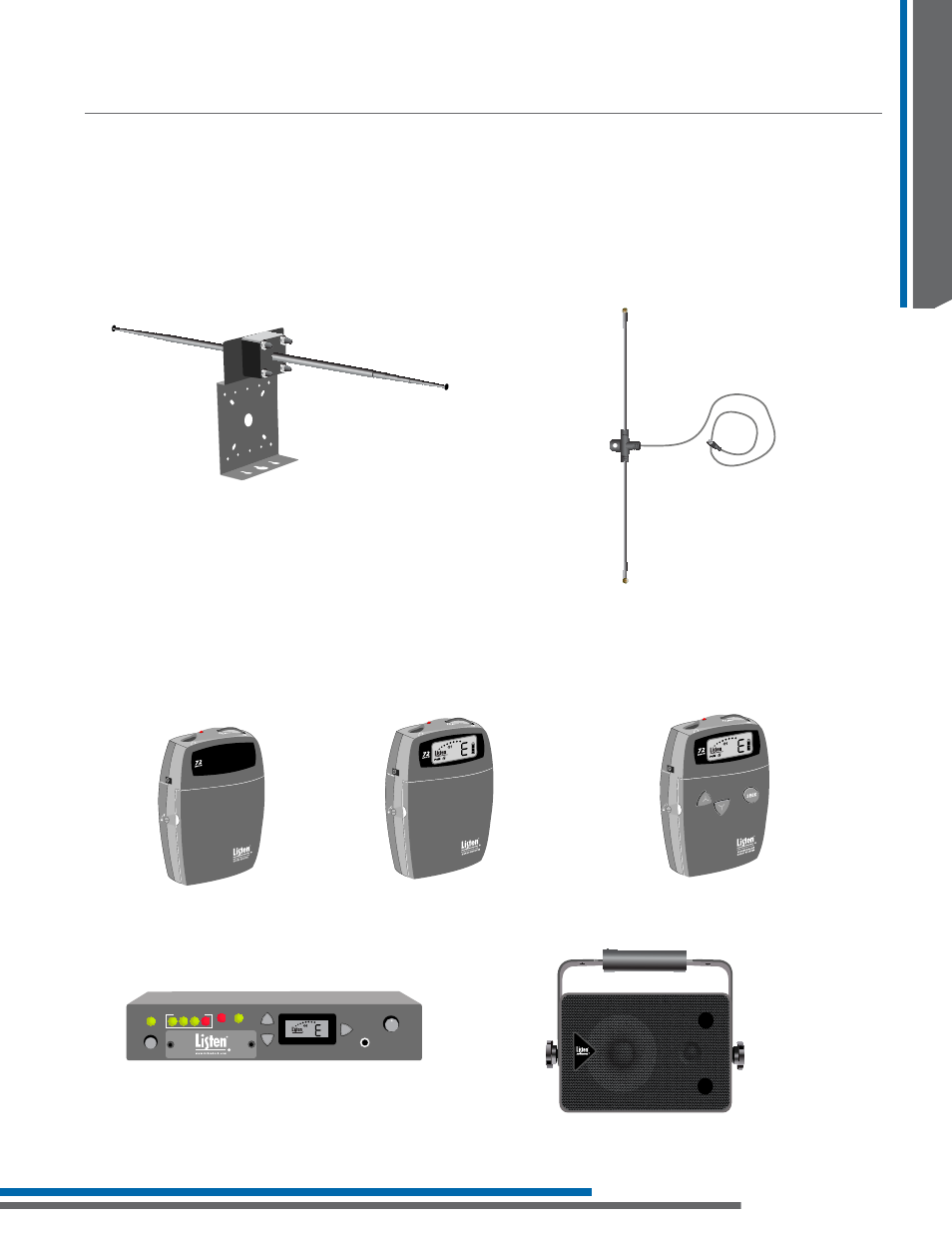

The LA-122 Universal Antenna Kit (72 and 216 MHz) and the LA-116 Coaxial Dipole Remote Antenna (72 MHz)
connect to the LT-803-072 and can be placed away from the transmitter for better range. They also allow the
unit to be rack mounted with the antenna remotely using the LA-326 Universal Rack Mounting Kit. Both the
LA-122 and LA-116 come with 25’ of black coaxial cable (RG-58).
ATTENTION: Long cable runs can result in signal degradation due to the “loss” characteristics of the cable.
Minimize cable runs as much as possible or use “low loss” RG-8 cable.
LA-122 Universal Antenna Kit (72 and 216 MHz)
Alternative Options for Value Package Setup
LR-300-072
Portable Digital FM Receiver
(72 MHz)
LR-400-072
Portable Display FM Receiver
(72 MHz)
LR-500-072
Portable Programmable Display FM Receiver
(72 MHz)
LR-100-072
Stationary FM Receiver/ Power Amplifier
(72 MHz)
Headphone
Speaker
Seek
Channel RF Power Up
Down
Squelch Mute
Power
LR-100
Output Level
Antenna
Power
Output
Aux
Battery Control
RX Only
RX + AUX
RX or AUX
Line
Mic
Sp
ea ke r
12 VD
C
G ro un
d
U p D ow
n
M ut e
Co m
m on
+ + -
Audio Output Auxiliary Input
Power
Antenna Battery
SQ
Seek
Channel
Charge Off On
Ext Int
On Off
ALK NiMH
15VAC or 12VDC
EQ
Low Mid High
In
Auxiliary
Out
Battery Compartment
Instructions:
1. Install batteries with correct polarity as
observed on the battery holder.
2. Place BATTERY switch in “ALK” for
ALKALINE batteries and “HiMH” for NiMH
rechargeable batteries.
WARNING! Do not attempt to charge
batteries that are not RECHARGEABLE.
Place battery switch in ALK position to
prevent batteries from being charged.
DAMAGE TO THE EQUIPMENT AND
SERIOUS INJURY COULD
OCCUR IF YOU ATTEMPT TO
CHARGE NON-RECHARGEABLE
BATTERIES!
External Antenna
To use the external
antenna, select “EXT”
on the Antenna switch
CAN: 4011104425A G
This device complies with part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation. This Class B digital
apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Listen Support: 1.800.330.0891. +1.801.233.8992, www.ListenTech.com
LR-600-072
Wireless FM Receiver/Speaker
(72 MHz)
Receiver Options
Listen offers a variety of portable and stationary receivers. Each receiver offers different features to help further cus-
tomize your FM system.
ATTENTION: The SQ “Super Quiet” function must be turned OFF for better audio quality when using the LT-803-072
contained in this Value Package.
LA-116 Coaxial Dipole
Remote Antenna (72 MHz)
