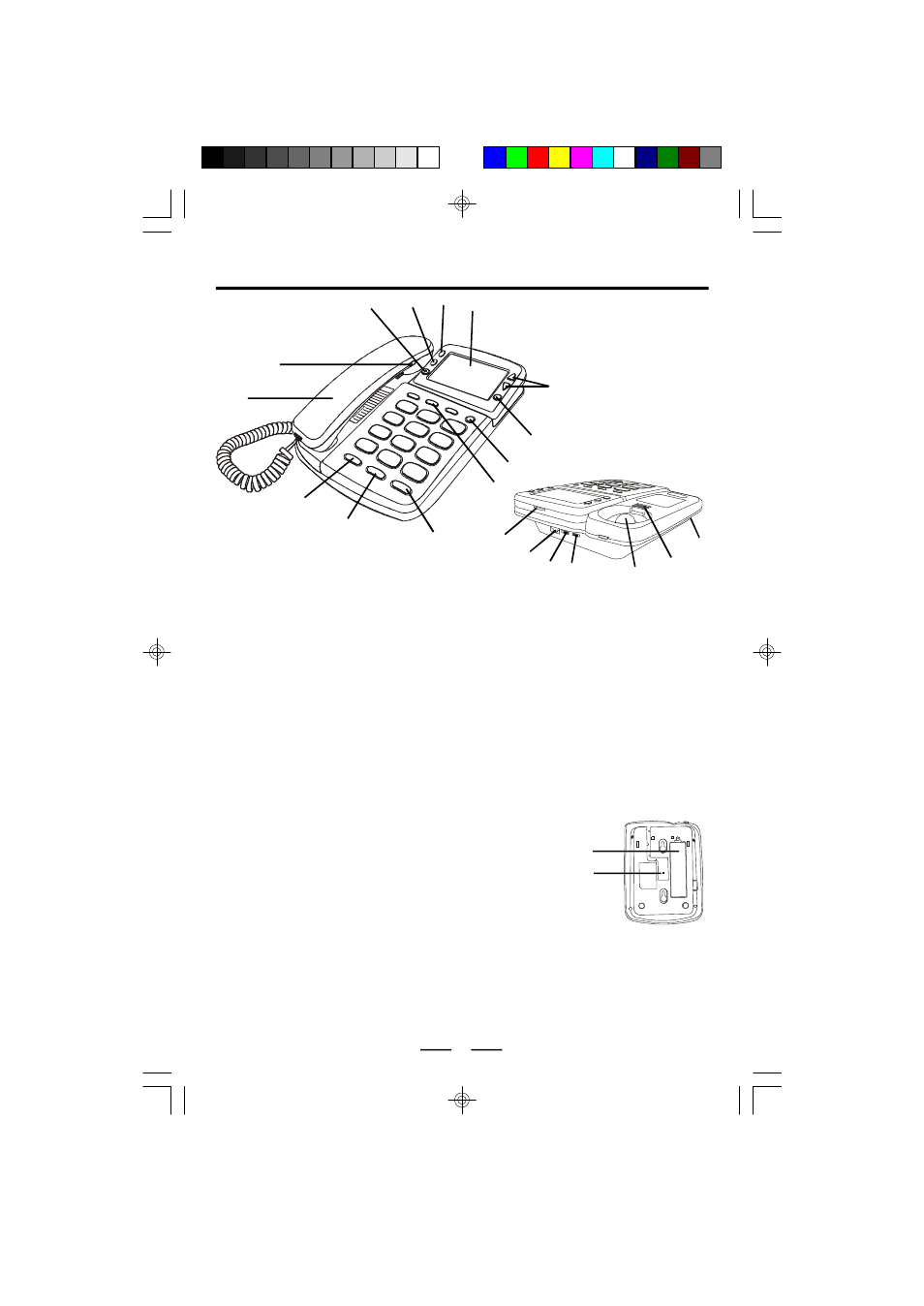

LOCATION OF CONTROLS
1. COMFORTABLE HANDSET - for comfortable use even during long calls.
2. HANDSET VOLUME CONTROL - adjusts the volume of handset receiver.
3. NEW CALL INDICATOR - flashes when new calls have come in.
4. CALL BACK BUTTON- used for calling back from the caller ID list.
5. DELETE BUTTON - erases an individual record or all records from the Caller ID Memory, also used
to accept time, date, and area code during initial setup.
6. JUMBO CALLER ID DISPLAY - shows the caller’s name, number, and calling time & date (and more).
7. UP/DOWN BUTTONS - review all calls received.
8. DISPLAY BUTTON- adjusts the LCD contrast level.
9. STORE BUTTON - used for storing numbers into the one-touch or two-touch Speed Dial memories.
10. ONE TOUCH SPEED DIAL BUTTONS - allow you to store numbers and quickly dial them from memory.
11. REDIAL/PAUSE BUTTON - get a new dial tone, then press this button to dial the last dialed number
(also if you need a pause for PABX).
12. FLASH BUTTON - press to switch calls for call waiting or get a new dial tone.
3
13. AUTO BUTTON - allows you to store & dial numbers from 10 two-touch
memory locations.
14. DISPLAY TAB - used to adjust the position of the display.
15. LINE CORD JACK - insert one end of the telephone line cord here
when connecting the telephone.
16. RINGER HI/LOW/OFF SWITCH - adjusts the volume of the ringer or
turns off ringer for undisturbed privacy.
17. TONE/PULSE SWITCH - selects the desired dialing mode.
18. HOOK SWITCH - press down to release the line, hold it down and
then release it to get a new dial tone or for call waiting.
19. HANDSET CLIP - holds the Handset in place when the telephone is
mounted on a wall.
21
BACK OF THE PHONE
20. COILED CORD JACK - Insert COILED CORD from HANDSET here.
21. BATTERY COMPARTMENT - place 4 size “AA” alkaline batteries inside according to the polarities
as shown inside the battery compartment.
22. RESET SWITCH - to reset your phone by inserting a pin into the small hole on the back of the phone.
1
2
3
4
5
6
7
8
9
10
11
12
13
22
14
15
16 17
18
19
20
