Assembly

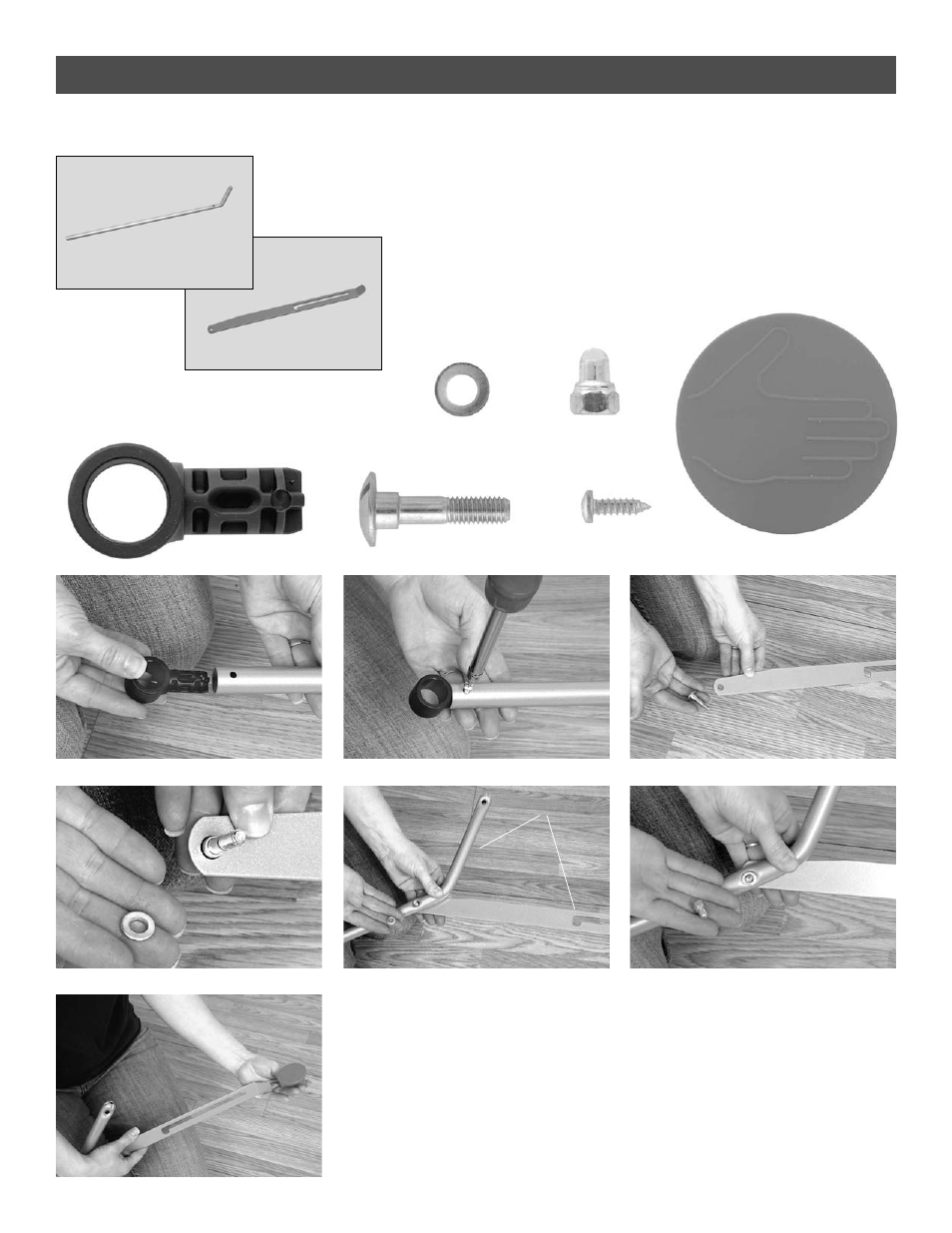

Step 8
Screw eyelets to four Jbars.
Assemble safety levers to two of the Jbars.
Slide handgrip onto safety lever.
Note the orientation of the slot in the safety
lever and the Jbar as shown in photo E.
4 Required
dia 12x6
2 Required
m6
4 Required
2 Required
m6x30
2 Required
A
B
C
D
E
F
G
4 Required
3.9x13
note position
14
