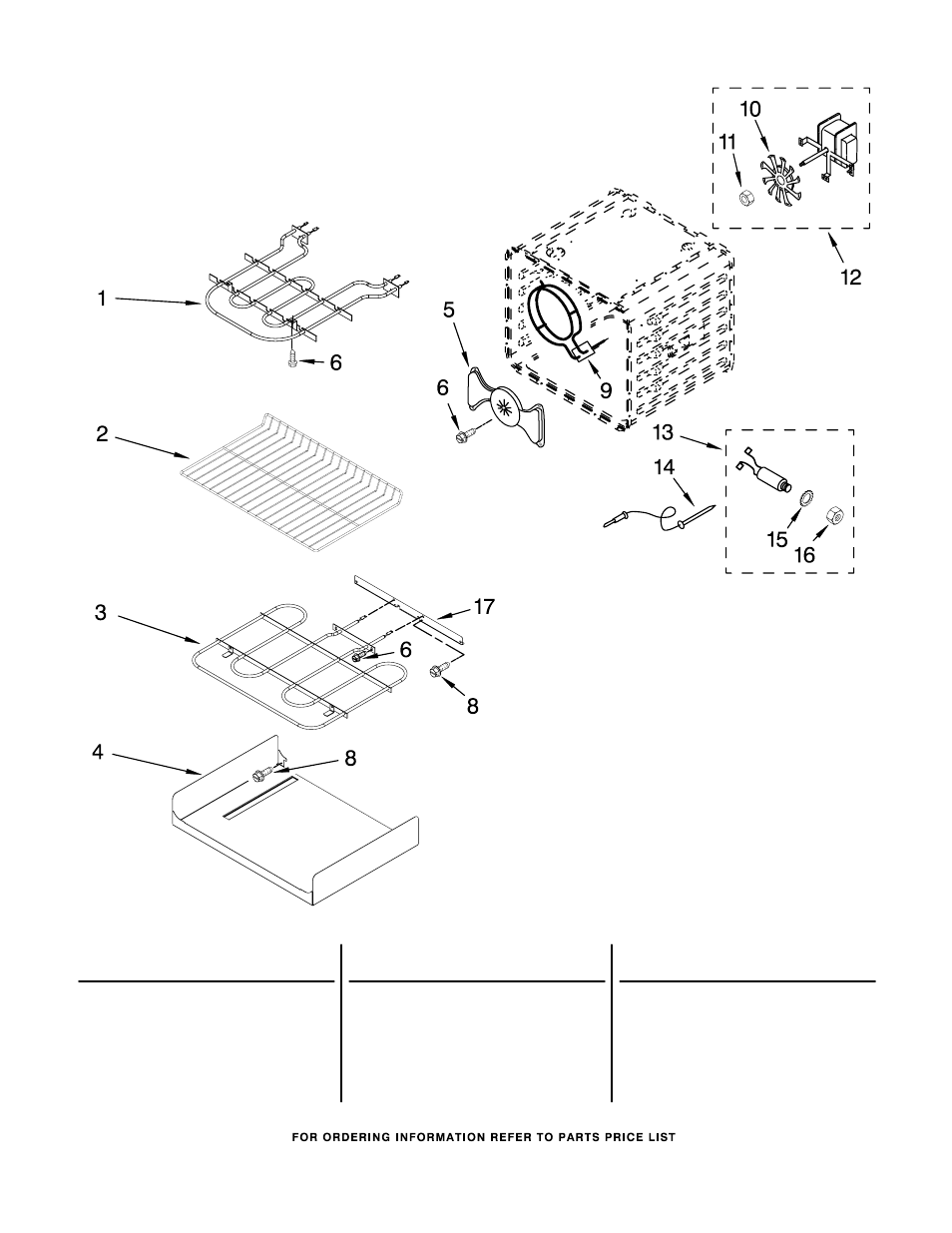

INTERNAL OVEN PARTS
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
9
For Models: KDSS907SSS01
(Stainless)
W10122852
1
9760774 Element, Broil
2
4448717 Rack, Oven
3
9760768 Element, Bake
4
4455037 Tray, Bake Hidden
5
9756690 Cover, Fan
6
4449154 Screw
8
4449809 Screw
9
9760769 Element,
Convection
10
4452226 Blade, Fan
11
4452227 Nut
12
4451583 Motor, Convection
13
9755543 Jack, Meat Probe
14
9755542 Probe, Meat
15
9755547 Lock Washer
16
9755546 Hex Nut
17
4450039 Cover, Bake Tray
