English 7

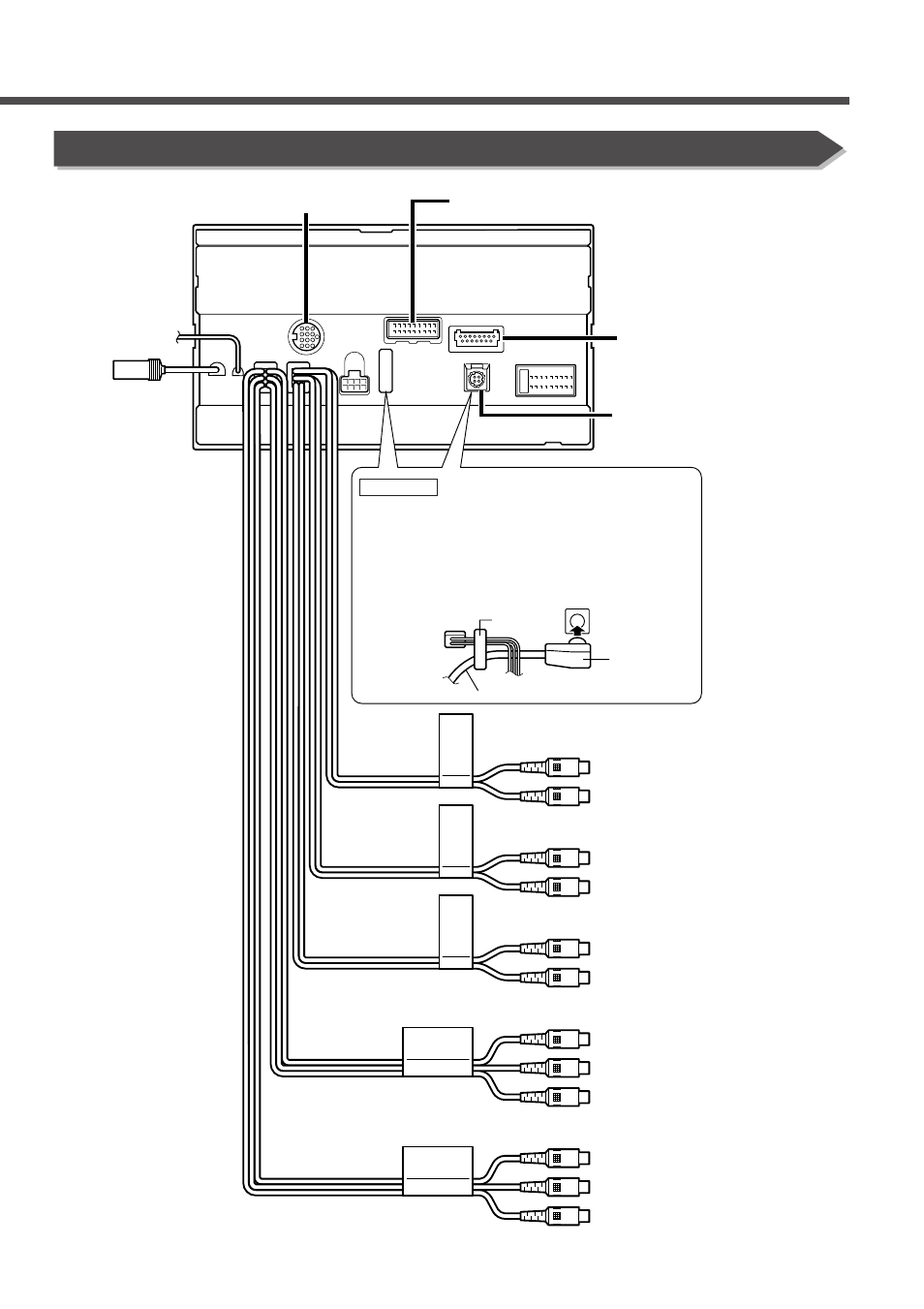

System Connection
REAR
FR
ONT
AV IN
AV OUT
W
OOFER
SUB
•
Audio/Visual input
Visual input (Yellow)
Audio left input (White)
Audio right input (Red)
•
Audio/Visual Output
Visual output (Yellow)
Audio left output (White)
Audio right output (Red)
•
Sub-woofer (Mono) Preout
Audio left output (White)
Audio right output (Red)
•
Rear Preout
Audio left output (White)
Audio right output (Red)
•
Front Preout
Audio left output (White)
Audio right output (Red)
Wire an optical cable after fixing it with the clamp
on the back of the unit.
Do not bend the optical cable within a minimum
radius of 30 mm, or it may be damaged.
When you install the unit, ensure that the optical
cable is not stuck between the unit and the
vehicle parts.
2CAUTION
To Navigation System To TV Tuner unit
To DSP unit
Optical input for
DSP unit
To Disc Changer
etc.
optical cable
clamp
≥30R
